Product Overview
Brief introduction

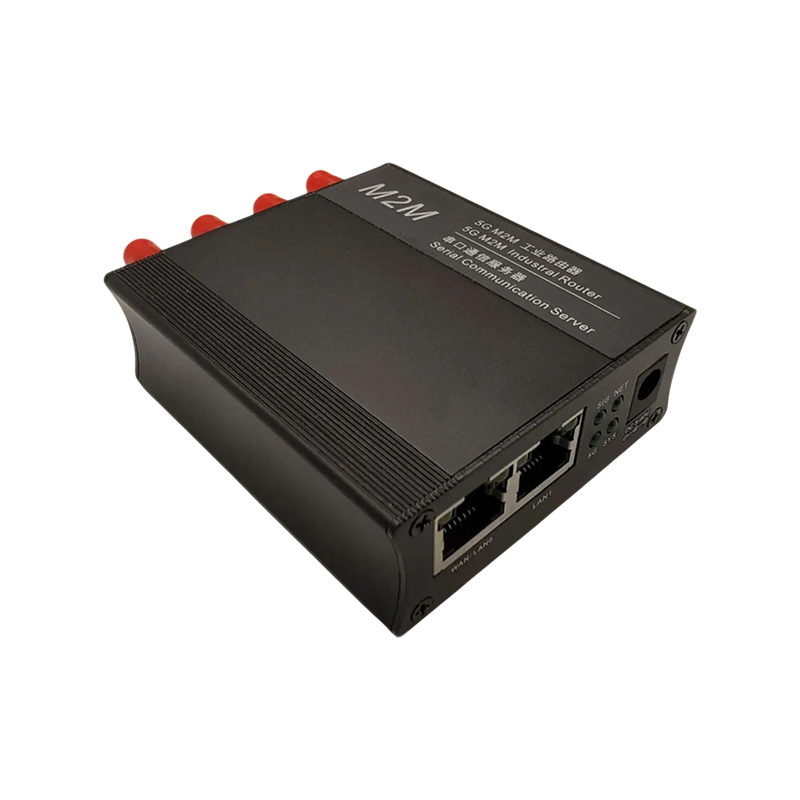

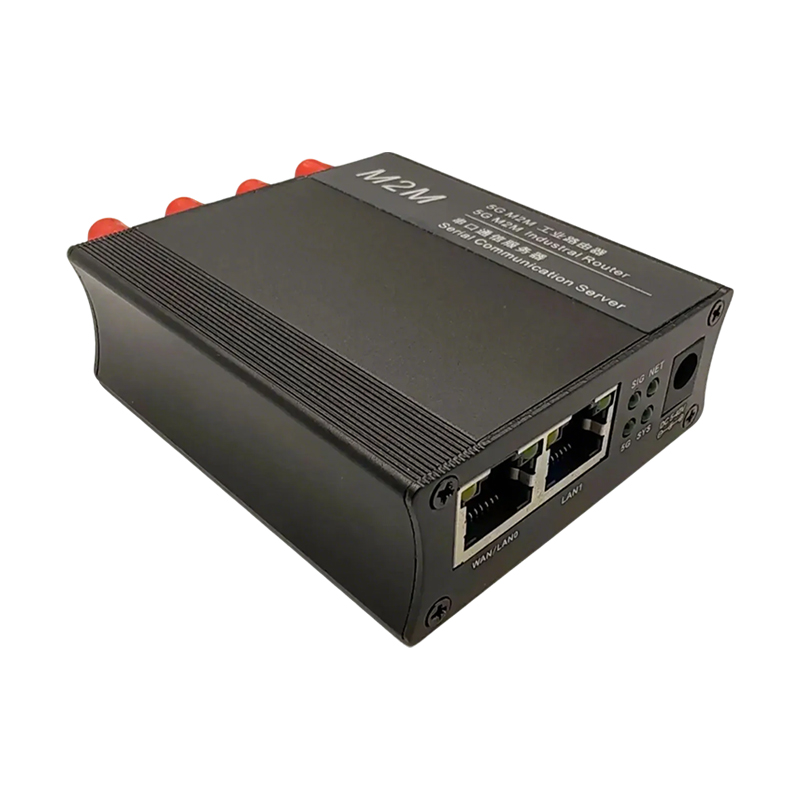

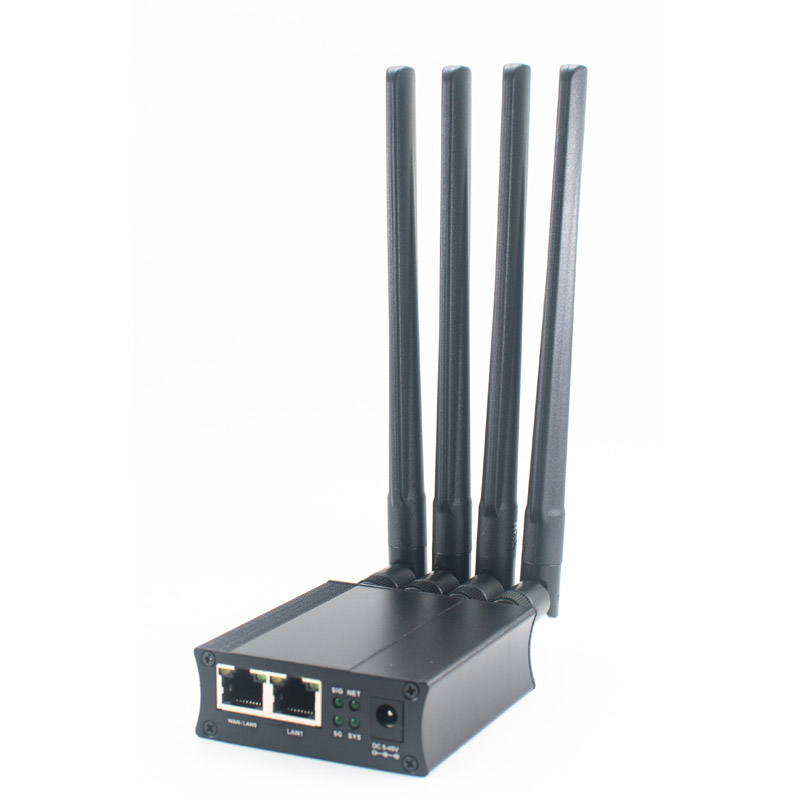

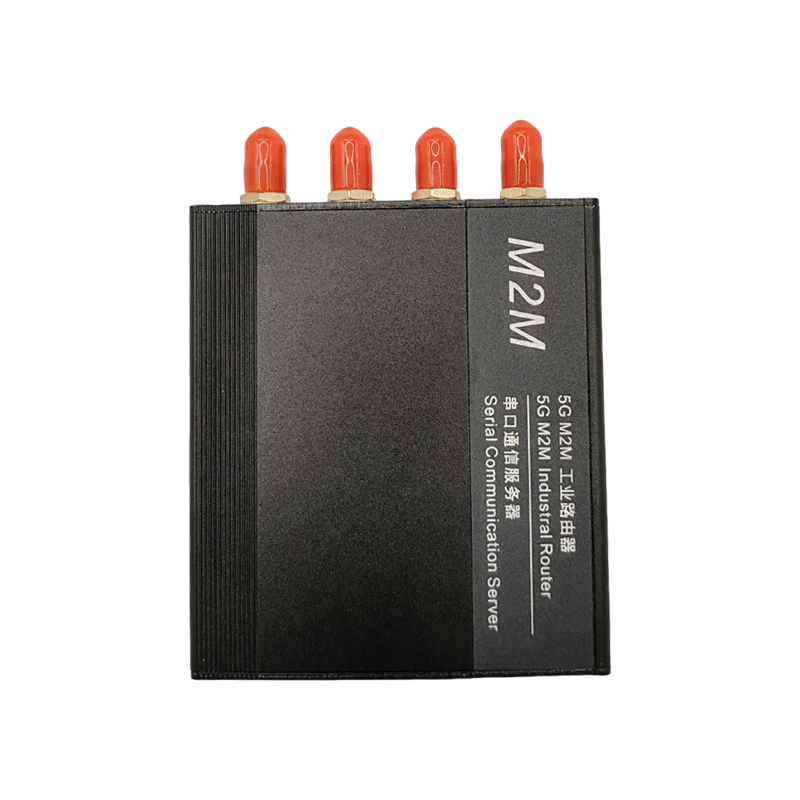

This router is an industrial IoT communication device that is fully compatible with 5G/4G/3.5G/3G/2.5G networks. It features industrial grade protection, wide temperature, and wide voltage design, making it easy to build high-speed and stable wireless transmission networks. Provide wireless long-distance data transmission services to users using public NR, LTE networks (or VPDN proprietary networks).

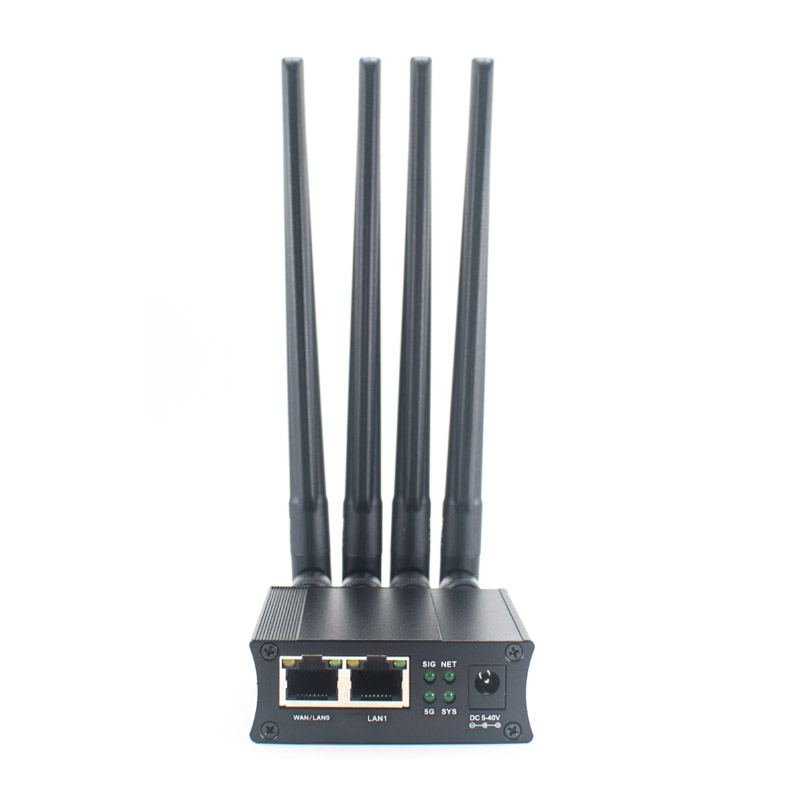

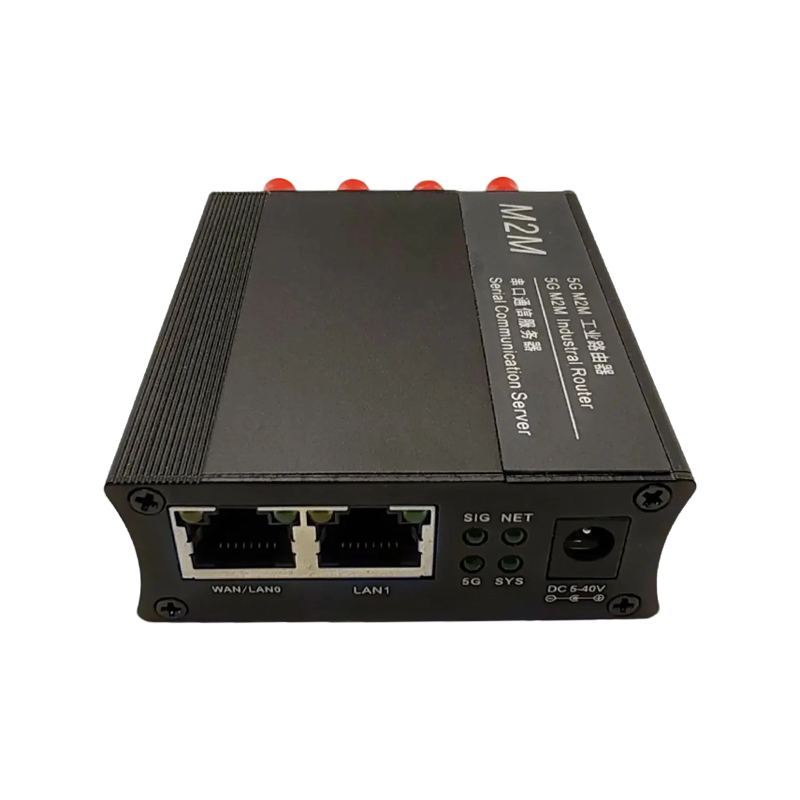

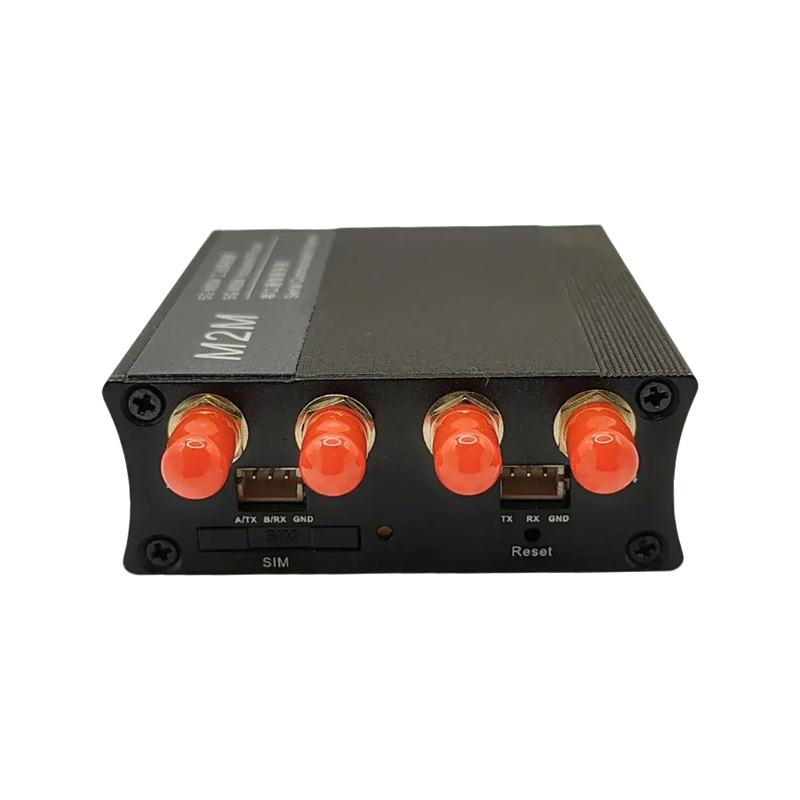

This router adopts a high-performance industrial grade 32-bit dual core communication processor and industrial grade communication module, with an embedded real-time operating system as the software support platform. It also provides 2 RS232/485, 1 Ethernet LAN, and 1 Ethernet WAN interface, which can simultaneously connect serial port devices and Ethernet devices to achieve transparent data transmission and routing functions.
Application area
Industries that require remote data transmission, such as industrial control, electricity, petroleum, coal mining, finance, communication, public security, heating, meteorology, water conservancy, transportation, and municipal services.
Documentation
Our company reserves the right to modify and improve the products described in this manual without prior notice; We reserve the right to revise or retract this document at any time.
This manual is only intended as a guide for use, and all statements, information, and recommendations in this manual do not constitute any express or implied warranties.
If there are any unclear words in the document, please consult our company or agents or sellers in a timely manner.
Product Characteristics
Software
function
|
Network interconnection |
|
|
network access |
3G/4G/5G dial-up internet, supporting APN and VPDN. Built in with hundreds of global APN information, the router can automatically match internet access after inserting a SIM card |
|
Access authentication |
Support CHAP/PAP/MS-CHAP/MS-CHAPV2/none |
|
Network standard |
Support NR/LTE/WCDMA(HSPA+)/TD-SCDMA/EVDO/EDGE/GPRS |
|
LAN Protocol |
Support ARP, Ethernet，STP |
|
WAN Protocol |
Support static IP, DHCP, PPPoE，PPTP,L2TP |
|
Number of supported users |
wired：253 |
|
network protocol |
|
|
IP application |
Support tcping, ping, traceroute, DHCP server/wireless relay/client, dynamic domain DDNS, telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, IPv6 |
|
ip routing |
Support static routing and IGMP Proxy |
|
TTL |
Customize the TTL value of the client host |
|
network security |
|
|
firewall |
Support full state packet inspection (SPI) to prevent denial of service (DDoS) attacks |
|
Support filtering multicast/Ping packets, access control list (ACL) |
|
|
DMZ, MAC filtering, whitelist/blacklist access control |
|
|
Support NAT, PAT, DMZ, port mapping, virtual servers |
|
|
AAA |
Support local authentication and Radius |
|
data security |
支持 L2TP、PPTP、OpenVPN、CA |
|
Reliability |
|
|
Backup function |
Interface backup, 4G/5G, wired network disconnection mutual backup |
|
Link online detection |
4G/5G status detection, automatically redial when disconnected or signal is poor |
|
Definition of interval time for VPN disconnection and redialing, and control of dialing frequency |
|
|
WAN sends heartbeat detection packet for automatic connection upon disconnection |
|
|
Scheduled restart |
|
|
Bridge with multiple gateways |
Supports multiple LAN settings, the router has two gateways (two internal networks) |
|
Internet of Things |
|
|
DTU |
Supports TCP, UDP transparent transmission mode, TCP Server mode, and instruction mode |
|
Secondary development |
|
|
shell script |
Custom script function, implementing custom management of routers and related functions |
|
Interface |
The router provides a secondary development parameter interface (HTTP), such as obtaining router status, setting router related functions, etc. Convenient for mobile app, mini program, and cloud server development |
|
network management |
|
|
collocation method |
Supports local or remote HTTP, HTTPS, Telnet, SSH methods, and internal network penetration methods |
|
Upgrade method |
Support local or remote WEB, TFTP, FTP, SFTP server, intranet penetration remote |
|
Log function |
Support local system logs and remote logs. Important logs saved in case of power failure |
|
Support saving logs in case of power failure |
|
