4G product series
  • KB8010 4G DTU
  • KB8010.jpg

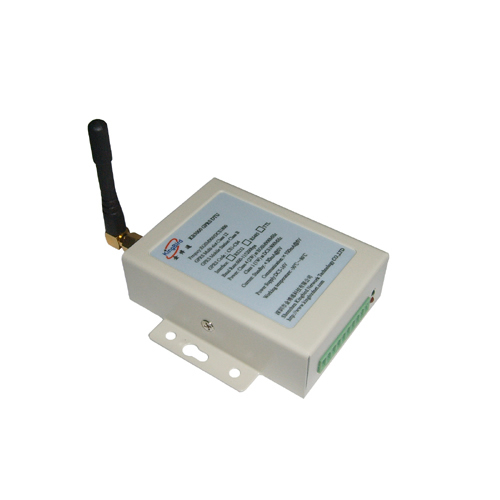

    KB8010 4G DTU

    Features:

    Frequency band:
    Mobile: LTE-TDD: B38 / B39 / B40 / B41
               LTE-FDD: B8
               TD-SCDMA: Not supported
               GSM: not supported
    Telecom: LTE-FDD: B1 / B3 / B5
               LTE-TDD: B41
    China Unicom: WCDMA: B1 / B8
               LTE-FDD: B1 / B3 / B8
               LTE-TDD: B41

    Hotline:
    +86-0755-82556825

    Standard industrial grade products, EMC anti-interference design, strong ability to adapt to the environment;
    Provide a variety of reset mechanisms, which can be controlled by software to achieve a perfect industrial security mechanism;
    Support wireless remote upgrade, can be upgraded through DTU program through the server;
    Support 4G full Netcom;
    Advanced and strict data communication protocol with error correction and encryption;
    The serial data (RS232 / RS485 or TTL) of the user equipment can be sent to the server in the Internet;
    IP automatic registration mechanism can realize multiple service modes and build a complete ultra-large-scale wireless application system;
    Remotely modify DTU parameters: support network to modify DTU parameters;
    Powerful server software support, server software application for many years, powerful, mature and perfect;
    Industrial temperature range: Working temperature: -30 ℃ -80 ℃, communication is not affected at -30 ℃

    Frequency band:
    Mobile: LTE-TDD: B38 / B39 / B40 / B41
             LTE-FDD: B8
             TD-SCDMA: Not supported
             GSM: not supported
    Telecom: LTE-FDD: B1 / B3 / B5
              LTE-TDD: B41
    China Unicom: WCDMA: B1 / B8
              LTE-FDD: B1 / B3 / B8
              LTE-TDD: B41
    rate:
    LTE-TDD: Maximum 150Mbps (DL) / maximum 50Mbps (UL)
    LTE-FDD: Maximum 150Mbps (DL) / maximum 50Mbps (UL)
    WCDMA: Max 42Mbps (DL) / Max 5.76Mbps (UL)
    TD-SCDMA: Maximum 4.2Mbps (DL) / Max 2.2Mbps (UL)
    Power consumption:
    Off mode: 20uA
    Sleep mode: 3mA (average)
    Sensitivity:
    FDD B1: -96dBm (10M)
    FDD B3: -96dBm (10M)
    FDD B5: -96dBm (10M)
    FDD B8: -96.5dBm (10M)
    FDD B38: -96dBm (10M)
    FDD B39: -97dBm (10M)
    FDD B40: -96.5dBm (10M)
    FDD B41: -96dBm (10M)
    WCDMA: B1: -110dBm
    WCDMA: B1: -111dBm
    TDSCDMA: B34: -109dBm
    TDSCDMA: B39: -109dBm
