Physical       Specification

Description

 Performance      • Switching Capacity: 20Gbps        • Throughput: 14.88Mpps             • MAC Capacity: 8K

 Hardware            • Flash Memory: 128MB                • DRAM: 1GB

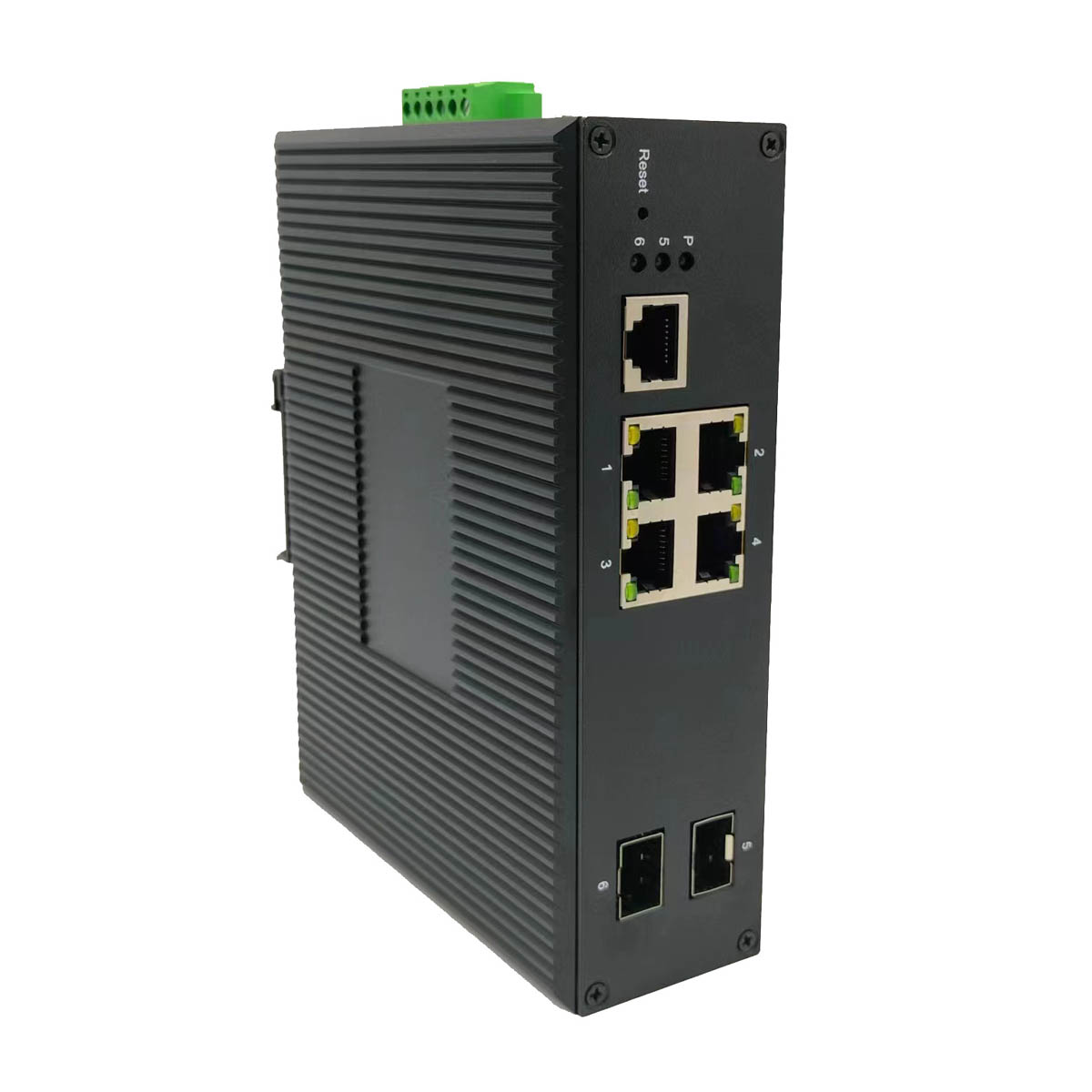

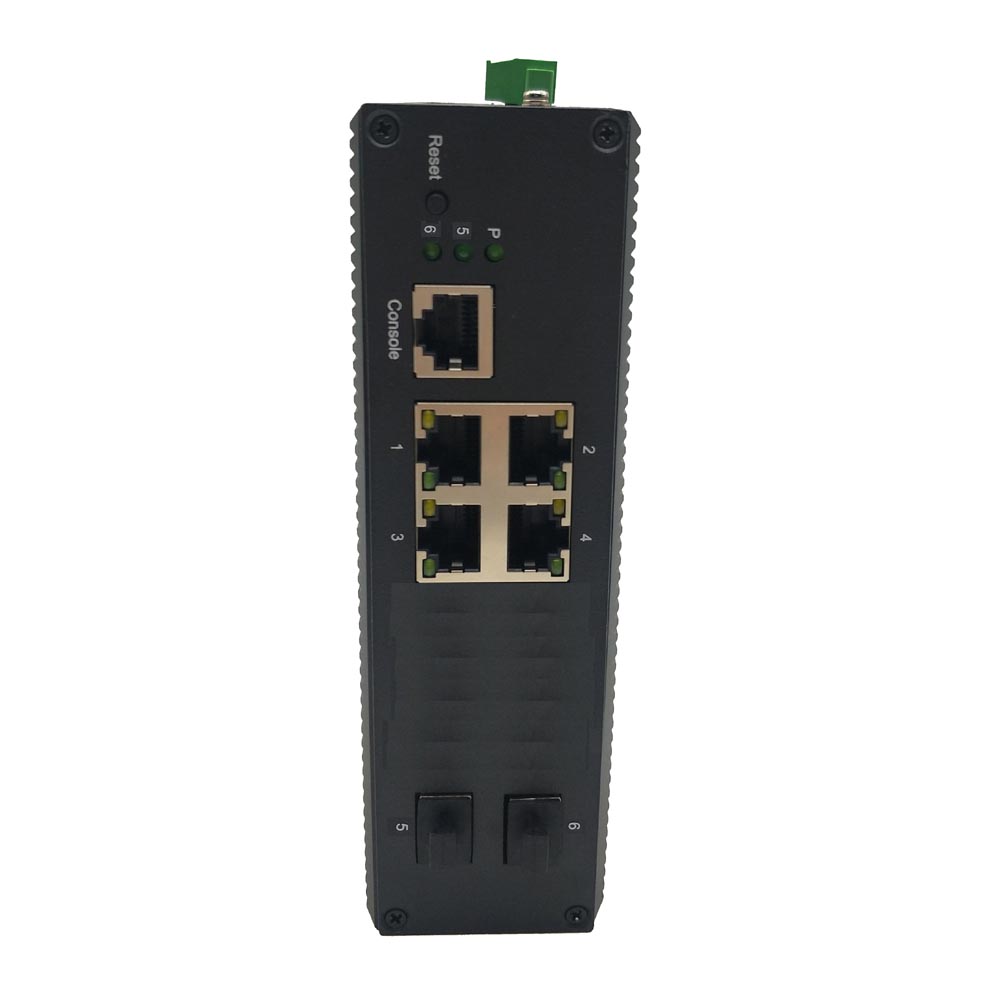

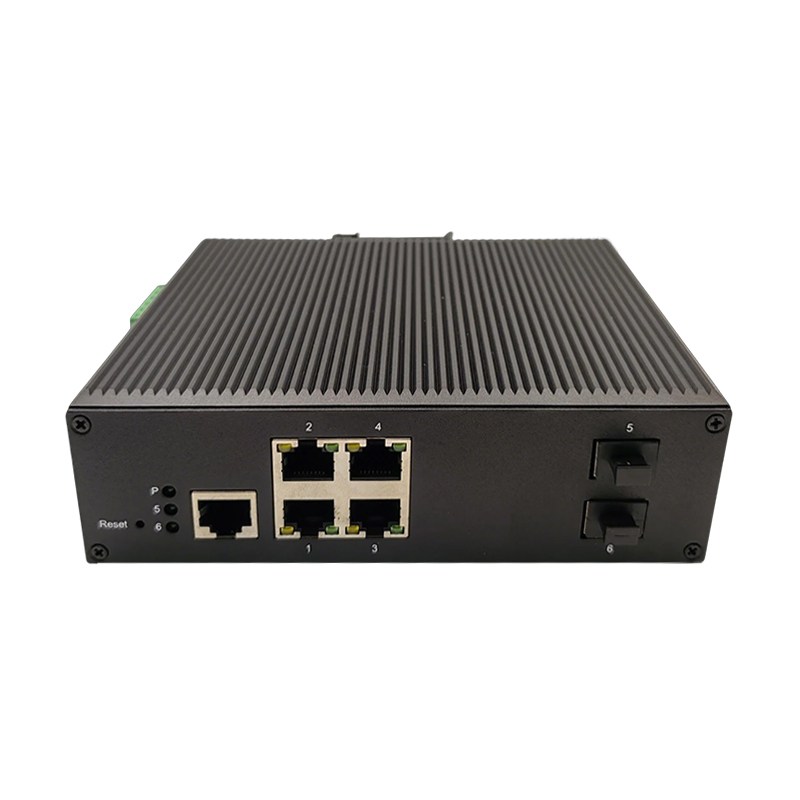

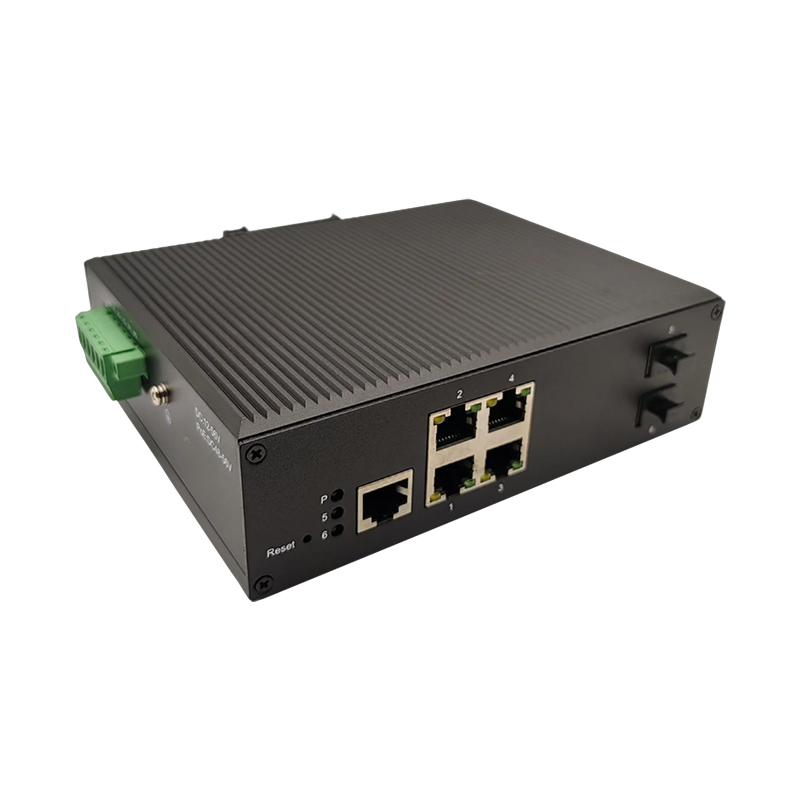

 Interface

• 4-Port 10/100/1000M Base-T

 • 1-Port Console(With RJ-45)

• 2-Port 100/1G Base-R(SFP) Port

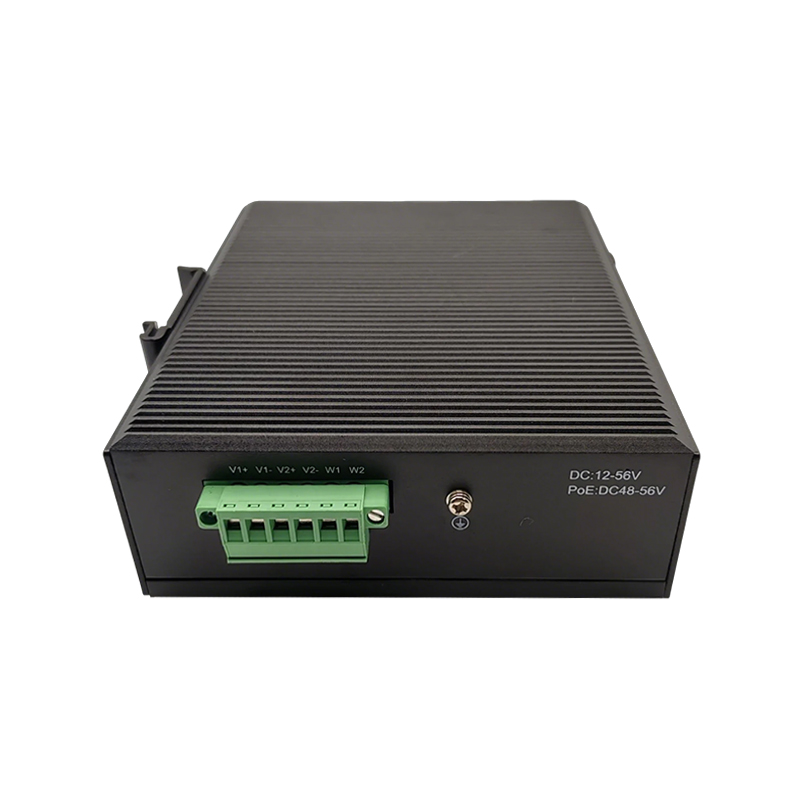

 Power

      • Input:DC48-56V

• Power Consumption: 10W

 PoE

• Max PoE Power Budget: 120W

• 15.4W simultaneously on 4 ports

• Support 4-Ports 10/100/1000 802.3af/at Base-T,

30W simultaneously on 4 ports

 Environmental

• Operating Temperature: -40~85℃

• Storage Temperature: -40~85℃

• Operating Humidity: 20~85%RH (Non-Condensing)

• Storage Humidity: 5~95%RH (Non-Condensing)

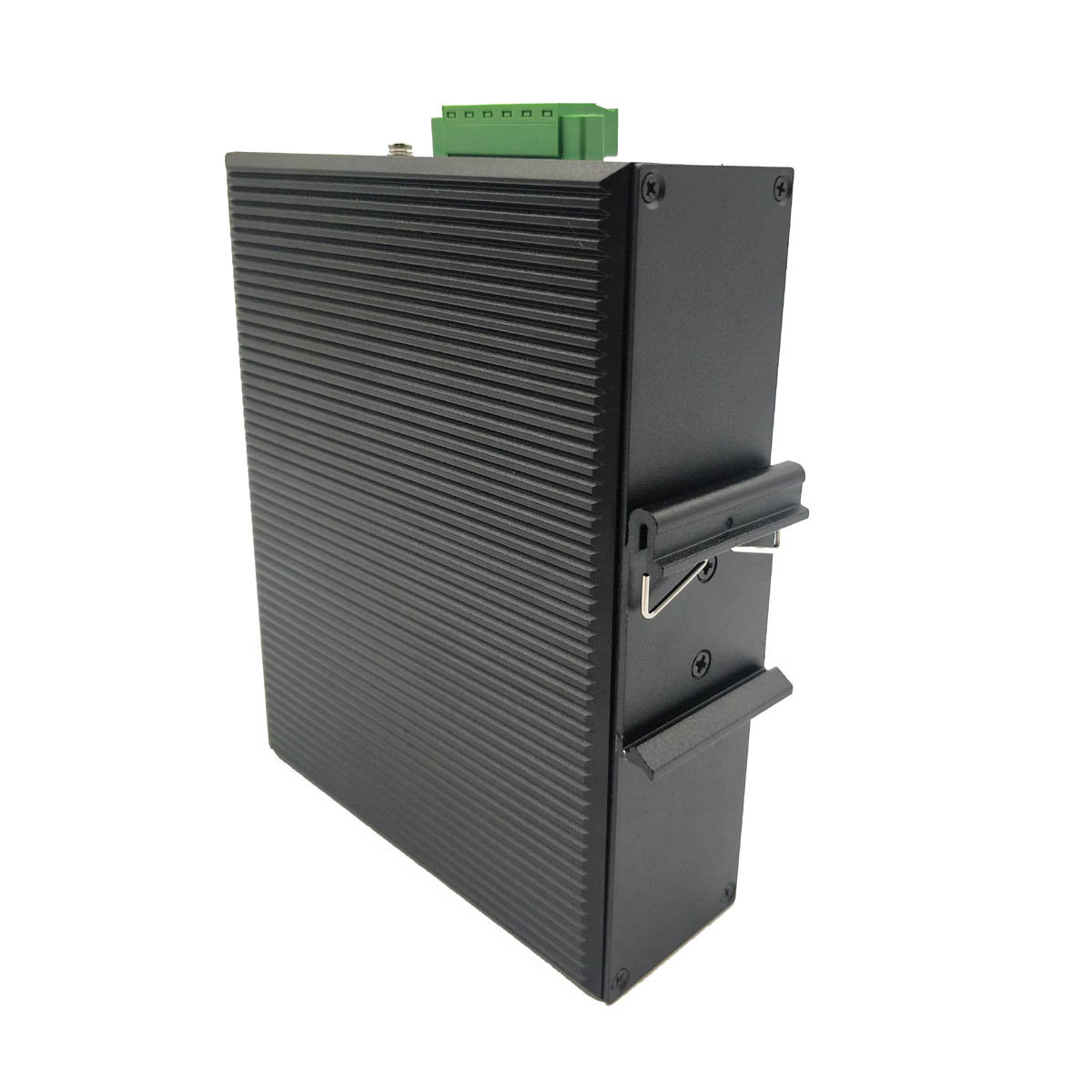

 Mechanical         • Dimension: 158mmx126mmx48mm                                     • Weight:1.2kg

 Air Flow              • Fanless natural cooling

 Features

Description

 Status

    • System Information

     • Logging Message

     • Port

• Link Aggregation

• MAC Address Table

 Network

• DNS

• Hosts

• System Time

 Port

• Port Setting

• Error Disabled

• Link Aggregation

• EEE

• Jumbo Frame

• Port Security

• Protected Port

• Storm Control

 POE Setting

• POE Port Setting

• POE Port Timer Setting

 VLAN

• VLAN

• Voice VLAN

• Protocol VLAN

• MAC VLAN

• Surveillance VLAN

• GVRP

 MAC Address

 Table

• Dynamic Address

• Static Address

• Filtering Address

• Port Security Address

 Spanning

 Tree

• Property

• Port Setting

• MST Instance

• MST Port Setting

• Statistics

 ERPS

• Property

• ERSP Instance

 Lookback

• Lookback Config

 Discovery

 LLDP

• Property

• Port Setting

• MED Network Policy

• Packet View

• Local Informantion

• Neighbor

• Statistics

 DHCP

• Property

• IP Pool Setting

• VLAN IF AddressGroup Setting

• Client List

• Client Static Binding Table

 Multicast

• General

• IGMP Snooping

• MLD Snooping

• MVR

 Routing

• IPV4 Management and Interfaces

• IPV6 Management and Interfaces

 Security

• RADIUS

• TACACS+

• AAA

• Management Access

• Authentication Manager

• Port Security

• Protected Port

• Storm Control

• Dos

• Dynamaic ARP Inspection

• DHCP Snooping

• IP Source Guard

 ACL

• MAC ACL

• MAC ACE

• IPV4 ACL

• IPV4 ACE

• IPV6 ACL

• IPV6 ACE

• ACL Binding

 Qos

• General

• Rate Limit

 Diagnostics

• Logging

• Mirroring

• Ping

• Traceroute

• Copper Test

• Fiber Module

• UDLD

 Management

• User Account

• Firmware

• Configuration

• SNMP

• RMON
