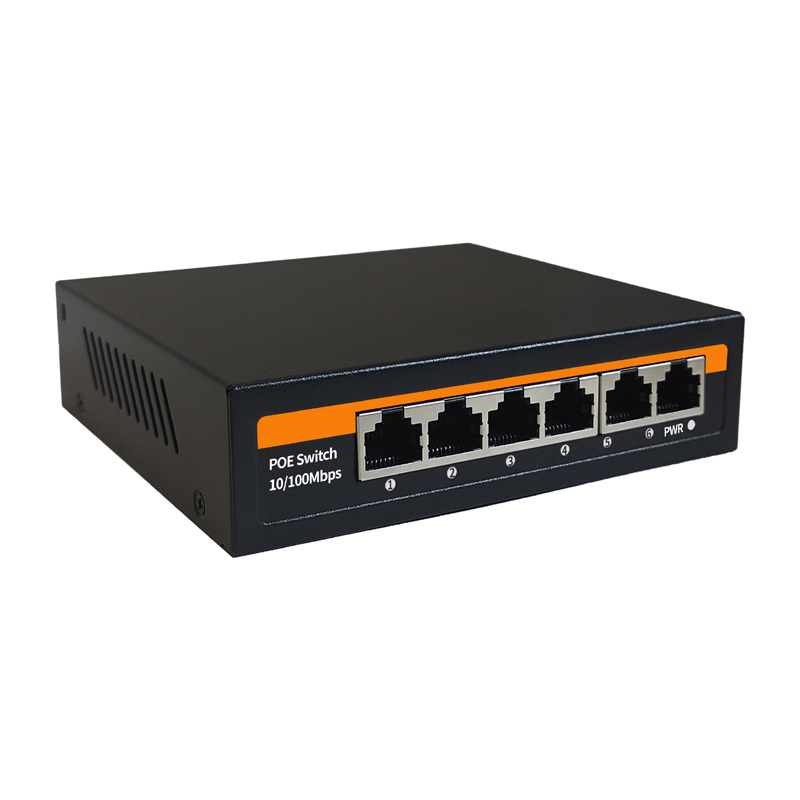

6-port  10/100M POE Switch

Product Description

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .

Product Features

• 6* 10/100Mbps adaptive RJ45 ports, 4* 10/100Mbps POE ports, 2* uplink port;
• Supports port auto-flip (Auto MDI/ MDIX);
• External power supply;
• Maximum power of single POE port: 15.4W/30W;
• Adopts store-and-forward architecture;
• IEEE 802.3af/at power on up to 4 ports;
• Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
• Support Vlan

Specification

Item		Description
Power	Power Adapter Voltage	48-57V DC
	Consumption	48W
Network Connector	Network Port	1～4 Port : 10/100Mbps     POE Ethernet Port
		2*Uplink Port : 10/100Mbps    Ethernet Port
	Transmission Distance	1～4 Port : Default: 0~100m (10/100Mbps) CCTV: 0~250m (10Mbps)
		2*Uplink Port :  100m (100Mbps)
	Transmission Medium	Cat5/5e/6 standard network cable
Network Switch	Network Standard	IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
	Switching Capacity	1.2Gbps
	Packet Forwarding Rate	0.8928Mpps
	MAC Table	2K
Power Over Ethernet	POE Standard	IEEE 802.3af/at
	POE Power Supply Type	End-Span(1/2+;3/6-)
	POE Power Consumption	af≤15.4W , at≤30W (every port)
LED Status Indicator	POE Ethernet LED Indicator	Power: 1 red light indicates that the power normal work;
		POE: 4 yellow lights indicate that the POE is power on;
		Ethernet: 6 green lights indicate that the Ethernet link and act;
Environmental	Working temperature	0℃~55℃
	Relative Humidity	20~95% non-condensing
	Storage temperature	-20℃~70℃
Mechanical	Dimension (L×W×H)	125mm*115mm*32mm
	Color	Black-Gray
	Weight	500g
Stability	MTBF	>30000h

Instruction:

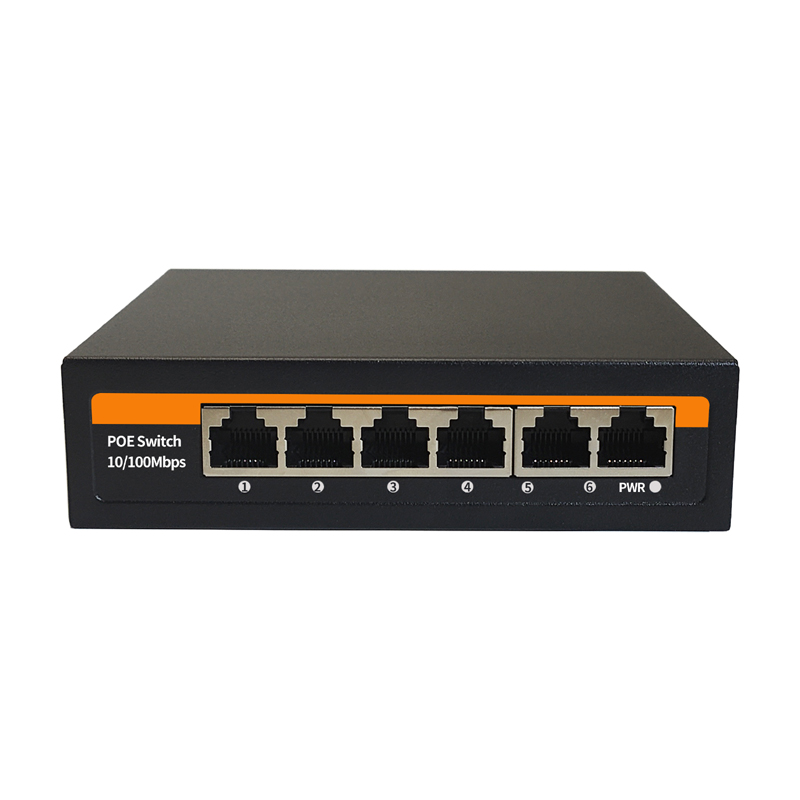

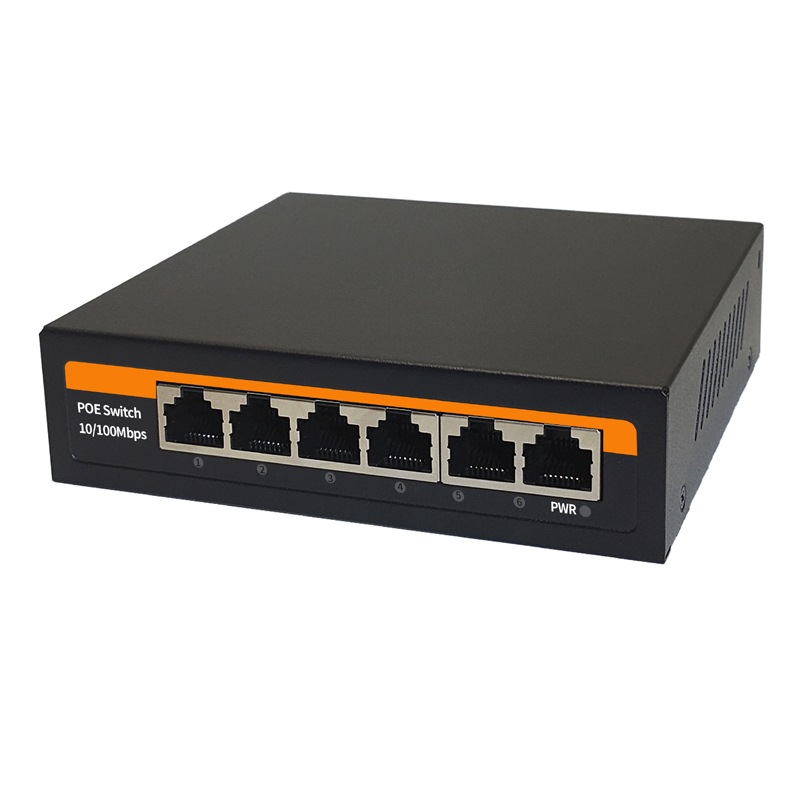

1.      Front board have 6 ports, Provide 4 * 10/100Mbps POE Ethernet ports, Provide 2 Uplink port;

2.      LED Indicator State:

Power: 1 red light indicates that the power normal work;

POE: 4 yellow light indicates that the POE is power on;

Ethernet: 6 green light indicates that the Ethernet link and act;

Installation Step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

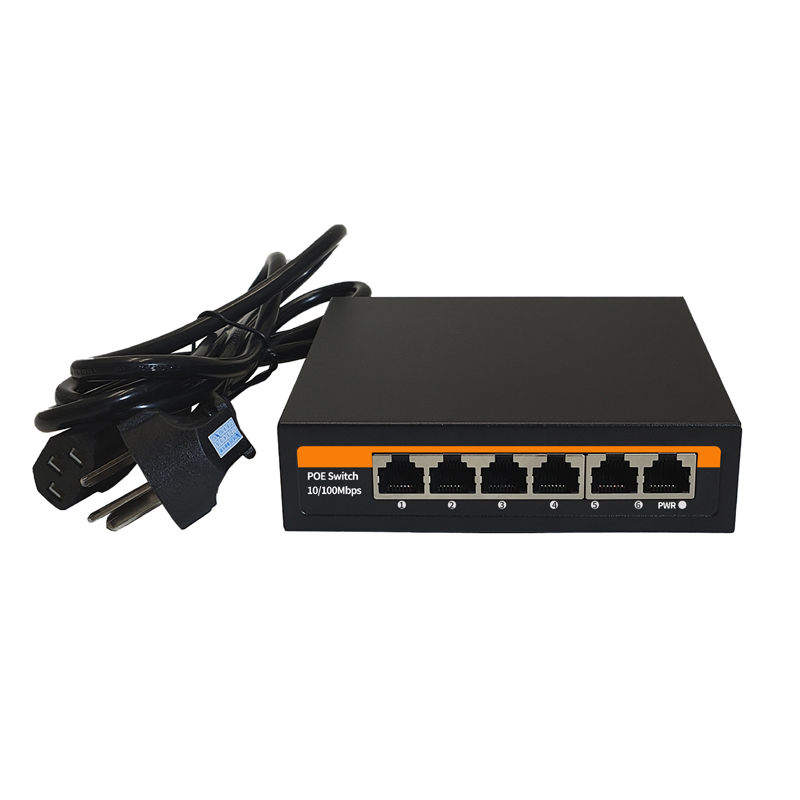

1.    POE Switch                                         1 PCS

2.    Power Adapter/Power Adapter Cable                   1 PCS

3.    User Manual                                         1 PCS

Please follow the following steps

◆  Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆  Use the network cables to connect the IP cameras with Ethernet switch's every POE port;

◆  Use network cable to connect Ethernet switch’s UPLINK port with NVR or Other Device;

◆  Connect Ethernet switch with power adapter;

◆  Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆  Make sure every network device has power supply and work normally.

Problem Examination

Please remove the problem according to the following steps

◆ Please confirm if the device installation is correct;

◆ Please confirm if the RJ45 reach the standard of EIA/TIA568A OR 568B;

◆ The maximum transmission distance depends on the signal source and cable quality, please do not over the maximum transmission distance;

◆ Please replace a normal device with a failure one to check if the device is broken;

◆ If the problem still exist , please contact the factory.
