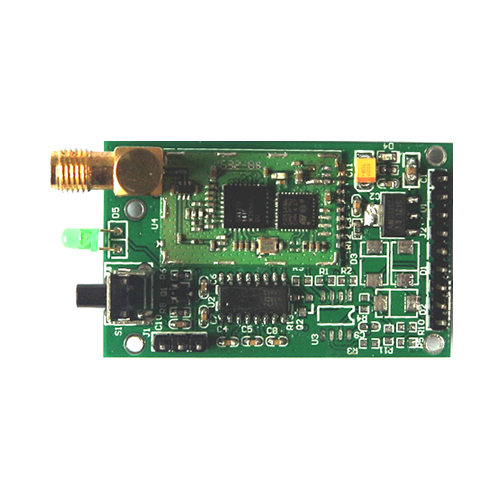

    KB6301 LORA Module

    Features:

    Basic characteristics:
    ● The open transmission distance can reach 5000 meters @low rate
    ● Working frequency band: 433 ~ 470 MHz optional
    ● Diversified serial port parameter settings
    ● LORA modulation mode
    ● TTL / RS232 / RS485 level interface
    ● Sensitivity up to -139 dBm
    ● Maximum output power: 100 mW (+20 dBm)
    ● Working voltage range: 5 ~ 12V
    ● Working temperature range: -40 ~ +85 ° C

    Hotline:
    +86-0755-82556825

    KB6301 LoRa wireless module is based on the wireless data transmission module developed by Semtech's SX1278 chip. The device uses LoRa TM spread spectrum modulation frequency hopping technology for efficient reception sensitivity and super anti-interference performance. Far more than the current FSK, GFSK modulation, with super anti-interference. This module is designed with an output power of 100mw, and can choose from three common interfaces: TTL, RS232, and RS485. It is widely used in industries such as wireless meter reading and remote industrial control.
    Basic characteristics:
    ● The open transmission distance can reach 5000 meters @low rate
    ● Working frequency band: 433 ~ 470 MHz optional
    ● Diversified serial port parameter settings
    ● LORA modulation mode
    ● TTL / RS232 / RS485 level interface
    ● Sensitivity up to -139 dBm
    ● Maximum output power: 100 mW (+20 dBm)
    ● Working voltage range: 5 ~ 12V
    ● Working temperature range: -40 ~ +85 ° C

    Application range
    ● Remote meter reading
    ● RFID tag reader
    ● Access control system
    ● Robot control
    ● Industrial data collection
    ● Remote control
    ● Home automation telemetry
    ● Toy control
    ● Sensor Network
    ● Health monitoring
