Interface

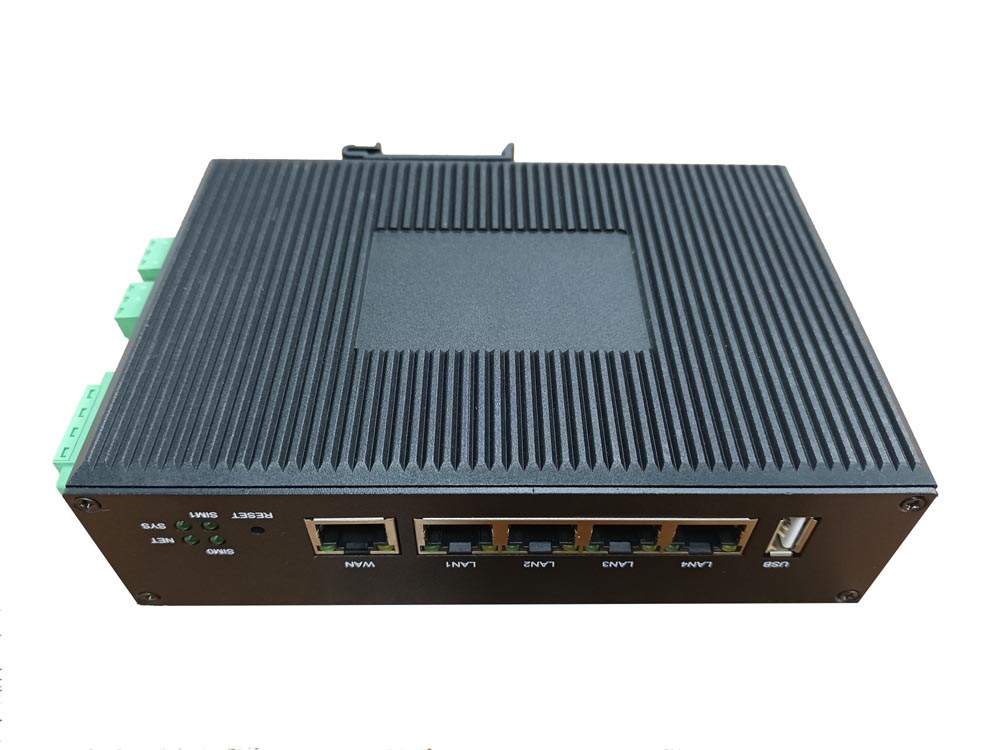

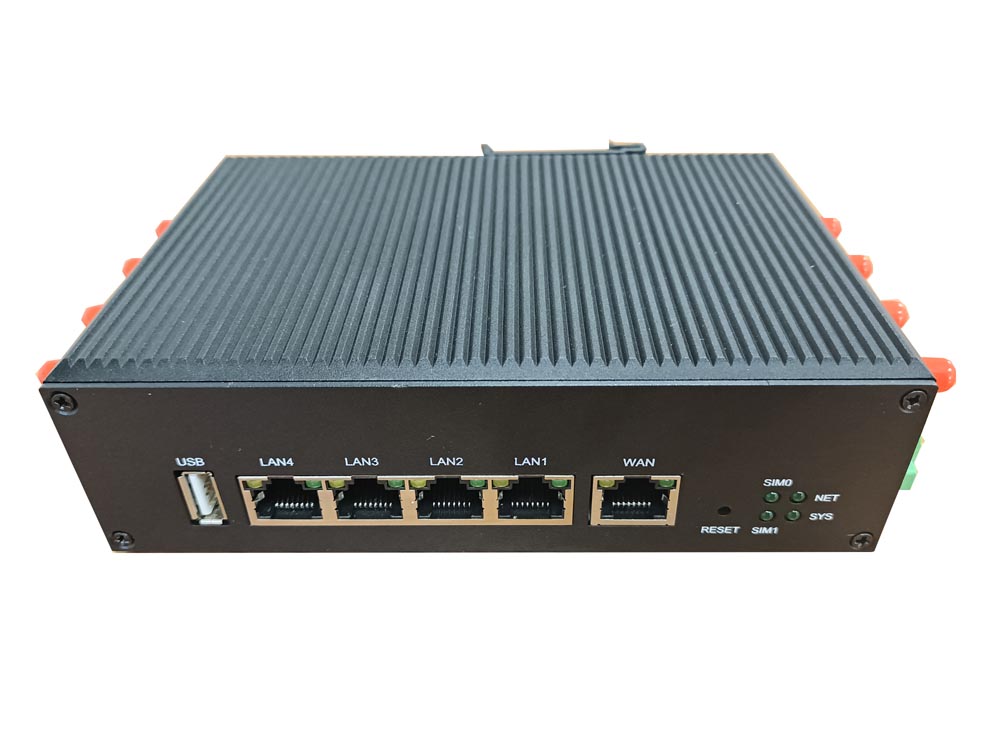

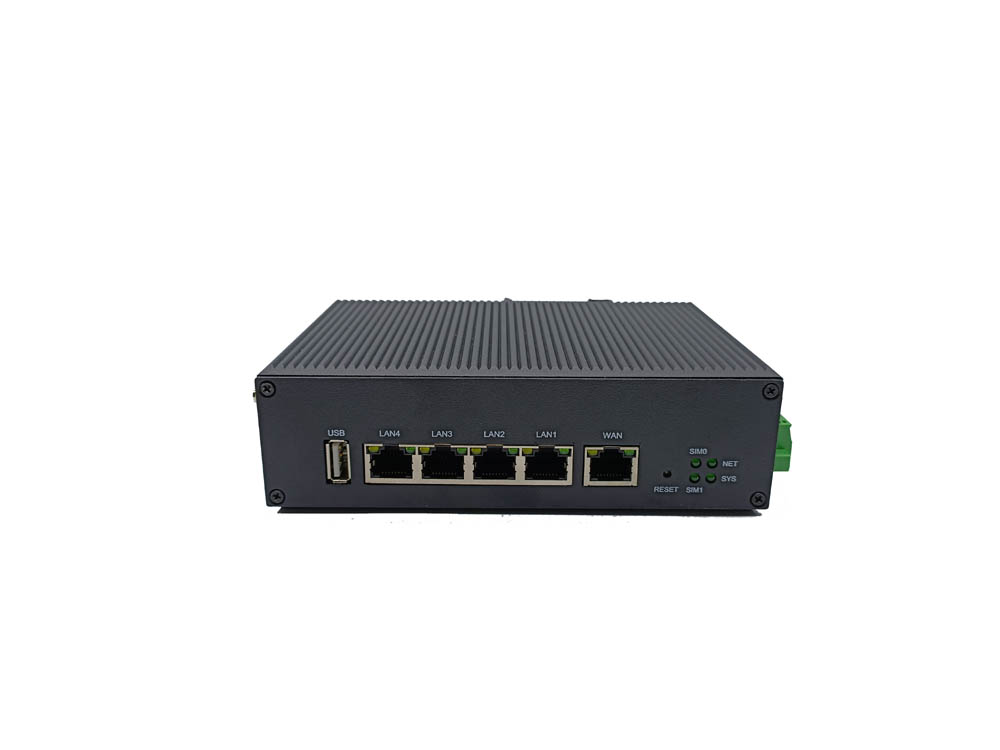

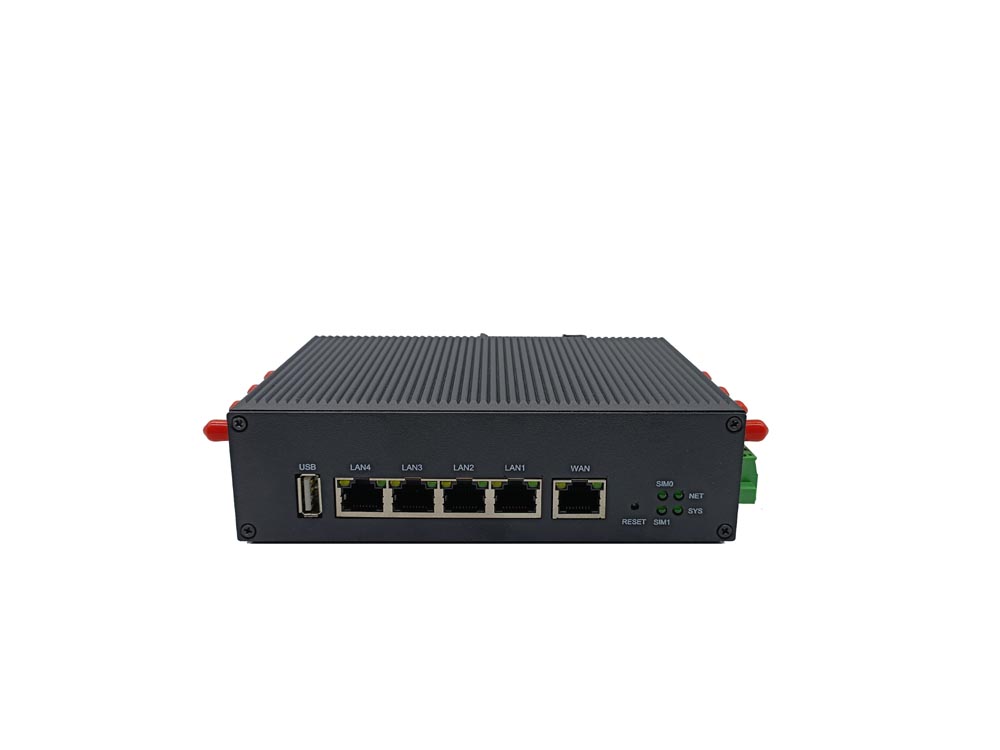

Ethernet interface

5* 10/100/1000Mbps Fast Ethernet interface, WAN/LAN adaptive (4 LANs in 5G mode)

PIN terminal

Industrial Serial Interface

RS232/RS485 x 2 industrial terminals

2*RS485 signal: A, B

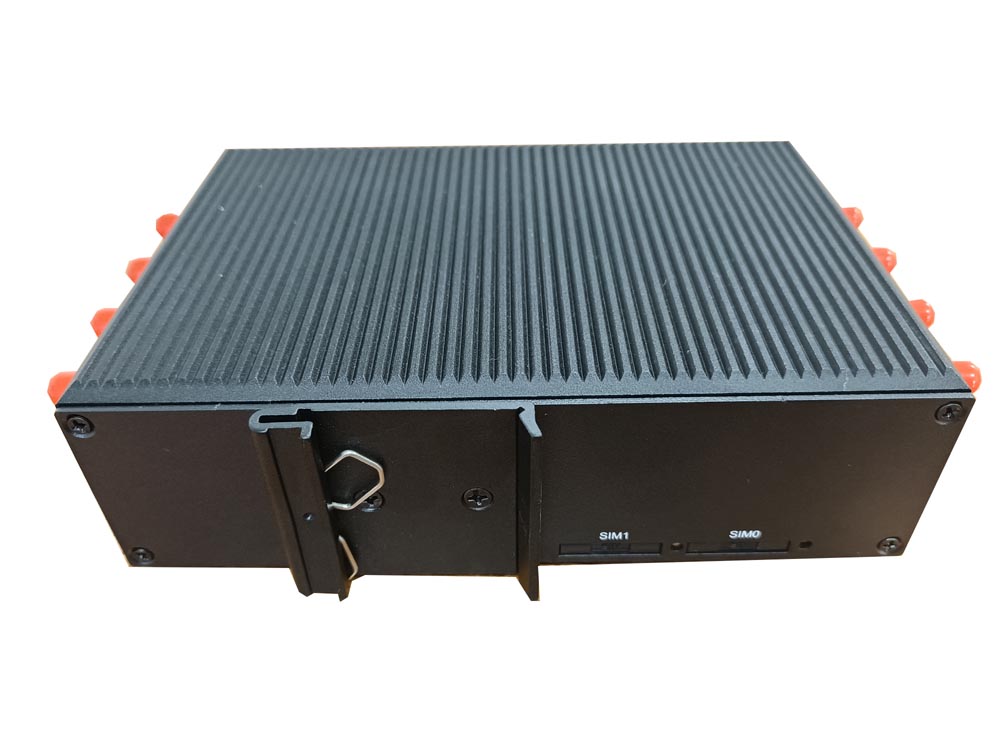

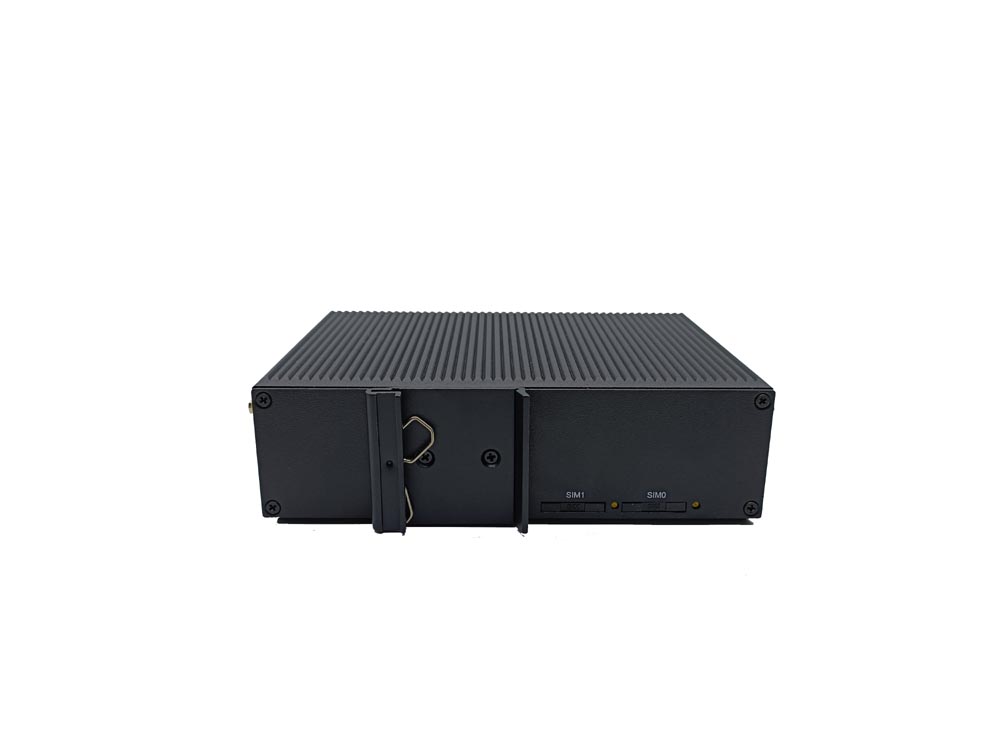

SIM card holder

Drawer type card holder x 2

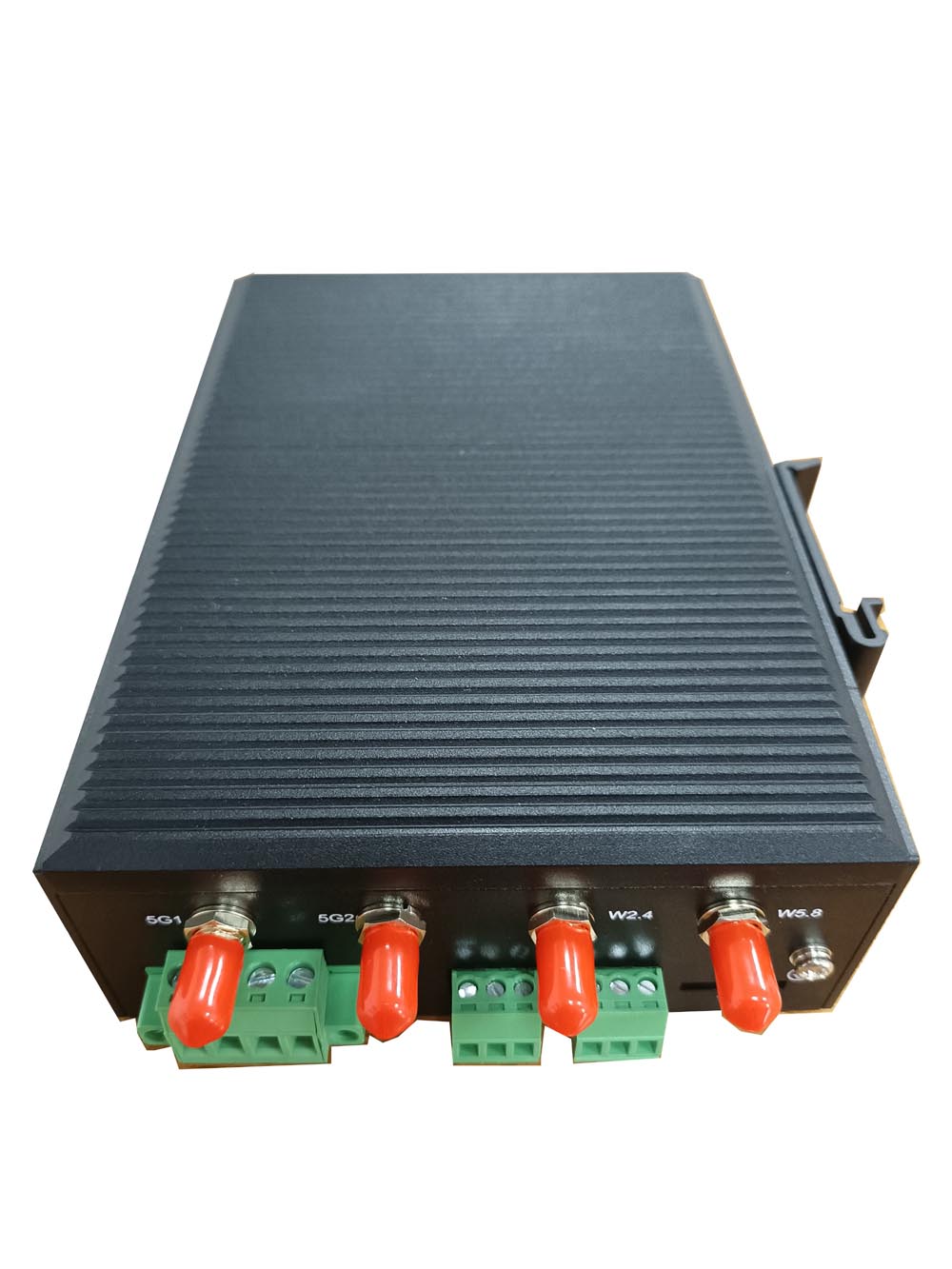

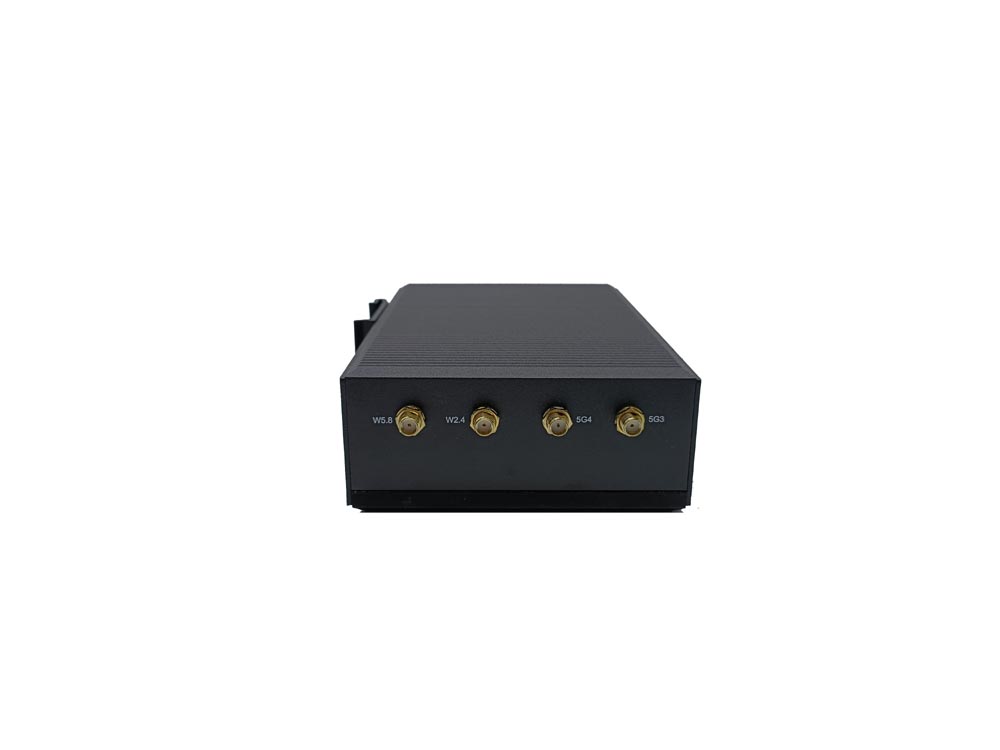

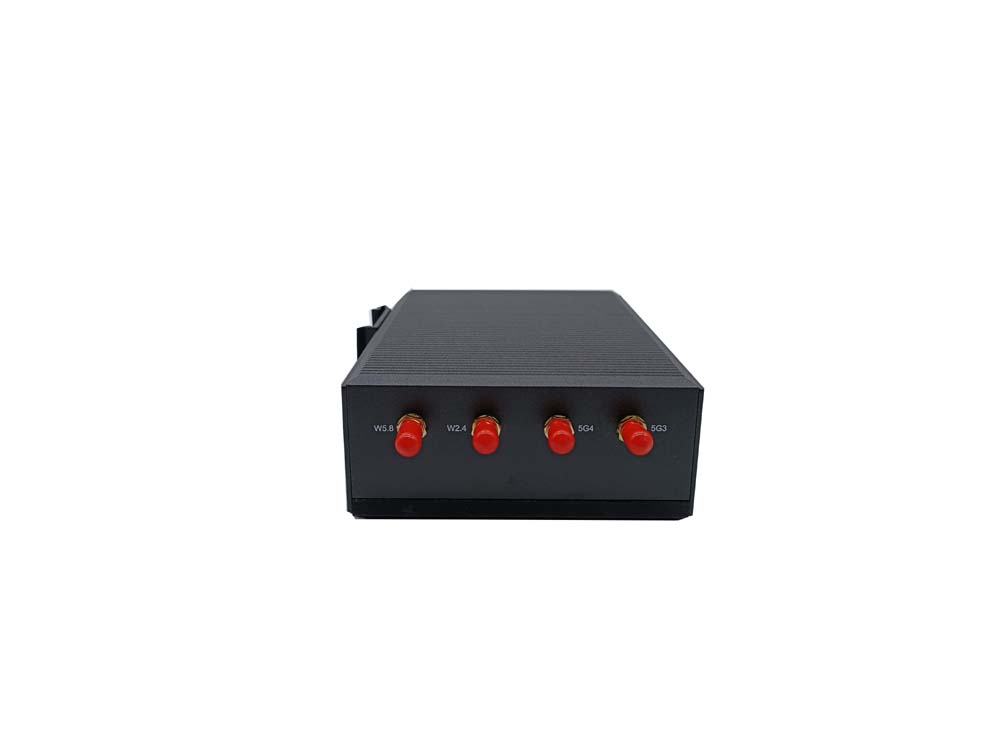

Antenna connector

SMA external rotation inner hole:

3G/4G/5G network: SMA x 4

WIFI: SMA x 4

Reset button

1

LED Light

SYS system running indicator:

Flashes once per second, indicating that the system is running normally. Flashing quickly indicates firmware is being upgraded, or the reset button is being pressed to reset.

SIM0: card holder SIM0 using

SIM1: card holder SIM1 using

5G mode signal indicator:

  Long light when the network is 5G

  When the network is 4G, it flashes once per second

  Long off when the network fails
