KB580 5G Industrial Router

Features:

1. Adopting high-performance industrial grade communication module, dual core 880MHz CPU, 128MB/256MB memory, 16MB flash

2. Supports 3G (WCDMA/EVDO/TD-SCDMA), 4G (FDD-LTE/TD-LTE), and 5G NR

3. Adopting a metal shell with a protection level of IP30

4. Standard RJ45 (1000M Ethernet) interface with built-in lightning protection

5. Wide voltage and current input: DC5-40V/1A; Ultra high voltage automatic power-off protection

6. Anti reverse power protection and anti surge protection; ESD anti-static protection

Online consultation

Hotline:
+86-19925398188

1.product overview

1.1 Brief introduction

This router is an industrial IoT communication device that is fully compatible with 5G/4G/3.5G/3G/2.5G networks. It features industrial grade protection, wide temperature, and wide voltage design, making it easy to build high-speed and stable wireless transmission networks. Provide wireless long-distance data transmission services to users using public NR, LTE networks (or VPDN proprietary networks).

This router adopts a high-performance industrial grade 32-bit dual core communication processor and industrial grade communication module, with an embedded real-time operating system as the software support platform. It also provides 2 RS232/485, 3 Ethernet LAN, and 1 Ethernet WAN interface, which can connect serial port devices and Ethernet devices simultaneously, achieving transparent data transmission and routing functions.

1.2 Application area

Industries that require remote data transmission, such as industrial control, electricity, petroleum, coal mining, finance, communication, public security, heating, meteorology, water conservancy, transportation, and municipal services.

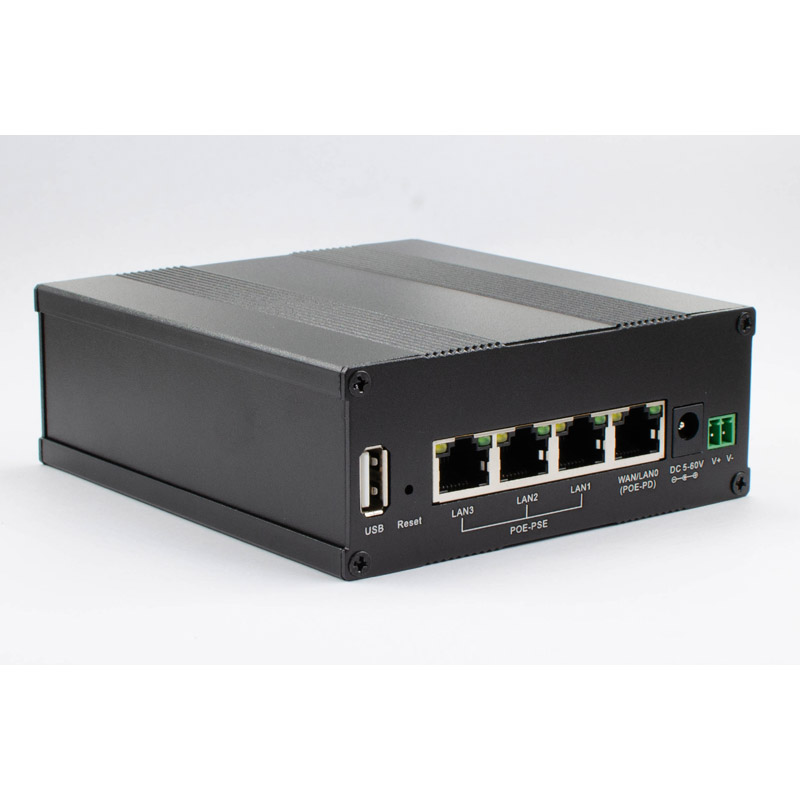

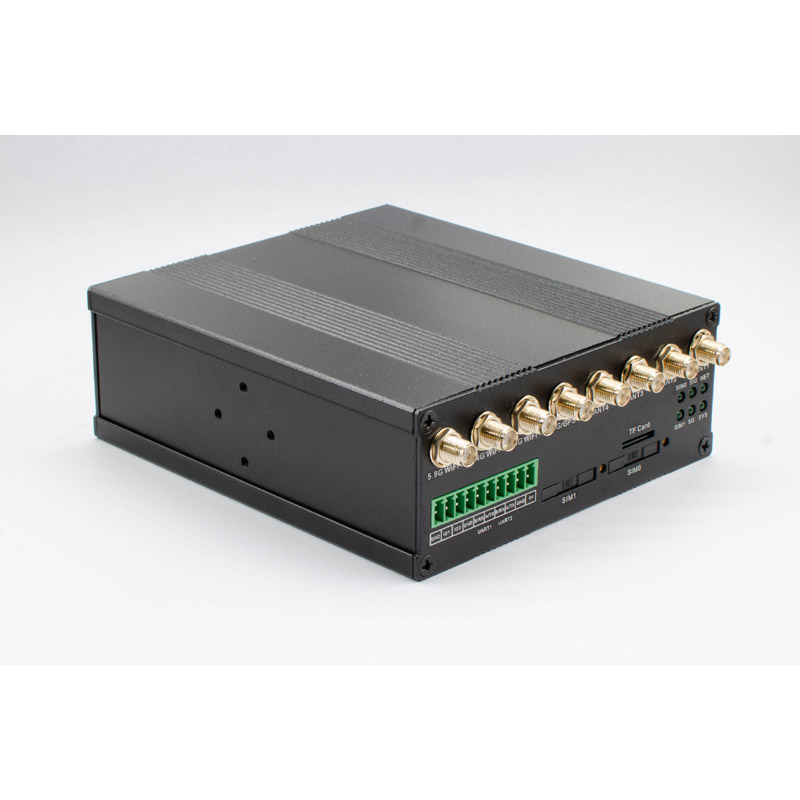

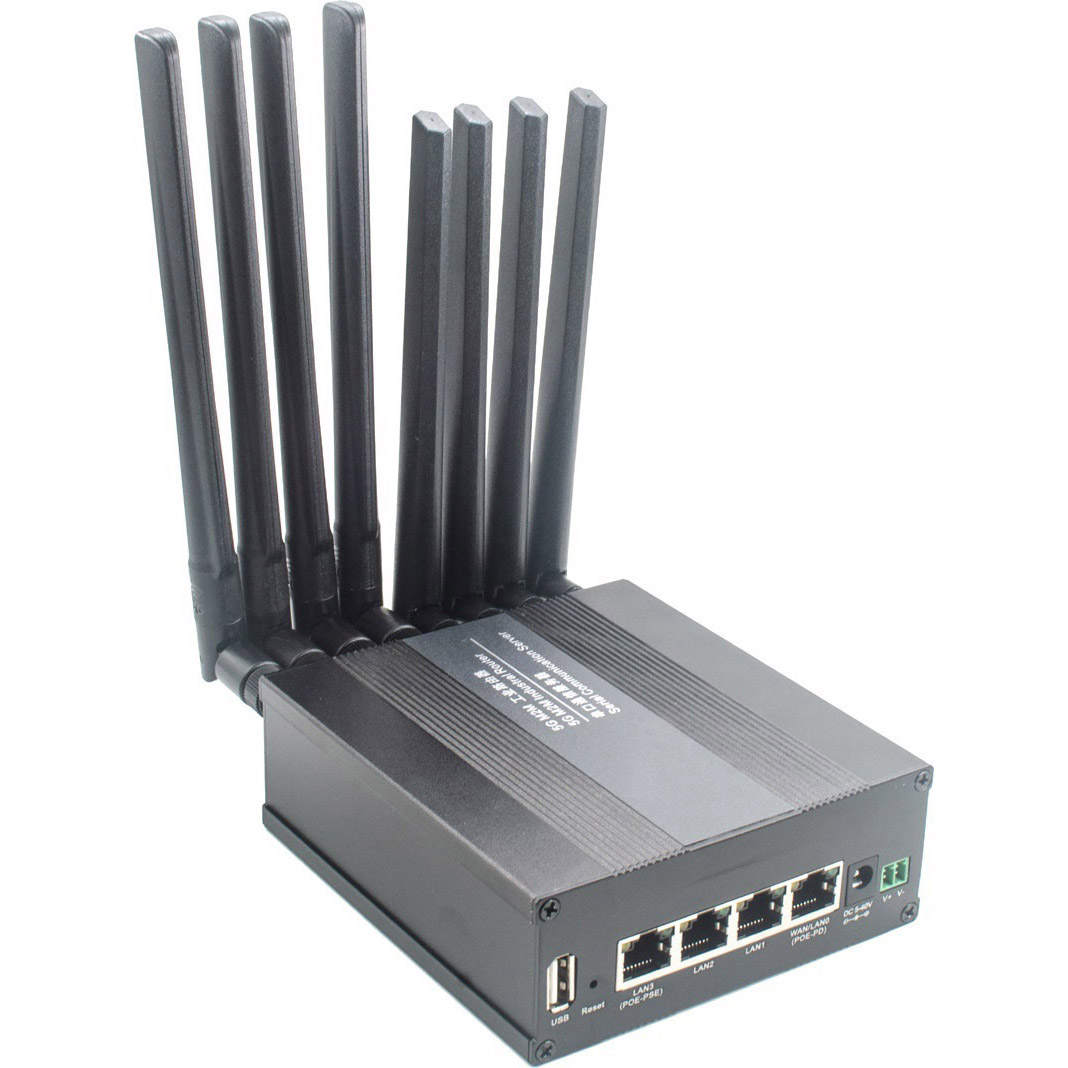

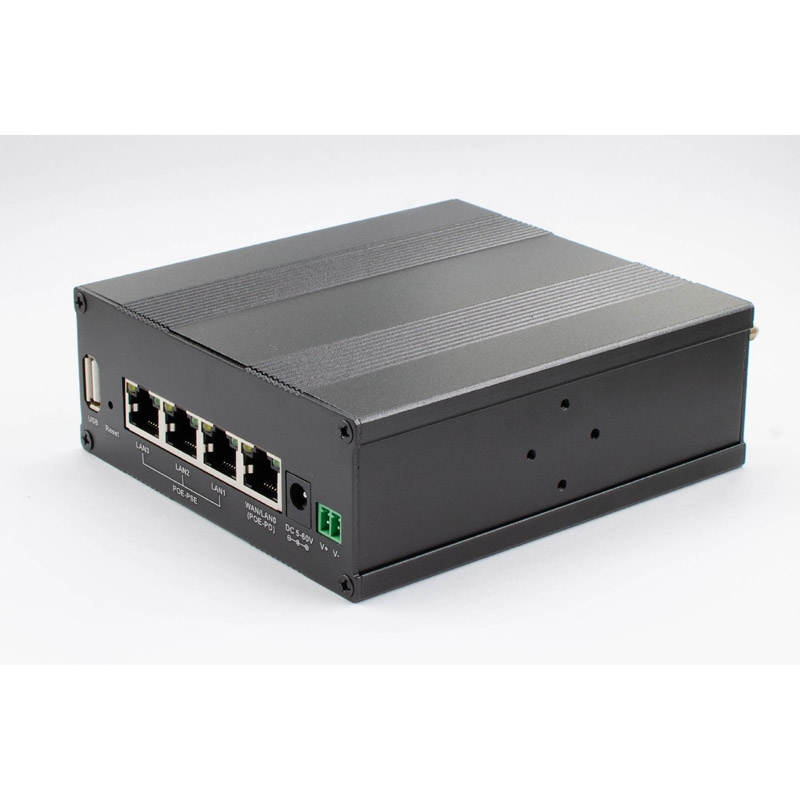

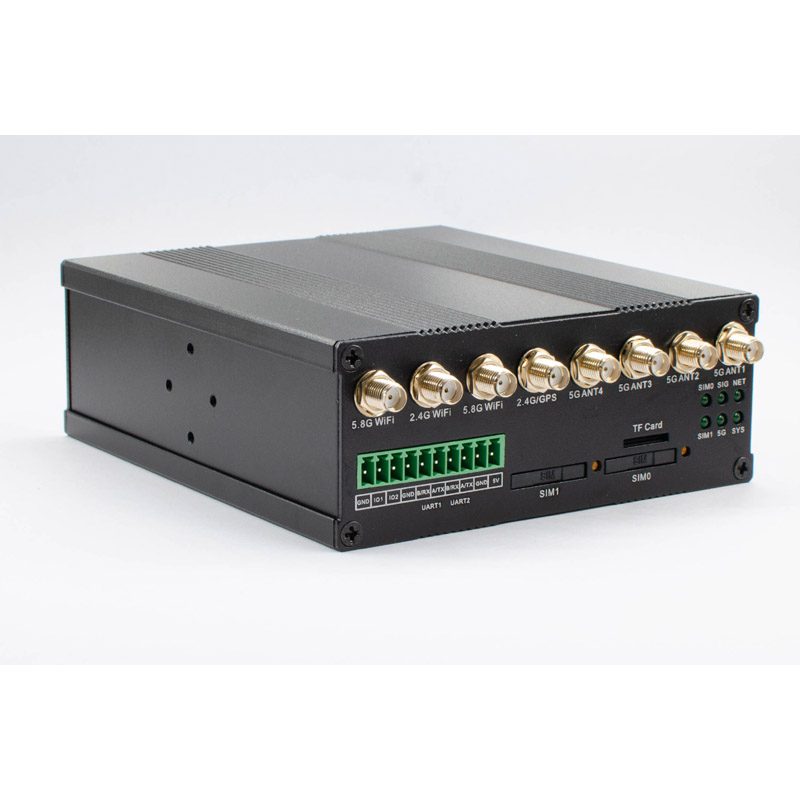

1.3 Product Diagram

1.4 Characteristic

1. Adopting high-performance industrial grade communication module, dual core 880MHz CPU, 128MB/256MB memory, 16MB flash

2. Supports 3G (WCDMA/EVDO/TD-SCDMA), 4G (FDD-LTE/TD-LTE), and 5G NR

3. Adopting a metal shell with a protection level of IP30

4. Standard RJ45 (1000M Ethernet) interface with built-in lightning protection

5. Wide voltage and current input: DC5-40V/1A; Ultra high voltage automatic power-off protection

6. Anti reverse power protection and anti surge protection; ESD anti-static protection

7. Software and hardware watchdog anti crash design, the router will automatically shut down and restart after network disconnection, ensuring stable and reliable operation of the device

8. Automatic detection of network disconnection, automatic restart upon dialing failure, scheduled restart, and other functions

9. Serial port transparent transmission function, which can enter command control mode through the serial port to control the router and accessory devices

10. Support multiple DDNS dynamic domain name services

11. Port mapping, DMZ host and other functions

12. Supports VPN servers PPTP Server, L2TP Server, and OpenVPN Server

13. Supports VPN clients PPTP Client, L2TP Client, and OpenVPN Client

14. Support Socket server and client modes

15. Support cloud intranet penetration and other functions

16. Base station positioning function/GPS positioning

2.FUNCTIONAL OVERVIEW

2.1 Software Function

Network interconnection
network access	3G/4G/5G dial-up internet, supporting APN and VPDN. Built in with hundreds of global APN information, the router can automatically match internet access after inserting a SIM card
Access authentication	Support CHAP/PAP/MS-CHAP/MS-CHAPV2/none
Network standard	Support NR/LTE/WCDMA(HSPA+)/TD-SCDMA/EVDO/EDGE/GPRS
LAN protocol	Support ARP, Ethernet，STP
WAN protocol	Support static IP, DHCP, PPPoE，PPTP,L2TP
Number of supported users	wired：253
network protocol
IP application	Support tcping, ping, traceroute, DHCP server/wireless relay/client, dynamic domain DDNS, telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, IPv6
IP routing	Support static routing,IGMP Proxy
TTL	Customize the TTL value of the client host
Network security
firewall	Support full state packet inspection (SPI) to prevent denial of service (DDoS) attacks
	Support filtering multicast/Ping packets, access control list (ACL)
	DMZ, MAC filtering, whitelist/blacklist access control
	Support NAT, PAT, DMZ, port mapping, virtual servers
AAA	Support local authentication and Radius
data security	Supports L2TP, PPTP, OpenVPN, CA
Reliability
Backup function	Interface backup, 4G/5G, wired network disconnection mutual backup
Link online detection	4G/5G status detection, automatically redial when disconnected or signal is poor
	Definition of interval time for VPN disconnection and redialing, and control of dialing frequency
	WAN sends heartbeat detection packet for automatic connection upon disconnection
	Scheduled restart
Bridge with multiple gateways	Supports multiple LAN settings, the router has two gateways (two internal networks)
Internet of Things
DTU	Supports TCP, UDP transparent transmission mode, TCP Server mode, and instruction mode
Secondary development
shell script	Custom script function, implementing custom management of routers and related functions
Interface	The router provides a secondary development parameter interface (HTTP), such as obtaining router status, setting router related functions, etc. Convenient for mobile app, mini program, and cloud server development
network management
collocation method	Supports local or remote HTTP, HTTPS, Telnet, SSH methods, and internal network penetration methods
Upgrade method	Support local or remote WEB, TFTP, FTP, SFTP server, intranet penetration remote
Log function	Support local system logs and remote logs. Important logs saved in case of power failure
Log function	Support saving logs in case of power failure

2.2 Hardware parameters

Interface
Ethernet interface		4 * 10/100/1000Mbps Fast Ethernet interface, WAN/LAN adaptive (4 LANs in 4G/5G mode)
PIN terminal	Industrial serial interface	RS232/RS485 x 2 Industrial terminal RS232 signal：TXD.RXD.GND RS485 signal：A.B
SIM card holder		Drawer style card holder x 2
Antenna connector		SMAExternal rotation inner hole： 3G/4G/5G Network: SMA x 4 2.4G/5.8G WiFi:SMA x 4
reset key		1个
mechanical properties
Installation method		Guide rail, wall mounted
External dimensions		LWH：12411344mm (Excluding antenna interface)
casing		aluminum alloy
protection grade		IP30
Cooling method		Aluminum block heat dissipation
weight (g)		345g （Excluding external antenna and power supply）
power supply
power interface		DC2.1，2pin3.5mm terminal
power input		DC 5-40V，Anti reverse connection protection
Polarity reversal protection		Support
Environmental temperature and humidity
ambient humidity		5 ~ 95% （No frost）
storage temperature		-40 ~ 85℃
operation temperature		-20°C ~ +75°C
other
LED light		SYS system operation indicator light: Flashing once every second indicates that the system is running normally Flashing indicates that firmware is being upgraded or the reset button is being pressed to reset
		NET external network connection indicator light: When in 4G/5G mode, flashing indicates that 4G/5G is dialing Long on, indicating successful internet access through WAN port Long extinction indicates that the WAN port has failed to access the internet
		SIG 5G signal strength indicator light: When the signal strength of 5G is above 90%, the SIG light stays on for a long time When the signal strength of 5G is between 45% and 90%, the SIG light flashes once every second When the signal strength of 5G is below 45%, the SIG light will flash rapidly
		5G mode signal indicator light: When the network is connected to 5G, it stays on for a long time When the network is on 4G, it flashes once every second When the network deployment fails, the duration will be extinguished
physical property
shockproof		IEC60068-2-27
vibrate		IEC60068-2-6
drop		IEC60068-2-32

2.3 KB580 Frequency Comparison Table

Network

Model

Bands

RedCap 5G

KB580

5G NR: N1/N3/N5/N8/N28/N41/N78/N79

LTE-FDD: B1/B3/B5/B8

LTE-TDD: B34/B38/B39/B40/B41

Theoretical speed:Download 226Mbps/ Upload 120Mbps

Note: Currently, RedCap modules mainly use Dingqiao HiSilicon modules

2.4 KB580 WiFi power：

2.4G
2412(1) 54M CHAIN0	21.95 dBm ( 21.50 .......O.......... 22.50)
	54M EVM : -33.89 dB ( -55.00 ...........O...... -25.00)
2412(1) 54M CHAIN1	22.09 dBm ( 21.50 ..........O....... 22.50)
	54M EVM : -37.49 dB ( -55.00 .........O........ -25.00)
2437(6) 54M CHAIN0	21.71 dBm ( 21.50 ...O.............. 22.50)
	65M EVM : -35.43 dB ( -55.00 ...........O...... -27.00)
2437(6) 54M CHAIN1	21.96 dBm ( 21.50 .......O.......... 22.50)
	65M EVM : -36.67 dB ( -55.00 ...........O...... -27.00)
2462(11) 54M CHAIN0	21.99 dBm ( 21.50 ........O......... 22.50)
	135M EVM : -35.88 dB ( -55.00 ...........O...... -27.00)
2462(11) 54M CHAIN1	21.97 dBm ( 21.50 .......O.......... 22.50)
	135M EVM : -37.14 dB ( -55.00 ..........O....... -27.00)
5.8G
5180(36) 54M CHAIN0	20.61 dBm ( 20.50 .O................ 21.50)
	54M EVM : -32.61 dB ( -55.00 ............O..... -25.00)
5180(36) 54M CHAIN1	21.00 dBm ( 20.50 ........O......... 21.50)
	54M EVM : -33.69 dB ( -55.00 ............O..... -25.00)
5500(100) 54M CHAIN0	21.13 dBm ( 20.50 ..........O....... 21.50)
	HT20-MCS7: 65M EVM : -27.91 dB ( -55.00 ................O. -27.00)
5500(100) 54M CHAIN1	21.16 dBm ( 20.50 ...........O...... 21.50)
	HT20-MCS7: 65M EVM : -30.92 dB ( -55.00 ..............O... -27.00)
5825(165) 54M CHAIN0	20.99 dBm ( 20.50 ........O......... 21.50)
	AC80-MCS9: 390M EVM : -35.93 dB ( -55.00 ..............O... -32.00)
5825(165) 54M CHAIN1	21.18 dBm ( 20.50 ...........O...... 21.50)
	AC80-MCS9: 390M EVM : -34.52 dB ( -55.00 ...............O.. -32.00)

3.Interface Description

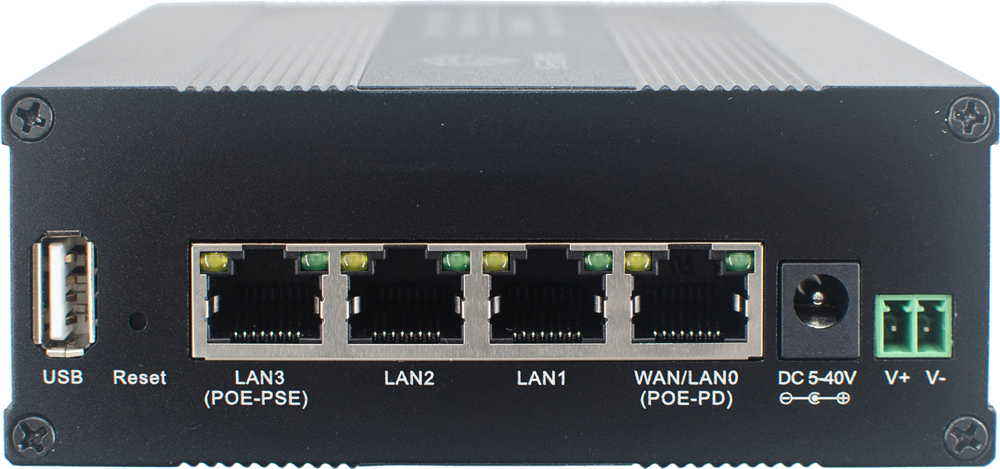

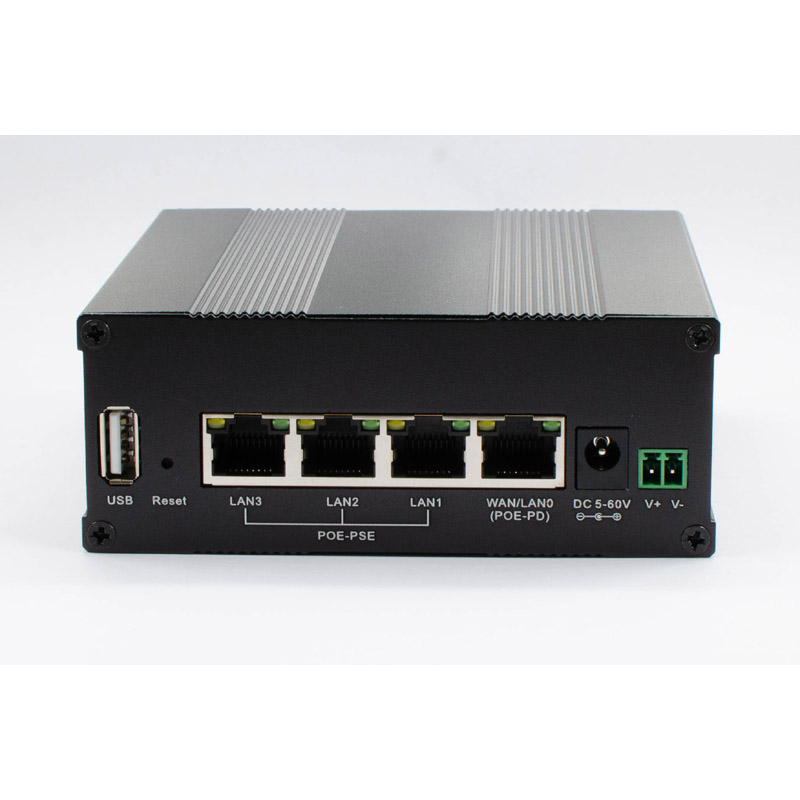

Network port side：
2pin terminal	Using 3.5mm terminals, left positive and right negative, voltage input is 5-40V, recommended input power is greater than 12W.
DC power interface	Using a 2.1mm round head power interface, with positive inside and negative outside, the voltage input is 5-40V, and it is recommended that the input power be greater than 12W.
LAN0~LAN3	Standard RJ45 interface with light; In standard router mode, LAN0 can be used as a WAN port.
LED灯	SYS system operation indicator light: Flashing once every second indicates that the system is running normally Flashing indicates that firmware is being upgraded or the reset button is being pressed to reset NET external network connection indicator light: When in 4G/5G mode, flashing indicates that 4G/5G is dialing Long on, indicating successful internet access through WAN port Long extinction indicates that the WAN port has failed to access the internet
	SIG 5G signal strength indicator light: When the signal strength of 5G is above 90%, the SIG light stays on for a long time When the signal strength of 5G is between 45% and 90%, the SIG light flashes once every second When the signal strength of 5G is below 45%, the SIG light will flash rapidly
	5G mode signal indicator light: When the network is connected to 5G, it stays on for a long time When the network is on 4G, it flashes once every second When the network fails, it will be permanently extinguished

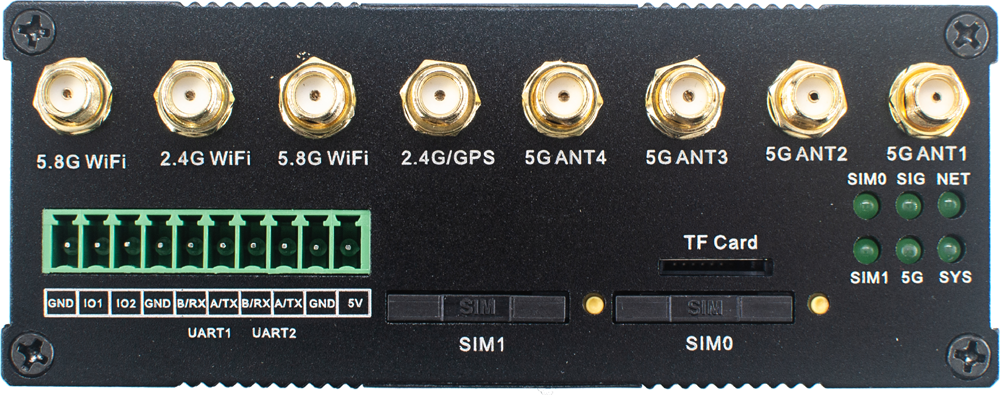

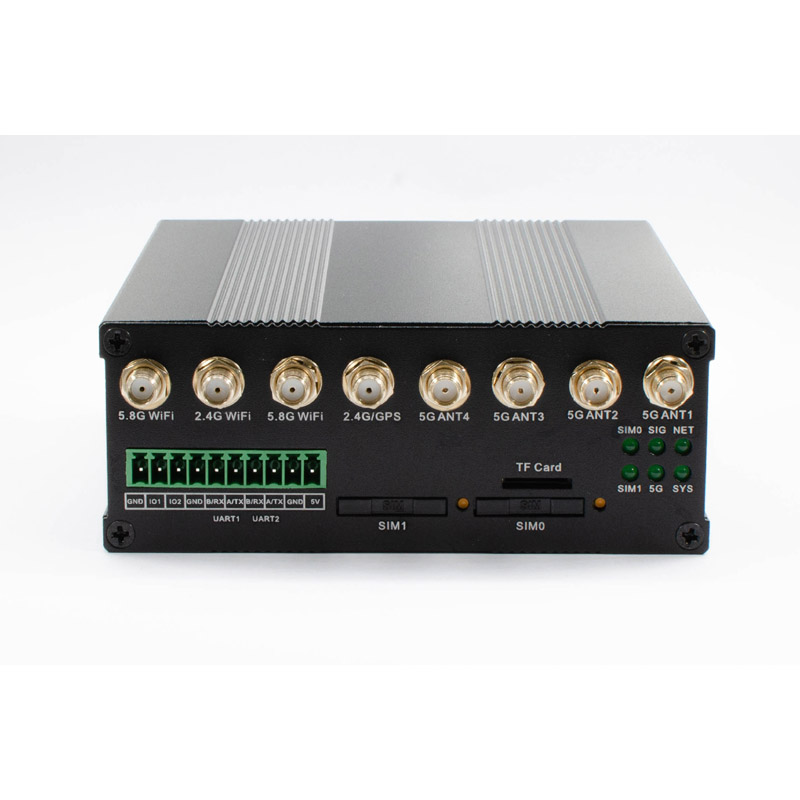

Antenna side:
5G antenna interface	SMA external rotation inner hole interface.
SIM card slot	Self locking slot, forcefully poke the yellow button on the right, and the card holder will pop out.
PIN (3.5mm)	Industrial serial interface	RS232/RS485 x 2 Industrial terminal RS232 signal：TXD.RXD.GND RS485 signal：A.B.GND
	DI DO	2pin DI,DO IO1：GPIO#24, IO2：GPIO#23
	5V	External 5V power supply
R (Reset) key	Press this button for 8 seconds while the device is turned on to reset the system
