KB501 5G embedded Router Module

Features:

Hotline:
+86-19925398188

1. Product Introduction

The KB501 industrial grade 5G router module is mainly used for data transmission services of industry users, supporting functions such as transparent data transmission, image transmission, and device monitoring.

KB501 adopts a high-performance 32-bit dual core processor, which can process protocols and large amounts of data at high speed. It can be paired with various 5G industrial modules, providing 5G to 100/1000M Ethernet ports, serial ports and other functions, and can be connected to various terminal devices. Supports WEB configuration, easy and simple management, and supports remote cloud management.

Product Architecture Diagram：

2. Application Fields

Network cameras, video boxes, charging stations, financial, communication, public security, transportation, municipal and other product applications.

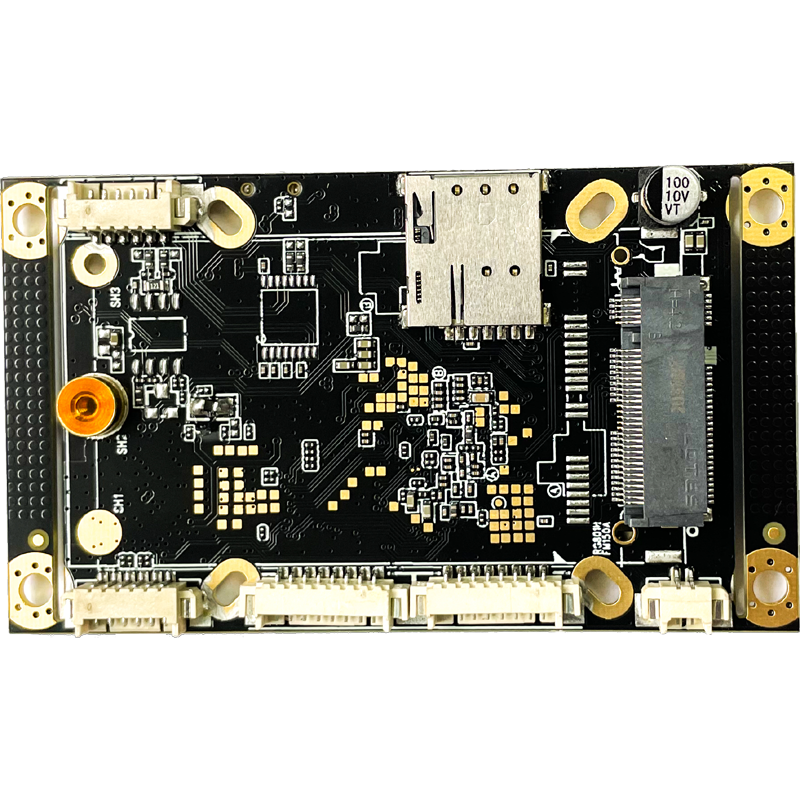

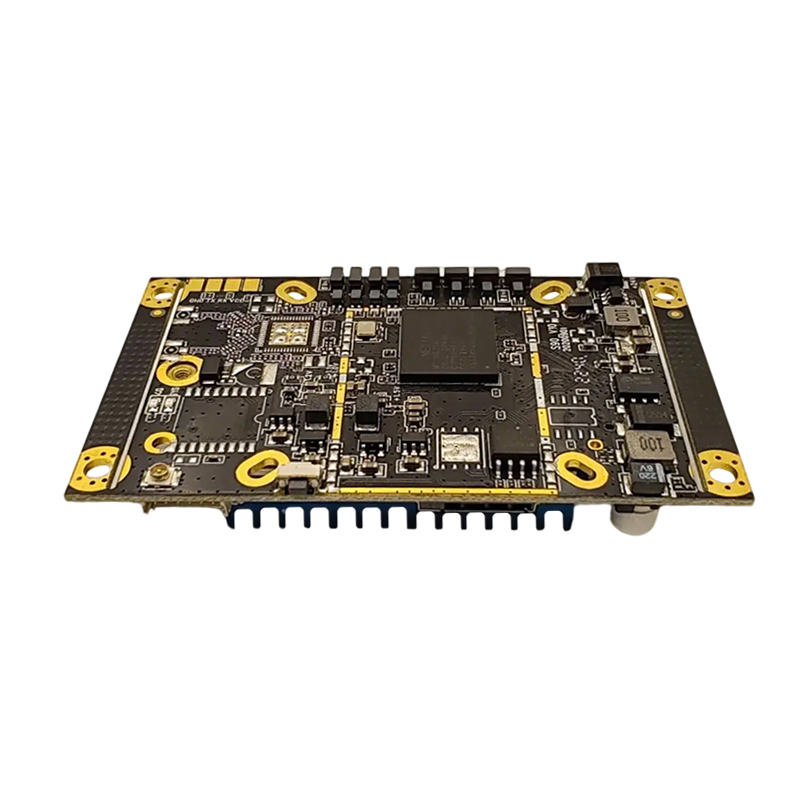

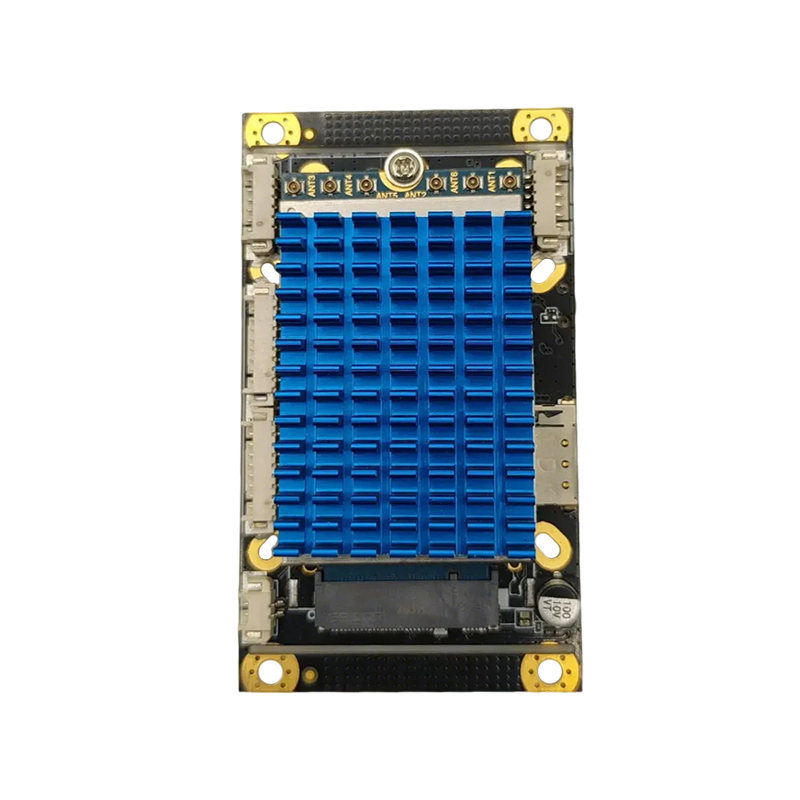

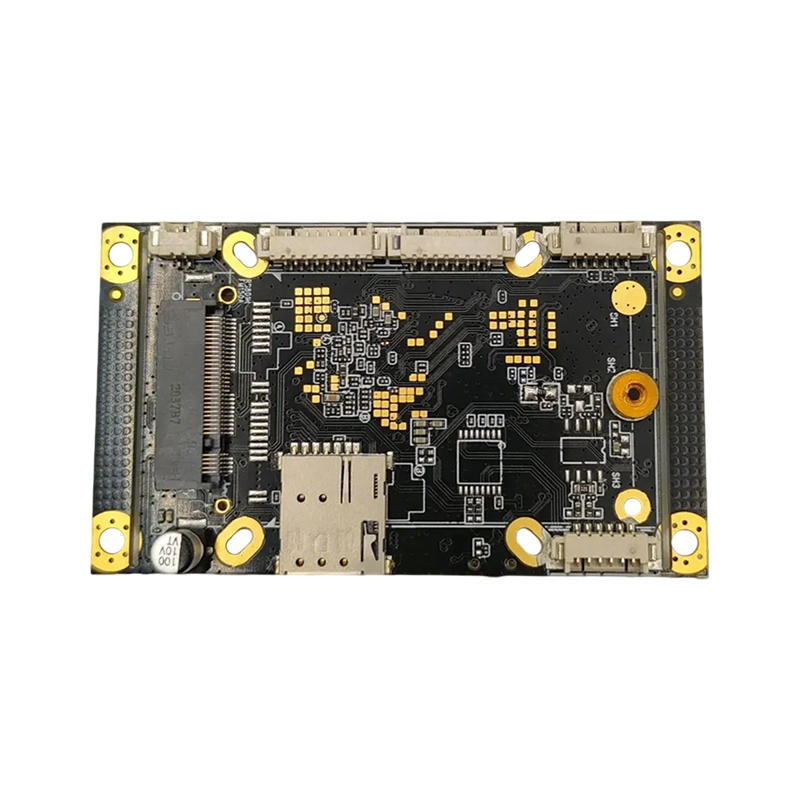

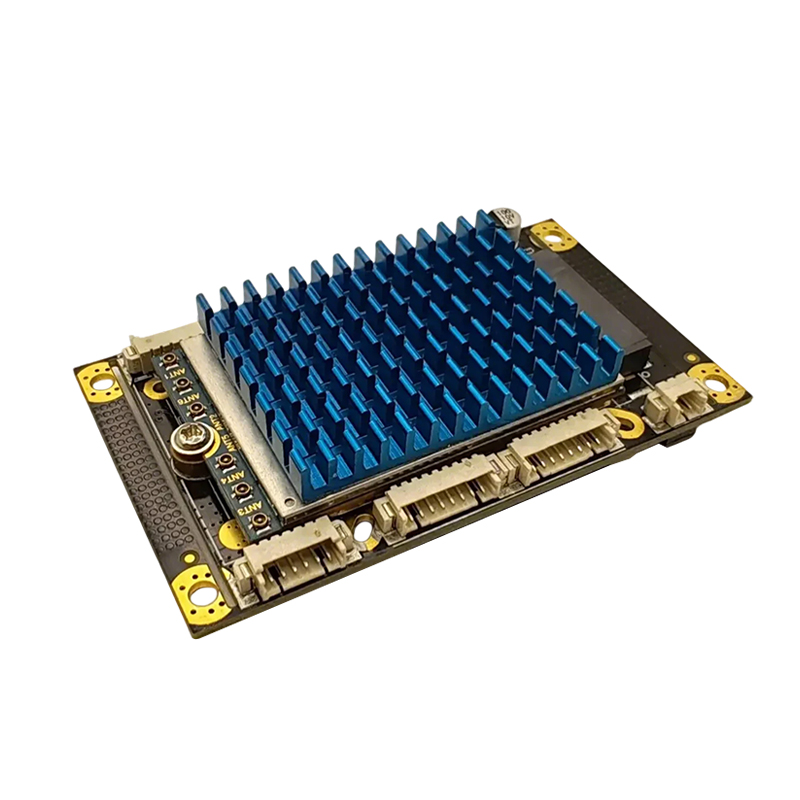

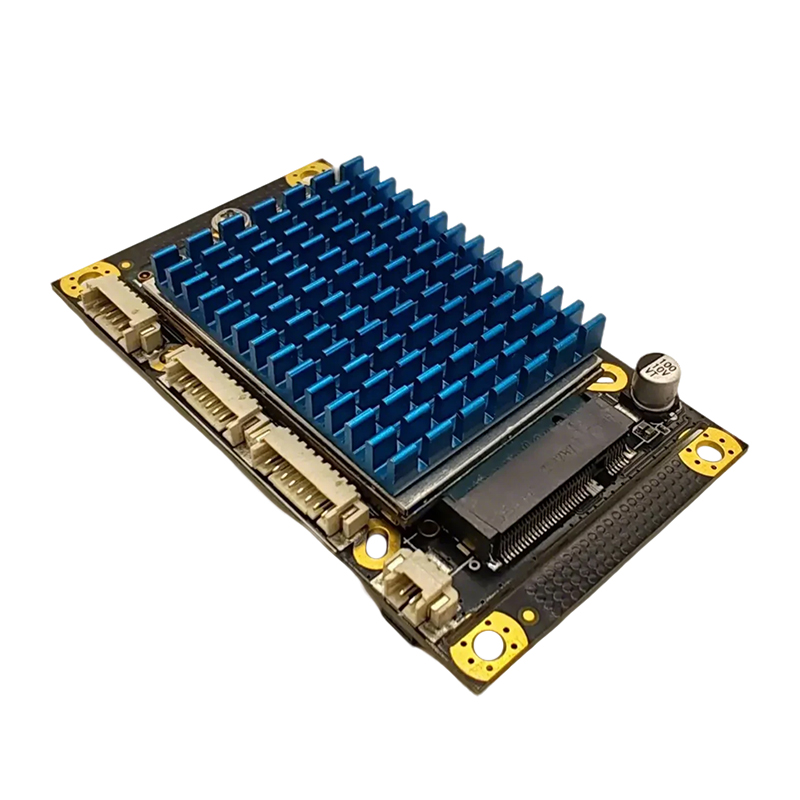

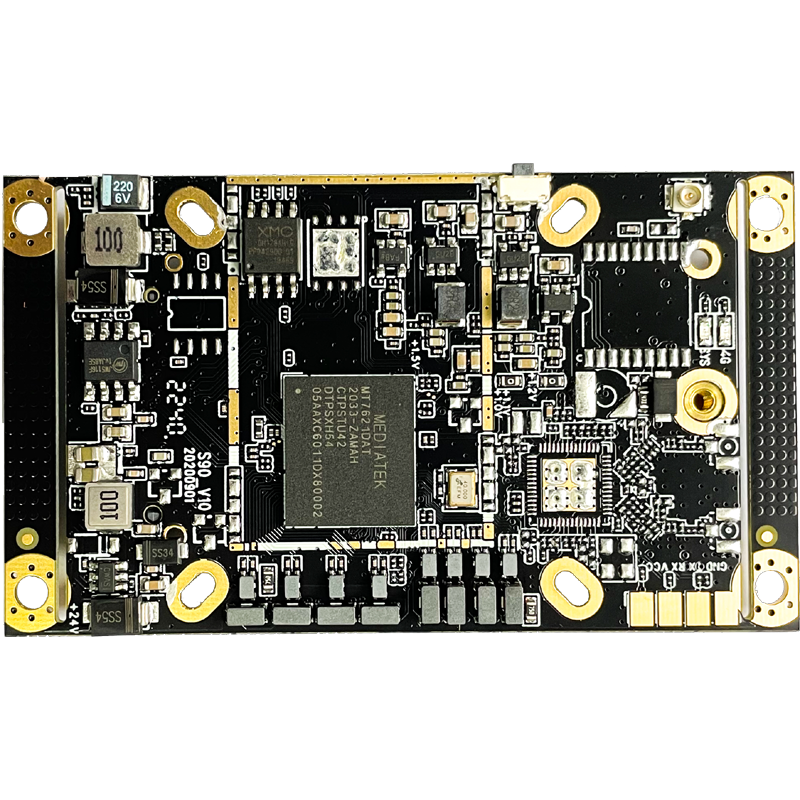

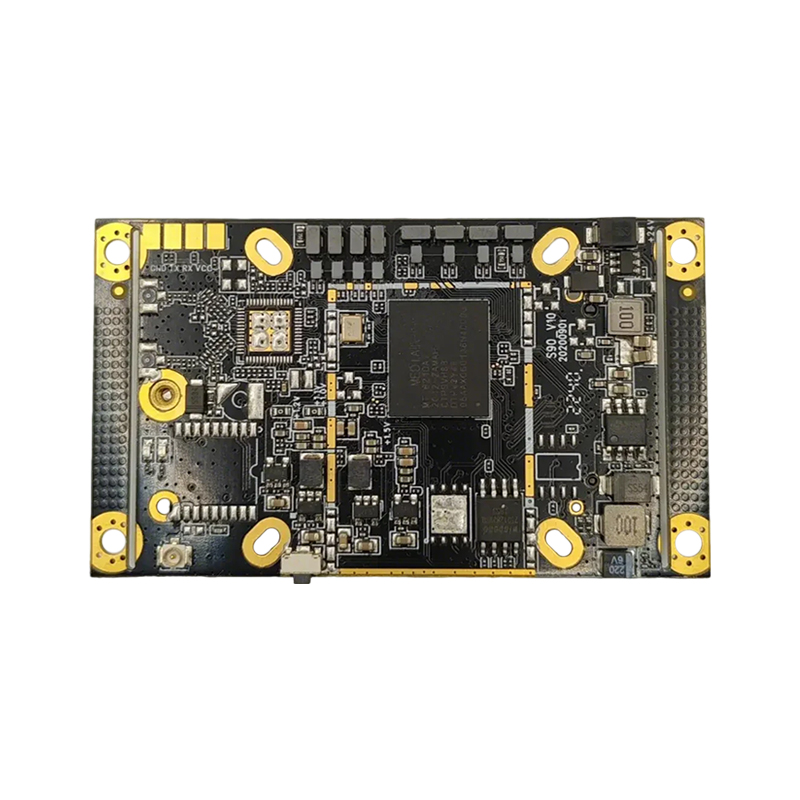

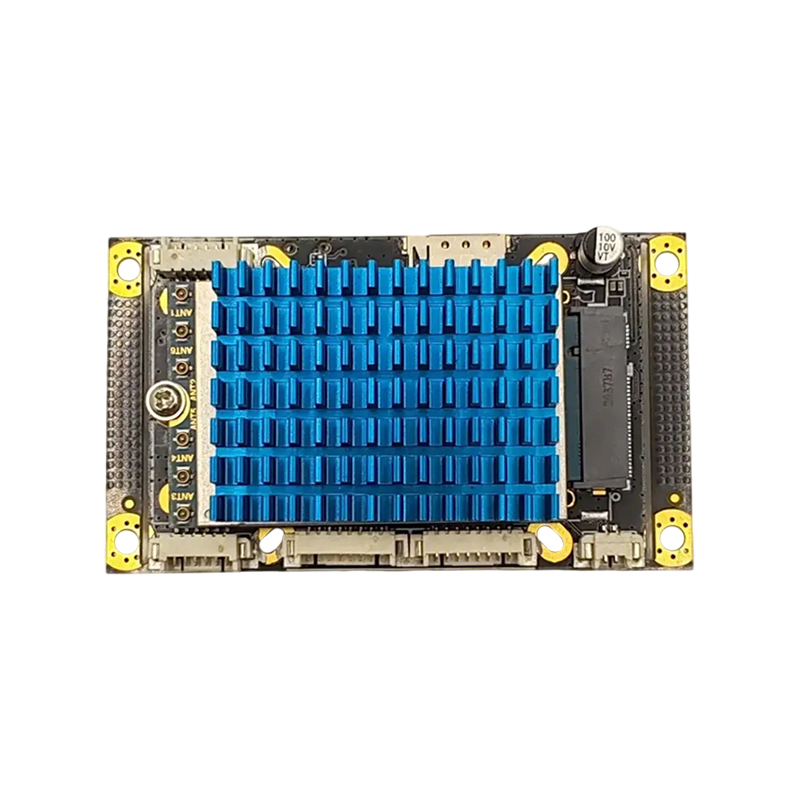

3. Product Diagram：

interface definition：

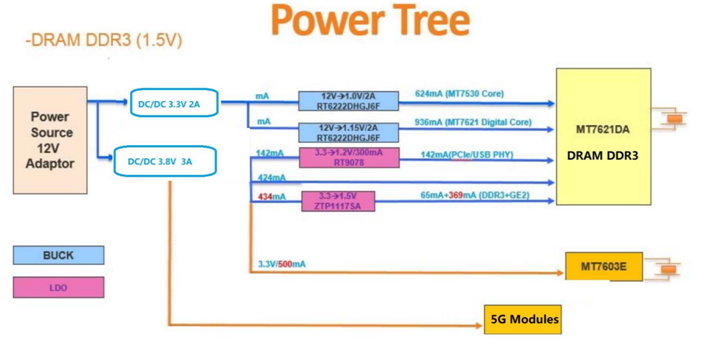

4. PCBA Block Diagram：

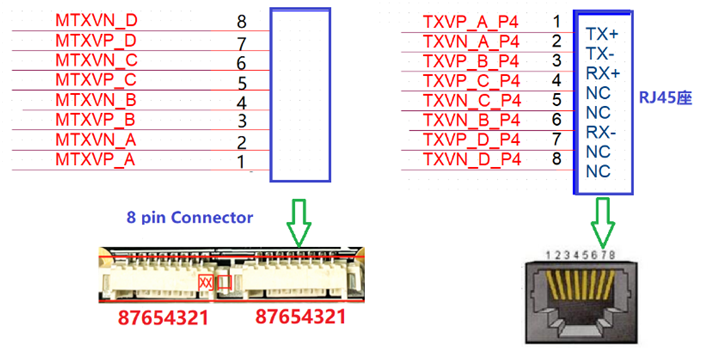

Note: Network port line sequence

Default: TX3 and RX3 are RS232 interfaces. RX2 and TX2 are RS485 interfaces

5. Hardware parameters

Interface
Ethernet interface	2 * 10/100/1000Mbps Fast Ethernet interface, WAN/LAN adaptive (2 LANs in 5G mode)
Wi-Fi interface (optional)	The universal version is not supported by default
Industrial serial interface	RS232/RS485 x 1 Industrial terminal RS232 ：TXD、RXD、GND RS485 ：A、B、GND
SIM card holder	MICRO pop-up SIM card holder
Antenna connector(optional)	Onboard WiFi antenna base IPEX x 2
Reset Key	1
Mechanical properties
Installation method	Positioning column

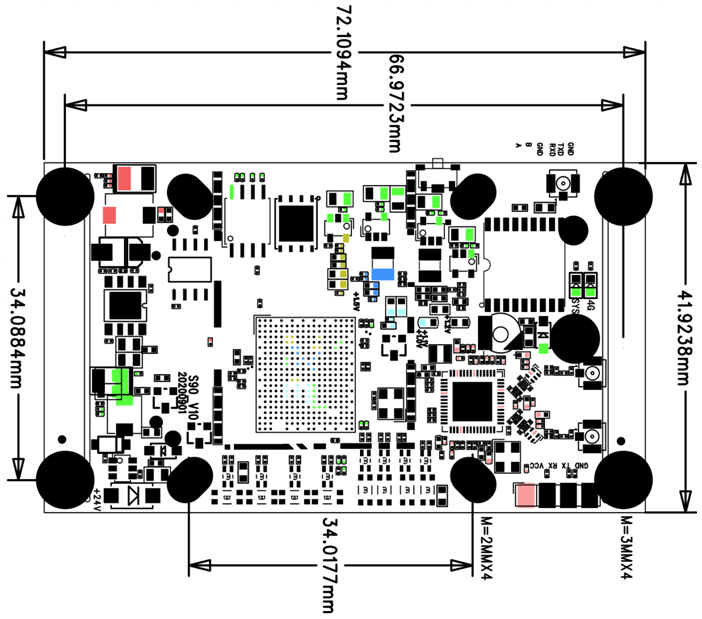

External dimensions	LWH：73428 （mm)
Weight (g)	14g(bare board)，22g in total with 5G module
Power
Power interface	2pin terminal power supply socket (1.25mm spacing)
power input	DC 5-24V
Wi-Fi Transmission power (optional),The universal version is not supported by default
Transmission power	802.11n HT20 MCS7 : +13.5dBm 802.11n HT40 MCS7 : +13.5dBm 802.11b CCK: +18 dBm 802.11g OFDM: +13.5dBm
Data rate	802.11n: up to 300Mbps 802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Receiver sensitivity	-66dBm at 150Mpbs -73dBm at 54Mpbs -86dBm at 11Mpbs
Environmental temperature and humidity
Ambient humidity	5 ~ 95% （No frost）
storage temperature	-40 ~ 85℃
operation temperature	-20°C ~ +75°C
Other
LED Light	SYS system running light: Flashing once every second indicates that the system is running normally Flashing indicates that firmware is being upgraded or the reset button is being pressed to reset 5G external network connection light: When in 5G mode, flashing indicates that 5G is dialing Long on, indicating successful internet access through WAN port Long off, indicating WAN connection failure

6. Software Function

Network interconnection
network access	5G dial-up internet, supporting APN and VPDN. Built in with hundreds of global APN information, the router can automatically match internet access after inserting a SIM card
Access authentication	Support CHAP/PAP/MS-CHAP/MS-CHAPV2/none
Network standard	Support SA/NSA, LTE/WCDMA(HSPA+)/EVDO/EDGE/GPRS
LAN Protocol	Support ARP, Ethernet，STP
WAN Protocol	Support static IP, DHCP, PPPoE，PPTP,L2TP
Number of supported users	wired：253，Wireless：32(optional)
Network protocol
IP application	Support Ping, Traceroute, DHCP server/wireless relay/client, DNS relay, dynamic domain DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, IPv6
IP routing	Support static routing and IGMP Proxy
TTL	Customize the TTL value of the client host
Network security
Firewall	Support full state packet inspection (SPI) to prevent denial of service (DDoS) attacks
	Support filtering multicast/Ping packets, access control list (ACL)
	DMZ, MAC filtering, whitelist/blacklist access control
	Support NAT, PAT, DMZ, port mapping, virtual servers
AAA	Support local authentication and Radius
Data security	Support L2TP、PPTP、OpenVPN、CA
Reliability
Backup function	Interface backup, 5G, wired or relay network disconnection mutual backup
Link online detection	5G status detection, automatically redial when disconnected or signal is poor
	Definition of interval time for VPN disconnection and redialing, and control of dialing frequency
	WAN sends heartbeat detection packet for automatic connection upon disconnection
	Scheduled restart
Bridge with multiple gateways	Supports multiple LAN settings, the router has two gateways (two internal networks)
WLAN（Optional），The universal version is not supported by default
Wireless 2.4GHz	Support IEEE 802.11b/g/n
	Support wireless area code (country/region channel) selection
	WiFi activation time control
	SSID broadcast time control
	Support transmission power adjustment
	Single and dual antenna (150Mbps, 300Mbps rate) control
	Support Radius authentication
	Visitor Network: Visitor WIFI can be set up to manage visitor internet behavior
	Wireless bridging: can bridge other WIFI (WDS bridging, etc.)
	Wireless access control: can control internet access for MAC (black and white list)
Internet of Things
DTU	Supports TCP, UDP transparent transmission mode, TCP Server mode, and instruction mode
Secondary development (edge computing)
shell script	Custom script function, implementing custom management of routers and related functions
Interface	The router provides a secondary development parameter interface (HTTP), such as obtaining router status, setting router related functions, etc. Convenient for mobile app, mini program, and cloud server development
Network management
collocation method	Supports local or remote HTTP, HTTPS, Telnet, SSH methods, and internal network penetration methods
Upgrade method	Support local or remote WEB, TFTP, FTP, SFTP server, intranet penetration remote
Log function	Support local system logs and remote logs. Important logs saved in case of power failure
Log function	Support saving logs in case of power failure
