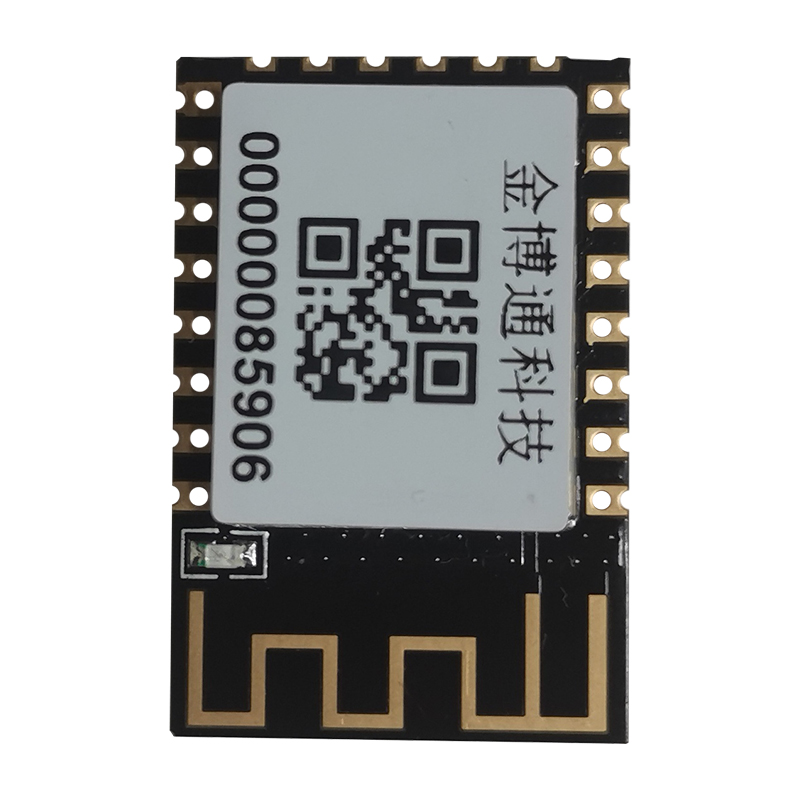

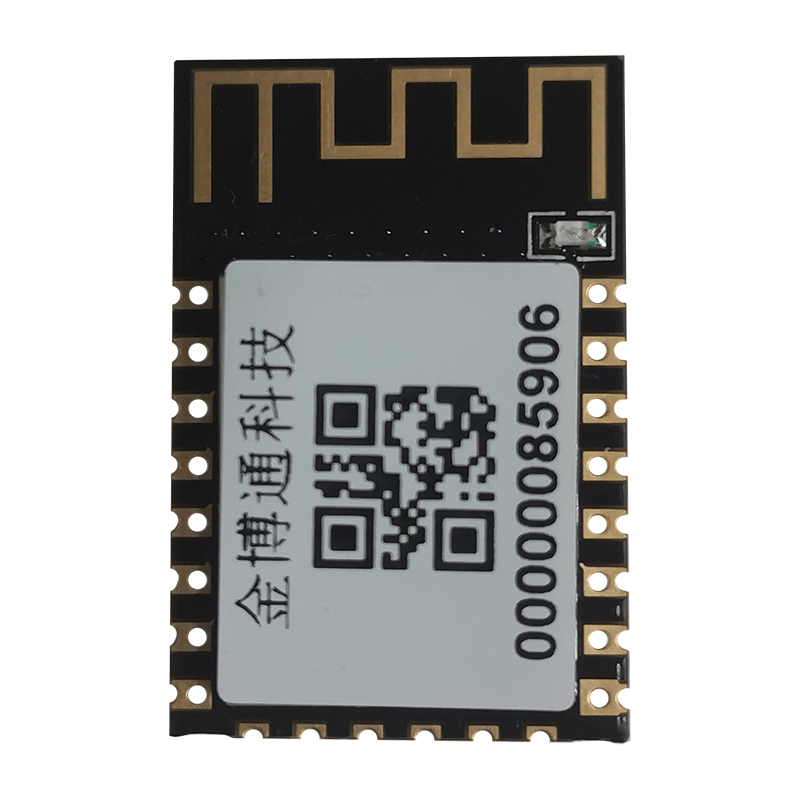

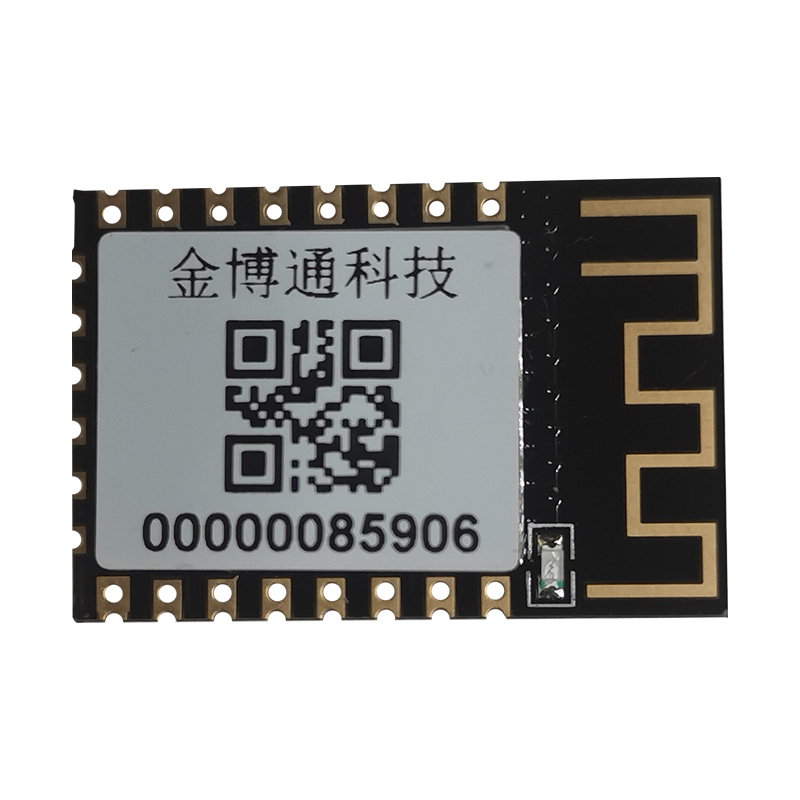

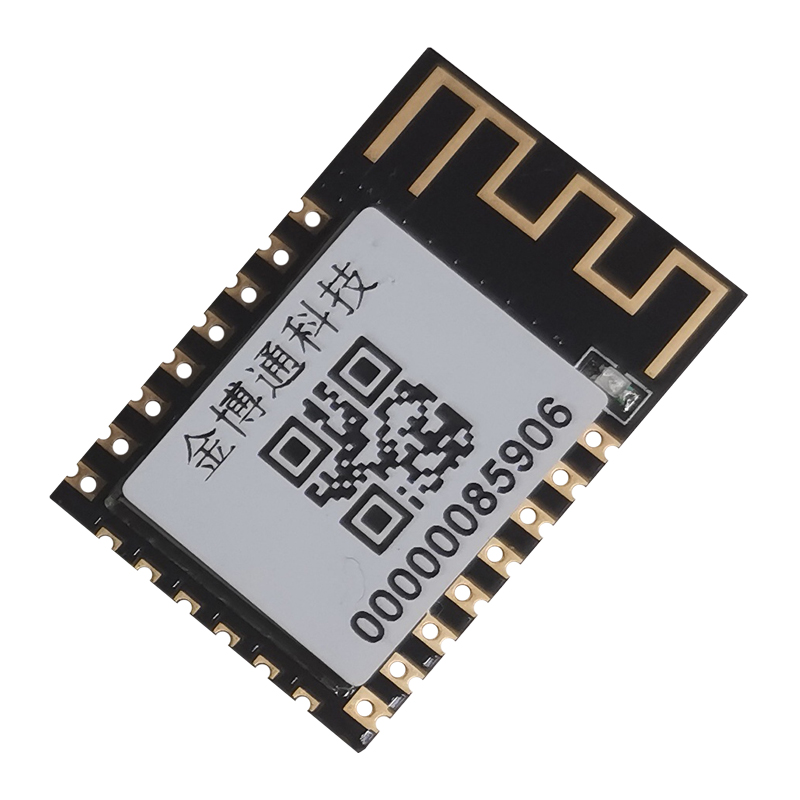

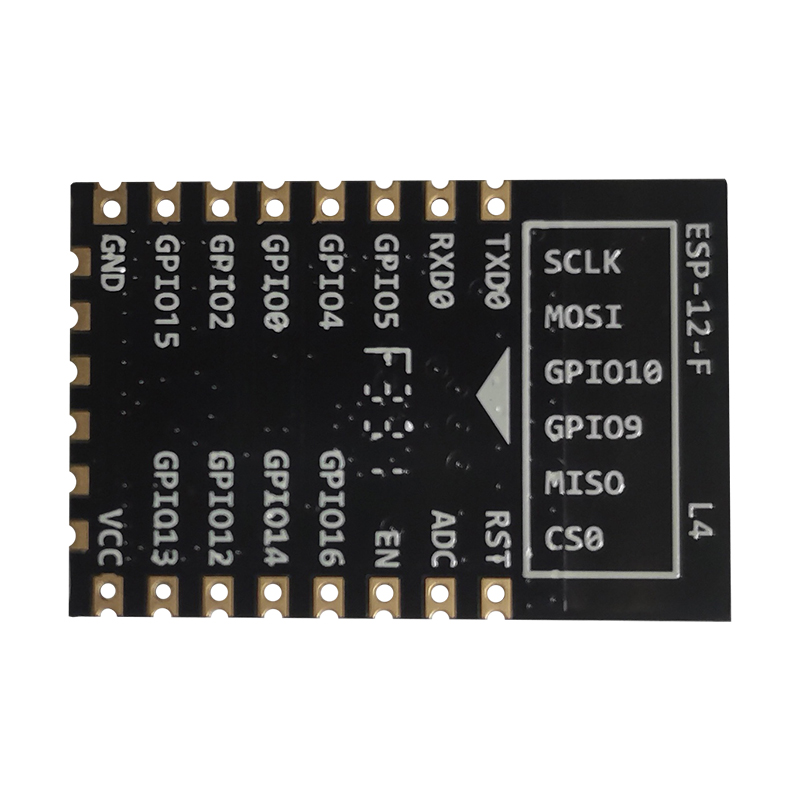

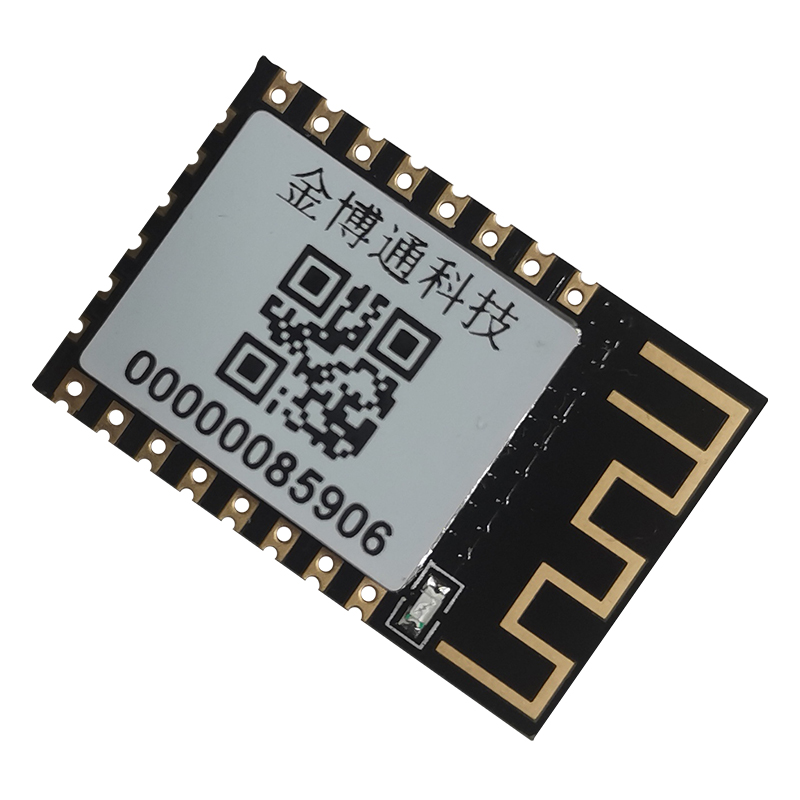

    KB3077 wifi Module(software included)

    Features:

    Environmental parameters and dimensions
    Working temperature: -20-70 ℃
    Working humidity: 10% -90% RH (non-condensing)
    Storage temperature: -40-80 ℃
    Storage humidity: 5% -90% RH (non-condensing)
    Length, width and thickness: 23 * 19.5 * 4mm
    Pin size: standard 2.0m pitch

    Hotline:
    400-6608-108

    1. KB3077 Wifi module introduction
    KB3077 is a new embedded UART-WiFi (serial port-wireless network) module introduced by Kingbot Technology. Built-in TCP / IP protocol stack, can realize the conversion between user serial port and wireless network (WiFi) interface.
    Users can use the mobile phone or PC to communicate with the local area network through the KB3077 module, or connect it to a nearby WiFi router for remote communication between the mobile phone PC and the Internet, providing complete data transmission for the user's serial device through the network. Quick solution.
    Main features:

    Including software, plug and play, serial data transmission, users do not need at command secondary development;

    With invention patent, mature software system, users do not need to deal with the connection with router AP, public network server and other issues; at the same time, support users to develop customized software;

    A variety of working modes, users choose according to their needs;

    It can be based on AP mode or station mode;

    LAN and Internet communication coexist at the same time;

    The network end can be based on either server or client;

    Support SmartLink one key distribution network;

    The IP address of WiFi module can be obtained through broadcast instruction in LAN;

    The parameter configuration is convenient and flexible, and supports three configuration modes: serial port at configuration, LAN configuration and Internet configuration;

    Equipped with internet communication platform (cloud data server);


    2.KB3077 Wifi module technical parameters
    Network standard
    Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    Wireless transmission rate
    11n: up to 150Mbps
    11g: up to 54Mbps
    11b: up to 11Mbps
    Number of channels
    1-14
    Frequency Range
    2.4-2.484G
    Transmit power
    15-19DBM
    interface

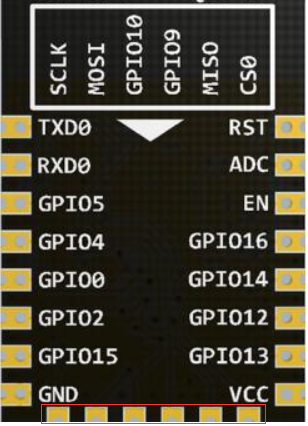

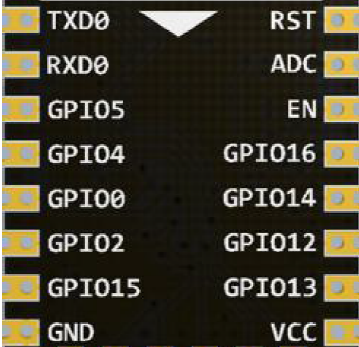

    1 serial port, 11 GPIO (reserved 8), support (multiplexed GPIO) SPI, I2C, I2S, IR Remote Control, PWM
    antenna
    Antenna type

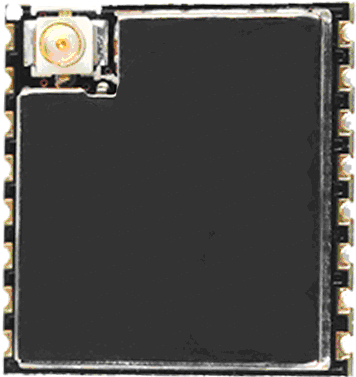

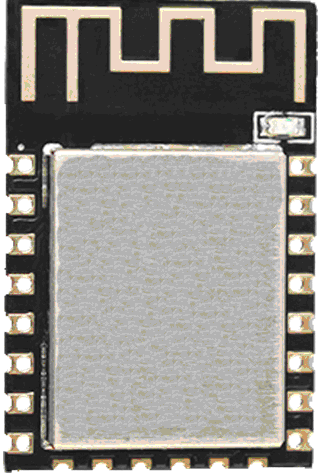

    On-board antenna (KB3077-A Wifi module) / external antenna (KB3077-B Wifi module)
    Function parameter
    WiFi working mode
    Wireless network card / wireless access point / wireless router
    Wireless security
    WEP / TKIP / AES encryption
    WPA / WPA2 security mechanism
    Serial to network
    TCP connection
    Maximum number of connections 5
    UDP connection
    Maximum number of connections 5
    Serial baud rate
    300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 74880, 115200, 230400, 460800, 921600, 1843200, 2686400.
    3.KB3077 Wifi module specifications
    3.1 Electrical parameters
    Working voltage: DC 5V / 3.3V
    Power consumption:
    The following power consumption data is based on a 3.3V power supply, an ambient temperature of 25 ° C, and is measured using an internal voltage regulator.
    [1] All measurements are done at the antenna interface without SAW filters.
    [2] All transmission data is based on a 90% duty cycle, measured in continuous transmission mode.
    Note①: Modem-Sleep is used for applications that require the CPU to always be in a working state, such as PWM or I2S. When keeping the WiFi connection, if there is no data transmission, according to the 802.11 standard (such as U-APSD), turn off the WiFi Modem circuit to save power. For example, in DTIM3
    When every 300mS sleep, wake up 3mS to receive AP's Beacon packets, etc., the overall average current is about 15mA.
    Note ②: Light-Sleep is used in applications where the CPU can be suspended, such as WiFi switches. When keeping the WiFi connection, if there is no data transmission, according to the 802.11 standard (such as U-APSD), close the WiFi Modem circuit and suspend the CPU to save power. For example, in DTIM3, every 300ms of sleep and 3ms of wake-up to receive Beacon packets of AP, etc., the overall average current is about 0.9mA.
    Note ③: Deep-Sleep does not need to keep the WiFi connection all the time, it only sends a packet of data for a long time. For example, a sensor that measures the temperature every 100 seconds. For example, when you wake up every 300 s and need to connect to the AP to send data in 0.3-1s, the overall average current can be much less than 1mA.
    3.2 Environmental parameters and dimensions
    Working temperature: -20-70 ℃
    Working humidity: 10% -90% RH (non-condensing)
    Storage temperature: -40-80 ℃
    Storage humidity: 5% -90% RH (non-condensing)
    Length, width and thickness: 23 * 19.5 * 4mm
    Pin size: standard 2.0m pitch
