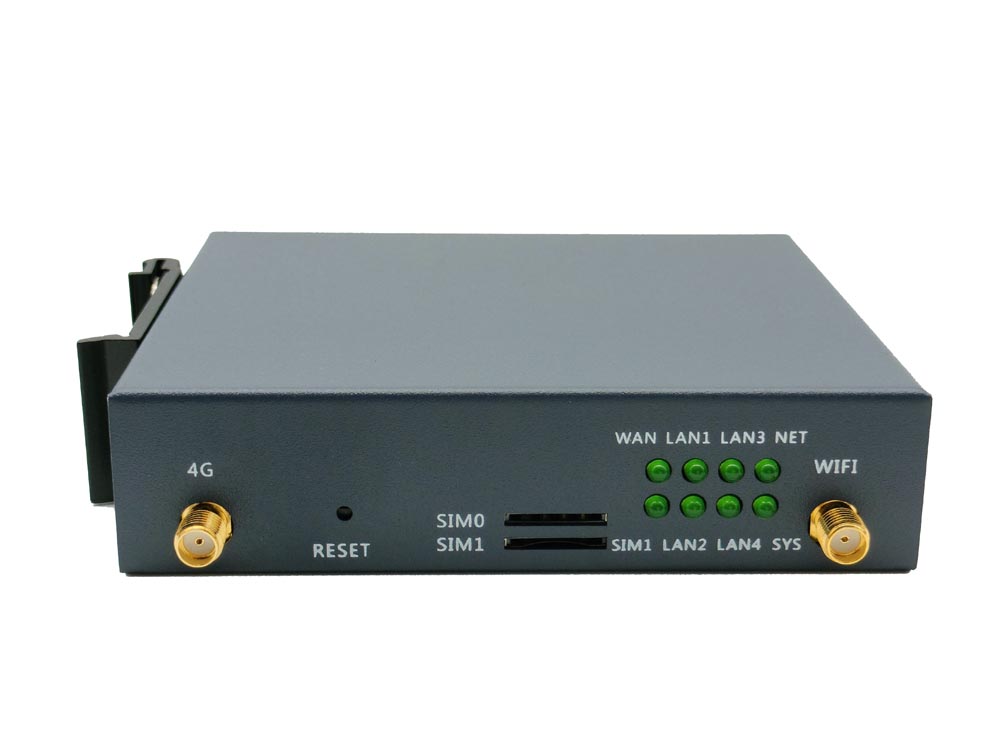

Interface

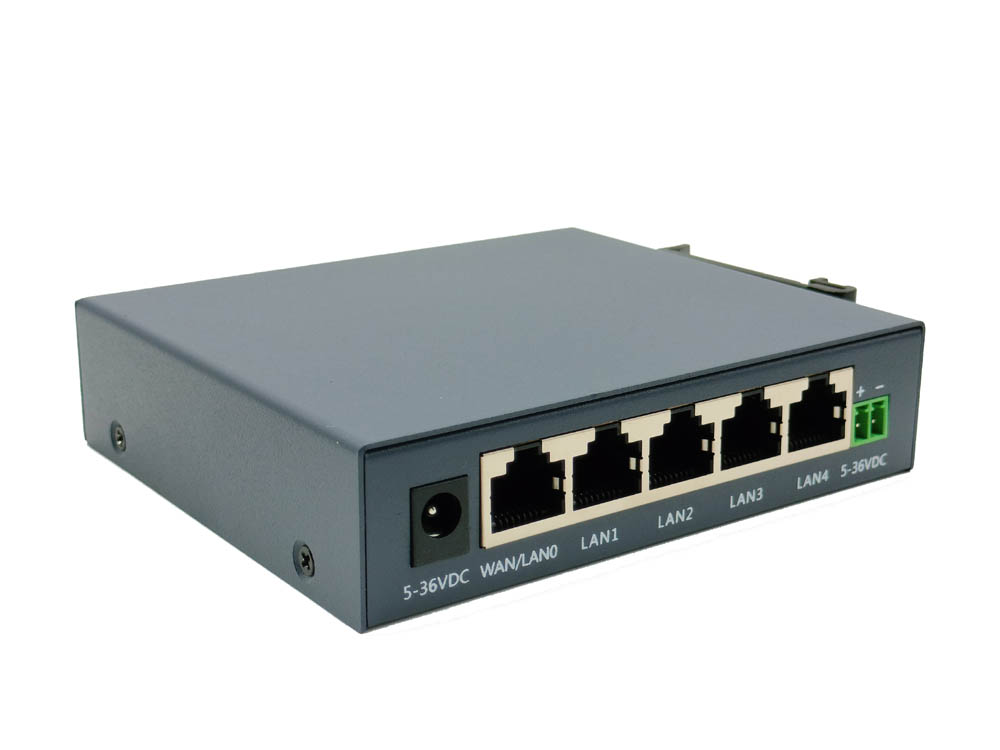

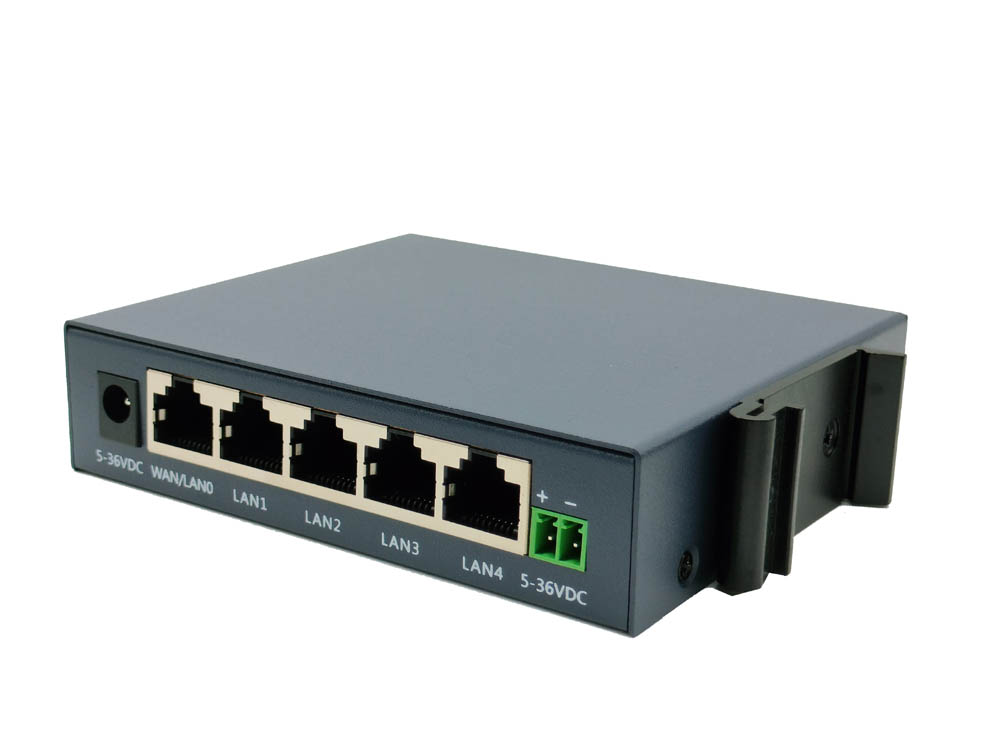

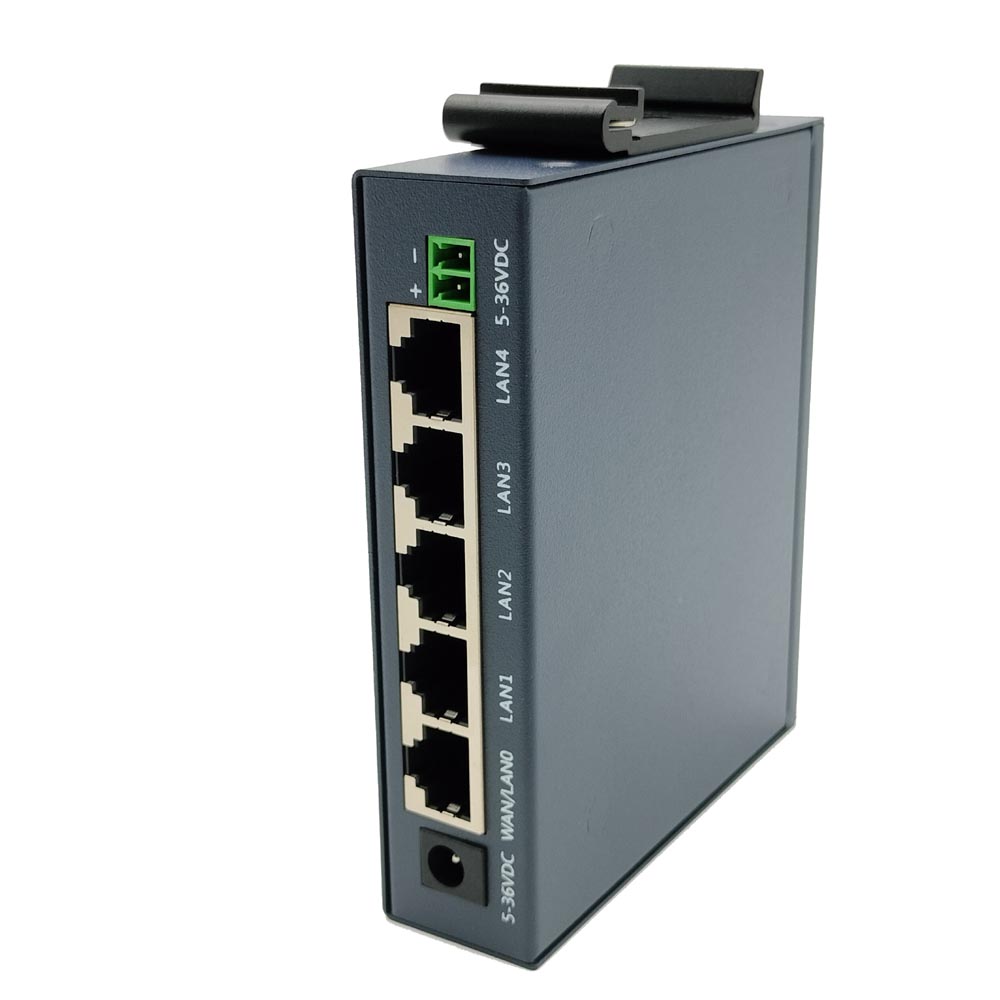

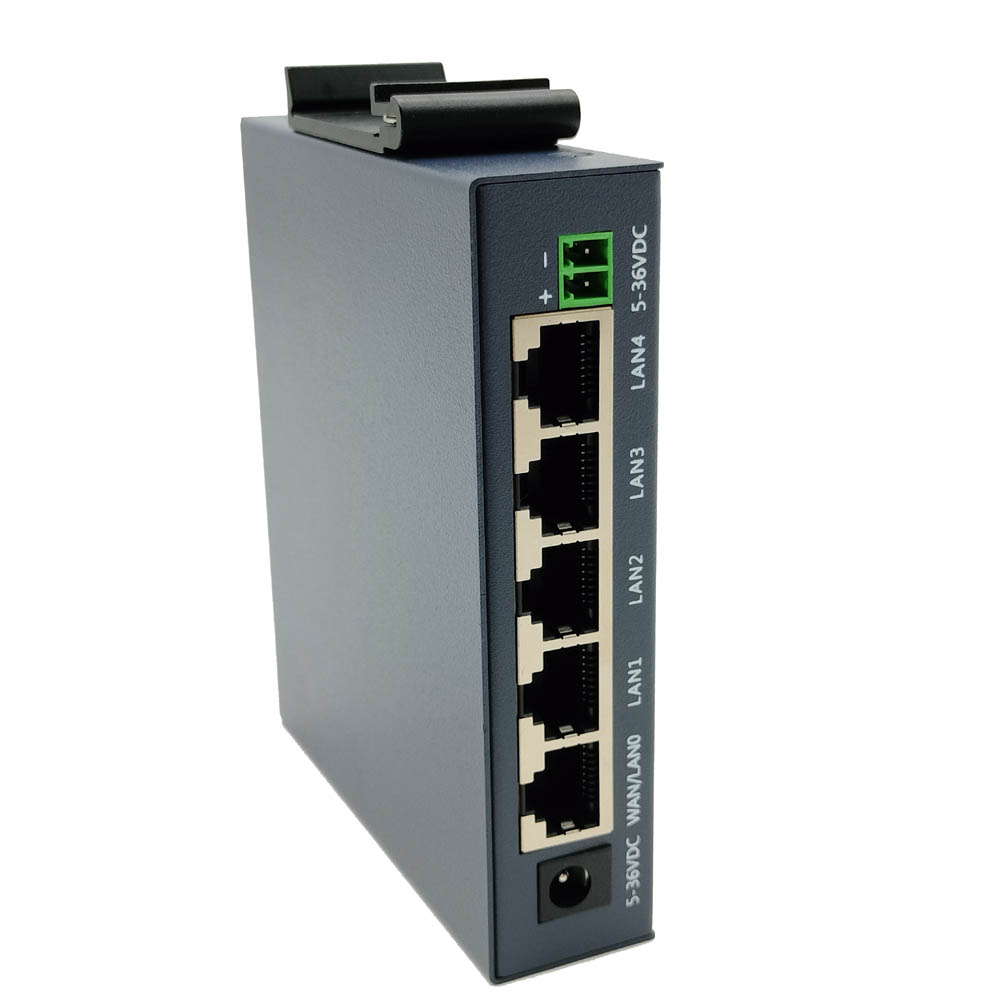

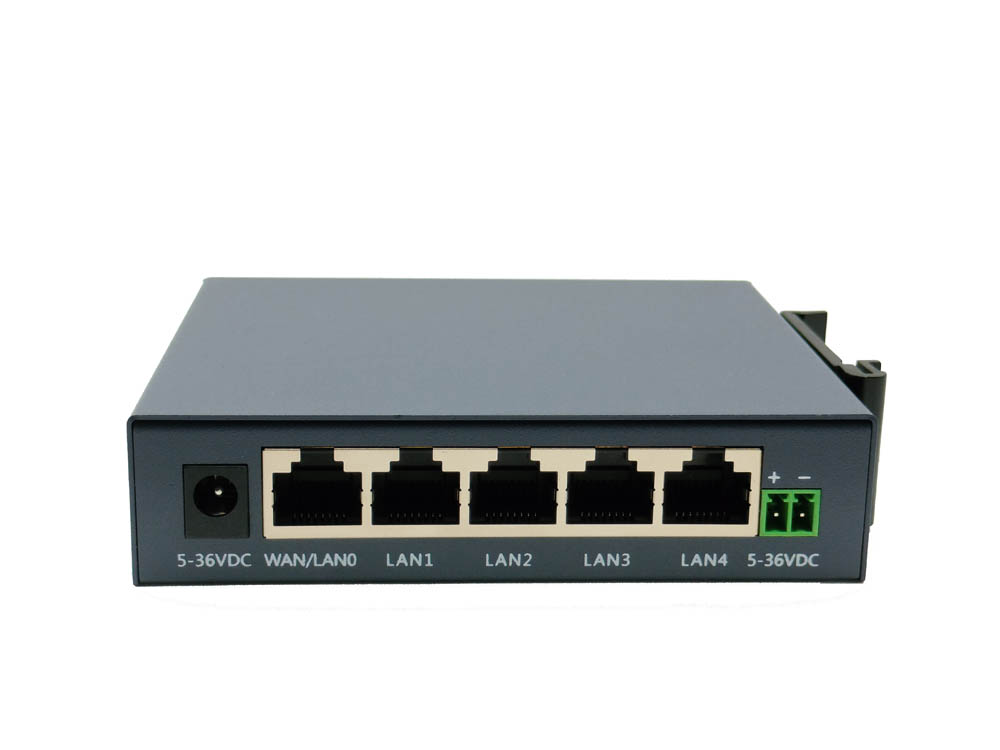

Ethernet interface

5* 10/100Mbps Fast Ethernet interface, WAN/LAN adaptive (4 LANs in 4G mode)

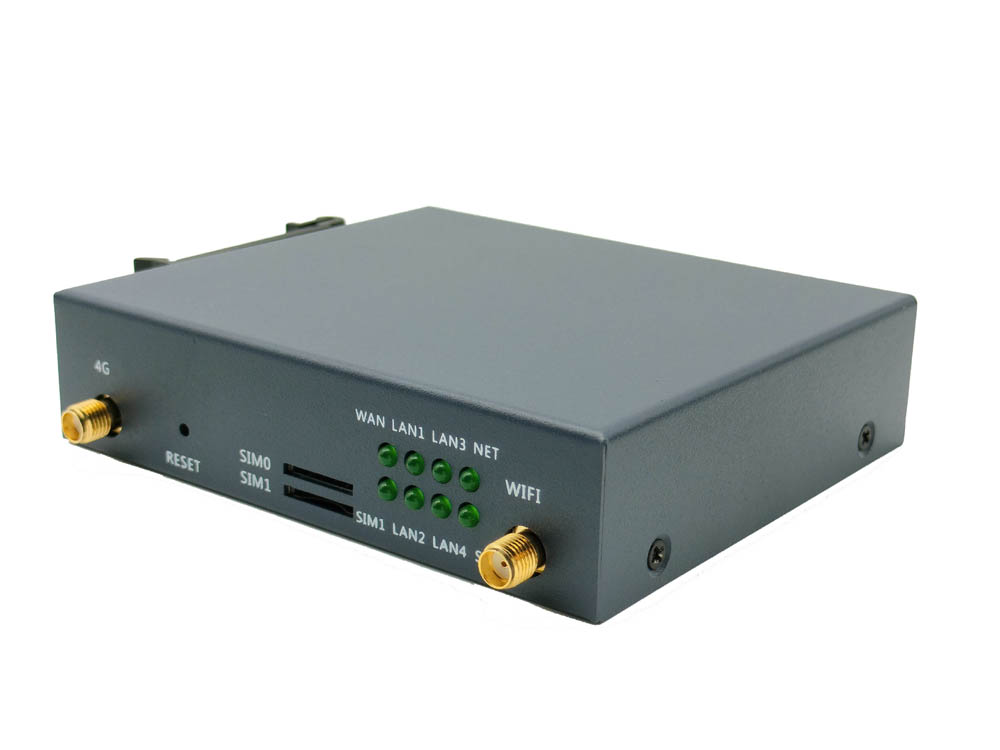

SIM card holder

MICRO SIM x 2

Antenna connector

SMA external rotation inner hole:

3G/4G network: SMA x 1

WIFI network: 1

Reset button

1

Mechanical properties

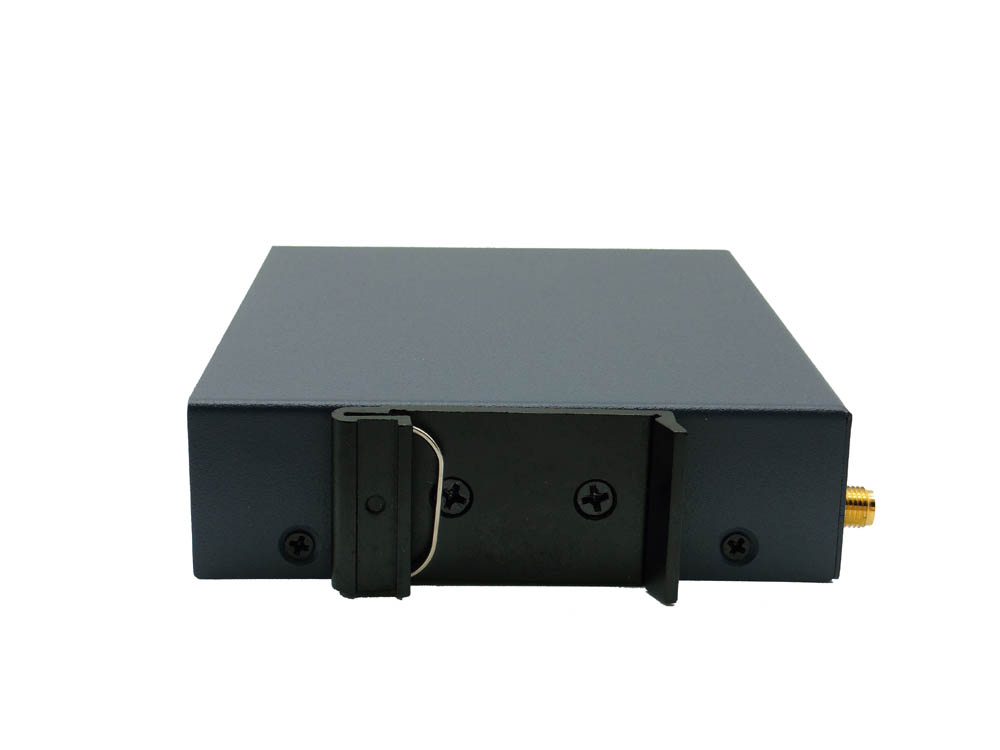

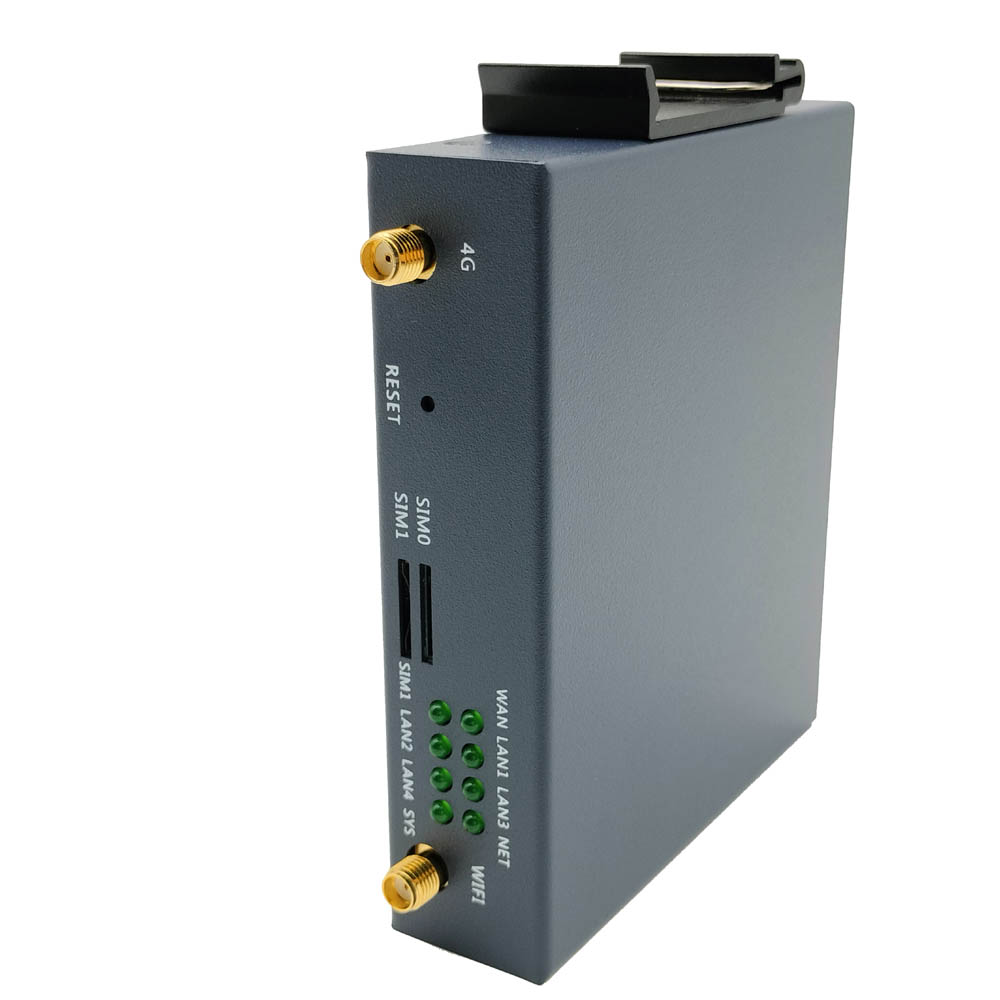

Installation method

rail, wall mount

Dimensions

Length, width and height: 118*95*25mmmm (excluding antenna interface)

shell

Aluminum alloy

Protection class

IP40

cooling method

Thermally conductive silicone shell for heat dissipation

Weight (g)

175g

power supply

Power interface

Terminal block

power input

DC5～36V, anti-reverse polarity protection

reverse polarity protection

Support

Ambient temperature and humidity

environment humidity

5 ~ 95% (no frosting)

storage temperature

-40 ~ 85℃

Operating temperature

-40°C ~ +75°C

Wi-Fi

Transmit power

802.11n HT20 MCS7 : +13.5dBm

802.11n HT40 MCS7 : +13.5dBm
802.11b CCK: +18 dBm
802.11g OFDM: +13.5dBm

Data rate

802.11n: up to 300Mbps
802.11b: 1, 2, 5,5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

Receiver Sensitivity

-66dBm at 150Mpbs
-73dBm at 54Mpbs
-86dBm at 11Mpbs

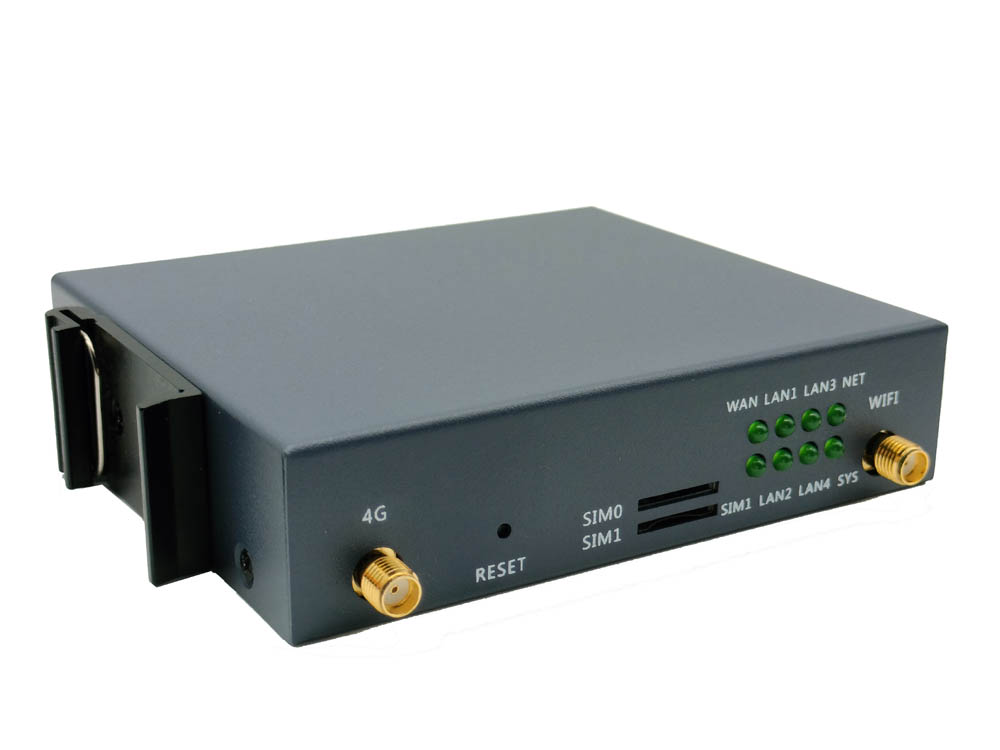

LED

SYS system running indicator:

Flashes once per second, indicating that the system is running normally

Flashing quickly indicates firmware is being upgraded, or the reset button is being pressed to reset

NET external network connection indicator:

In 4G mode, flashing quickly indicates that 4G is dialing

Steady on, indicating that the WAN port is successfully connected to the Internet

Long off, indicating that the WAN port fails to access the Internet

network interconnection

network access

3G/4G dial-up Internet access, support APN, VPDN. Built-in hundreds of APN information around the world, after inserting the SIM card, the router can automatically match the Internet

access authentication

Support CHAP/PAP/MS-CHAP/MS-CHAPV2/none

network standard

Support LTE/WCDMA(HSPA+)/TD-SCDMA/EVDO/EDGE/GPRS

LAN protocol

Support ARP, Ethernet，STP

WAN protocol

Support static IP, DHCP, PPPoE, PPTP, L2TP

Number of users supported

Wired: 253; Wireless:32

Network protocol

IP application

Support tcping, ping, traceroute, DHCP server/wireless relay/client, dynamic domain name DDNS, telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, IPv6

IP routing

Support static routing, IGMP Proxy

TTL

Custom client host TTL value

Network security

firewall

Support stateful packet inspection (SPI), prevent denial of service (DDoS) attacks

Supports filtering of multicast/Ping packets, Access Control List (ACL)

DMZ, MAC filtering, whitelist/blacklist access control

Support NAT, PAT, DMZ, port mapping, virtual server

Data Security

Support L2TP、PPTP、OpenVPN、CA

reliability

Backup function

Interface backup, 4G, wired and disconnected network backup

Link online detection

4G status detection, automatic redialing when disconnected or bad signal

VPN disconnection redial interval definition, and dialing times control

WAN side sends heartbeat detection packet detection, automatic connection when disconnected

timed restart

Bridge Multi-Gateway

Support multi-LAN setup, the router has two gateways (two intranets)

Secondary development

shell script

Custom script function to achieve custom management of routers and related functions

system interface

The router provides a secondary development parameter interface (http), such as obtaining the router status, setting router-related functions, etc. Convenient mobile APP, applet, cloud server development

network management

Configuration method

Support local or remote HTTP, HTTPS, Telnet, SSH, and intranet penetration

Upgrade method

Support local or remote WEB, TFTP, FTP, SFTP server, intranet penetration remote

log function

Support local system log, remote log. Important logs are saved when power off

Support log power-off saving
