Hardware Characteristics

Descriptions

Model

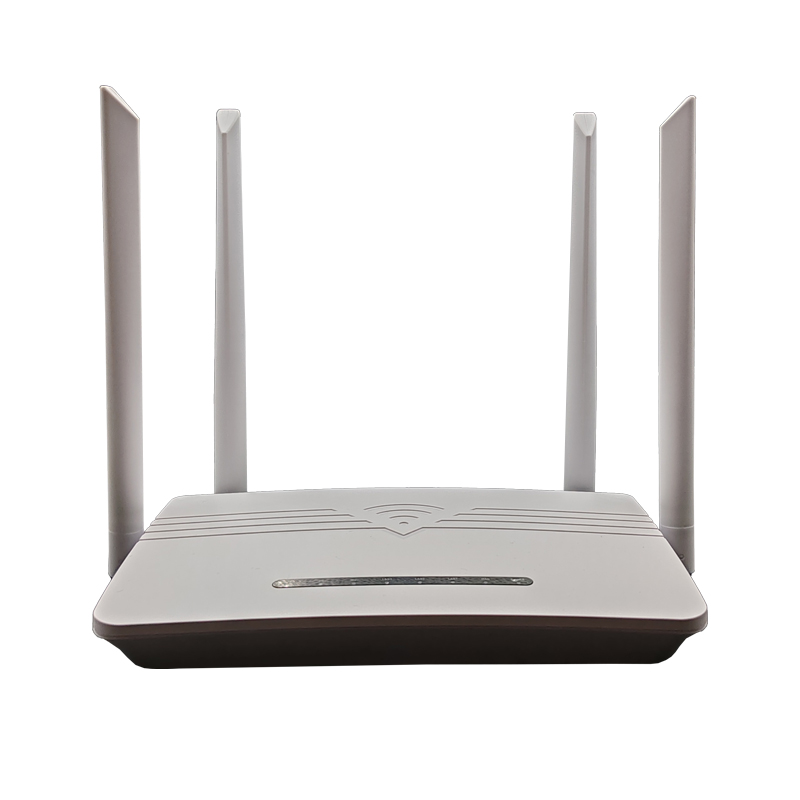

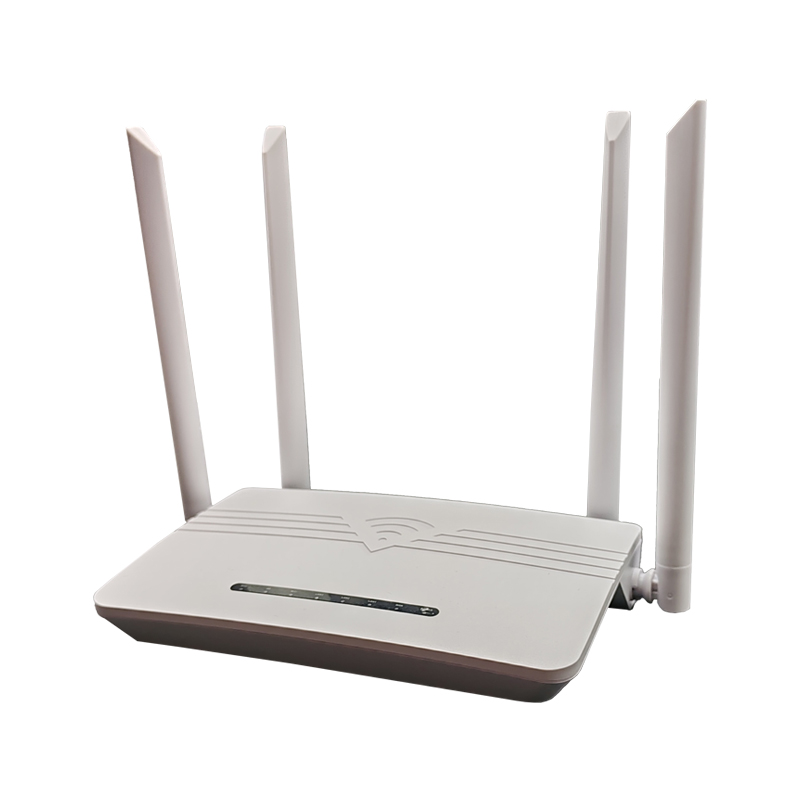

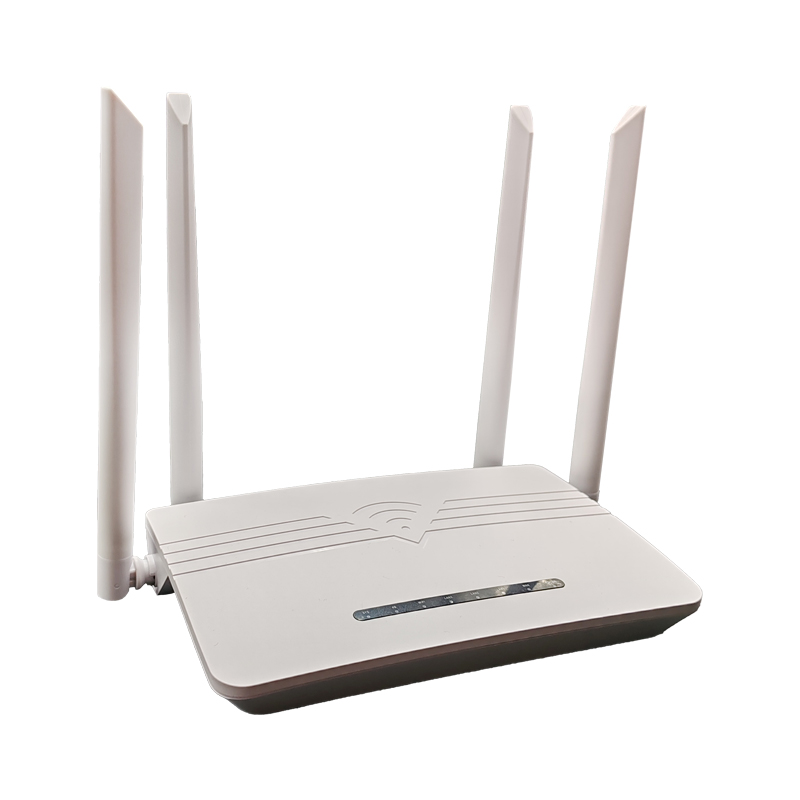

KB807

Chipset

ASR1803S

Power Supply Voltage

DC 12V 1A

Power Consumption

Normal Operation Power <3W;

Frequency Band

FDD LTE: B1/B3/B5 /B8（B7/B20/B28）

TDD LTE: B38/B39/B40/B41

WCDMA: B1/B5/B8

Rate

LTE-FDD： Max 150Mbps(DL) Max 50Mbps(UL) LTE-TDD： Max 130Mbps(DL) Max 35Mbps(UL) WCDMA: Max 7.2Mbps(DL) Max 5.76Mbps(UL)

WIFI Standard

802.11b/g/n , 2.4G (WiFi6 optional)

LTE Category

Cat4

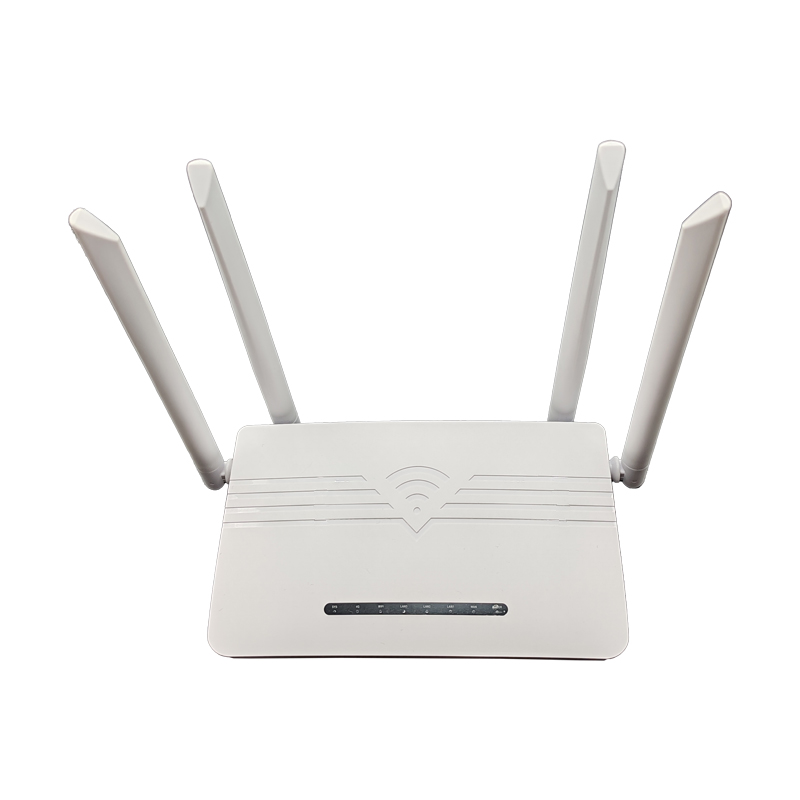

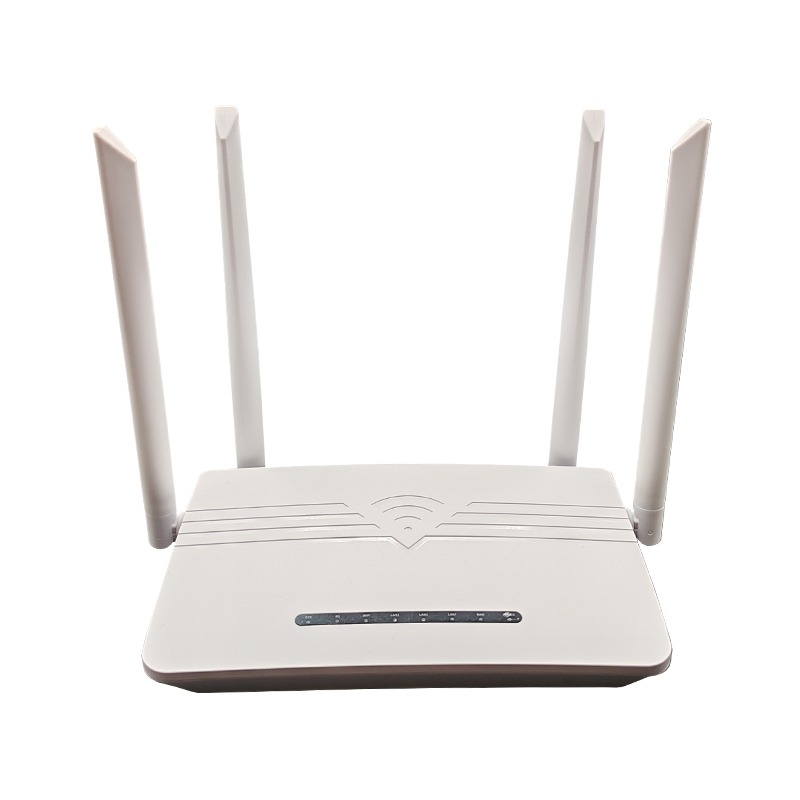

LED Indicators

Power LEDx1

4G Link LEDx1

WiFi LED x1

LAN LEDx4

SIM LEDx1

Network Interface

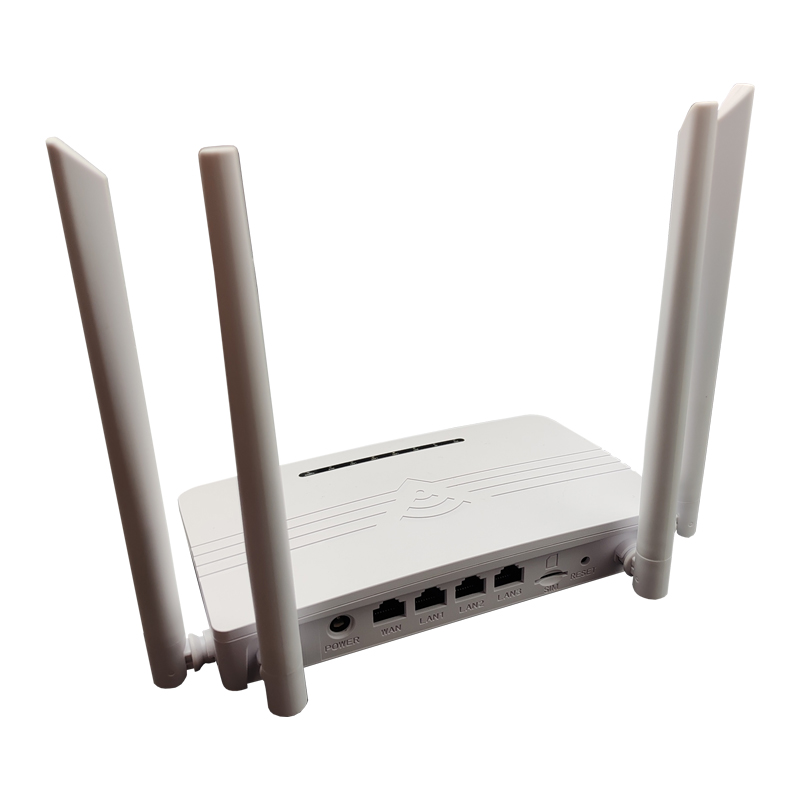

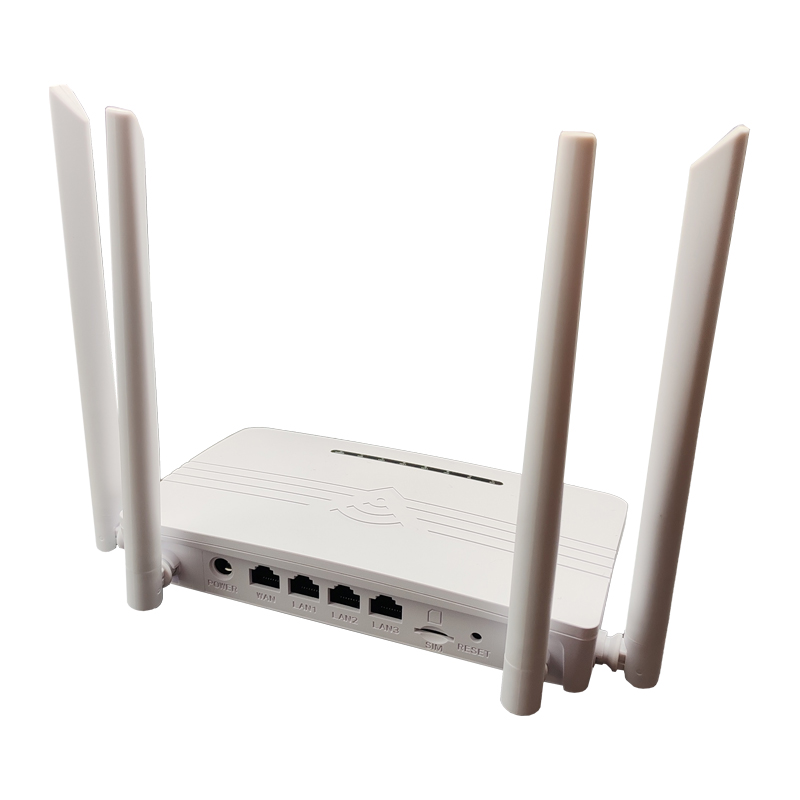

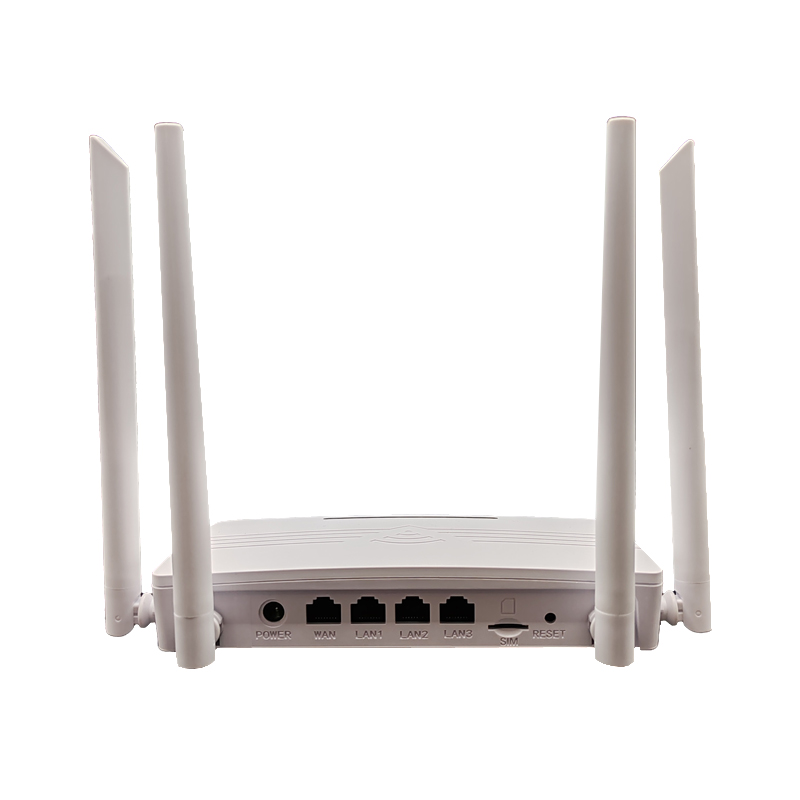

4 RJ45 LAN, 10/100Mbps, auto MDI/MDIX

WAN/LAN Switch

Support

Antenna

2*4G*5DBi, 2*2.4G WiFi*5DBi

USIM/SIM

Micro SIM card

ESIM

Optional

Reset Key

Long press 5s to restore the factory default setting

Working Temperature

-20°C－+60°C

Working Humidity

10%－95%RH

Storage Temperature

-40°C－+85°C
