1.1 Introduction

This router is an industrial IoT communication device, fully compatible with 4G/3.5G/3G/2.5G networks, with industrial-grade protection, wide temperature and wide voltage design, and can easily build high-speed and stableWireless transmissionNetwork. Use the public LTE network (or VPDN private network) to provide users with wireless long-distance data transmission services.

This router uses high-performance industrial-grade 32-bit communication processor and industrial-gradeCommunication Module, with embedded real-time operating system as software support platform,4Ethernet LANmouth, 1 Ethernet WANmouthAs well as WIFI interfaces, it can connect Ethernet devices and WIFI devices at the same time to realize dataTransparent transmissionand routing functions.

1.2 Application Areas

Industrial control, electric power, petroleum, coal mining, finance, communications, public security, heat, meteorology, water conservancy, transportation, municipal administration and other industries that require remote data transmission.

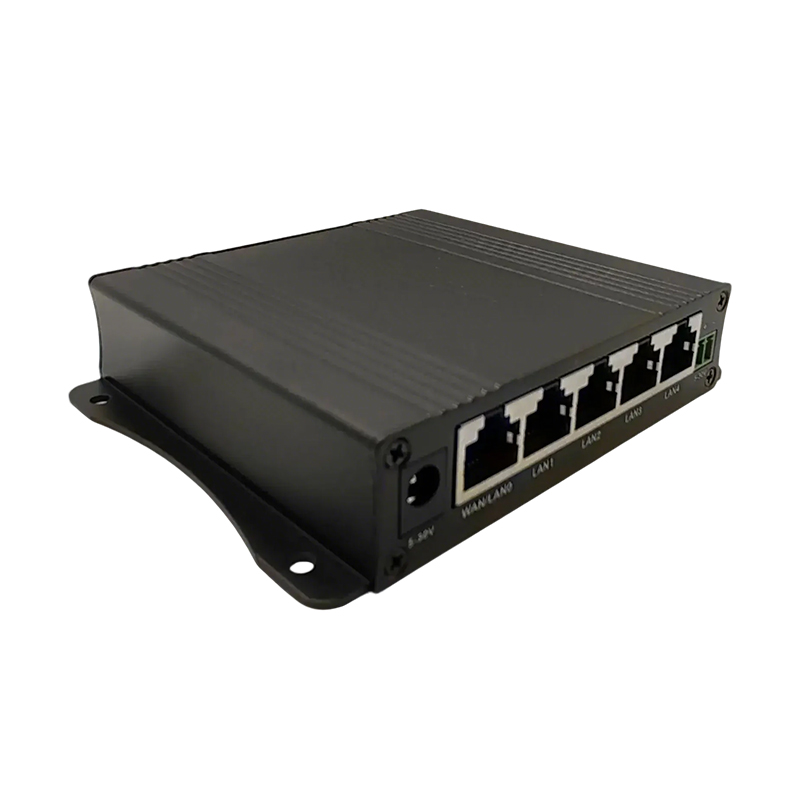

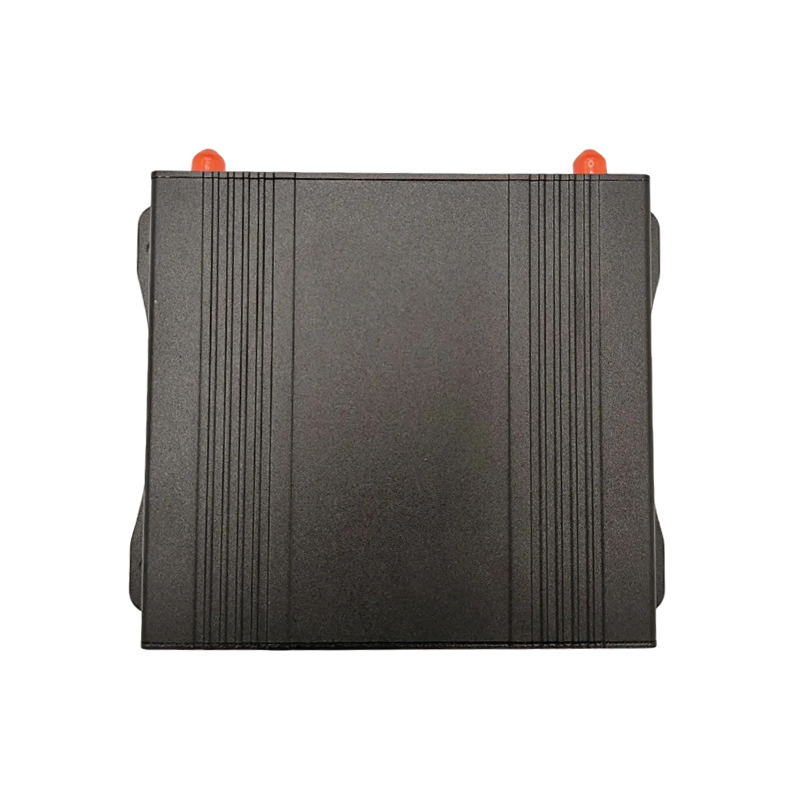

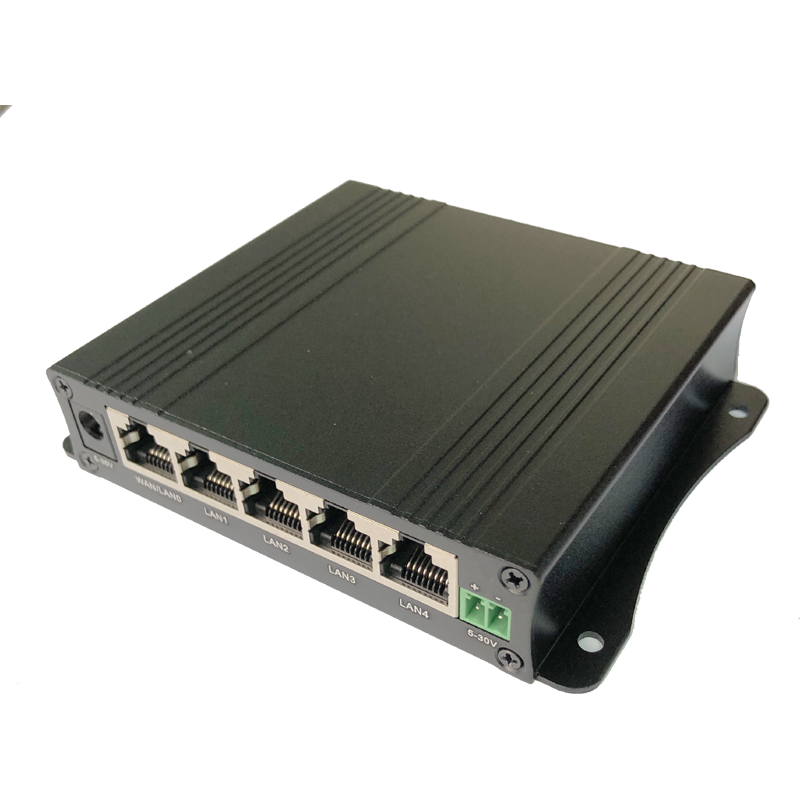

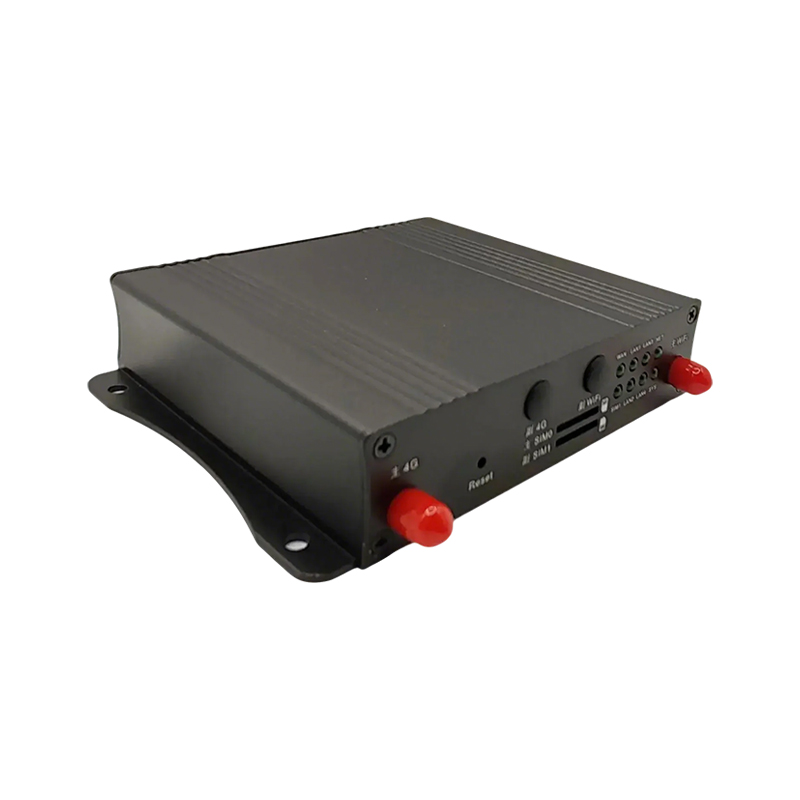

1.3 Product Illustrations

1.4 Features

1.      Adopt high-performance industrial-grade communication module

2.      Support 3G (WCDMA/EVDO/TD-SCDMA), 4G (FDD-LTE/TD-LTE)

3.      Metal casing, protection level IP30

4.      Standard RJ45 (Ethernet) interface with built-in lightning protection (6000V electromagnetic isolation included)

5.      Wide voltage and current input: DC9-30V/1A; ultra-high voltage automatic power-off protection

6.      Anti-power reverse connection protection, anti-surge protection; ESD anti-static protection

7.      soft,Hardware watchdog anti-crash design,ifrouterCrash due to special environment, it will automatically power off and restart to ensure stable and reliable operation of the equipment

8.      Automatic detection of network disconnection, automatic restart after dial-up failure, scheduled restart, etc.

9.      Support multiple DDNS dynamic domain name services

10.    Port mapping, DMZ host and other functions

11.    Support VPN clients PPTP Client, L2TP Client, OpenVPN Client

12.    Base station positioning function, etc.

2、Functional Overview

2.1 Software Features

2.2 Hardware Parameters

interface

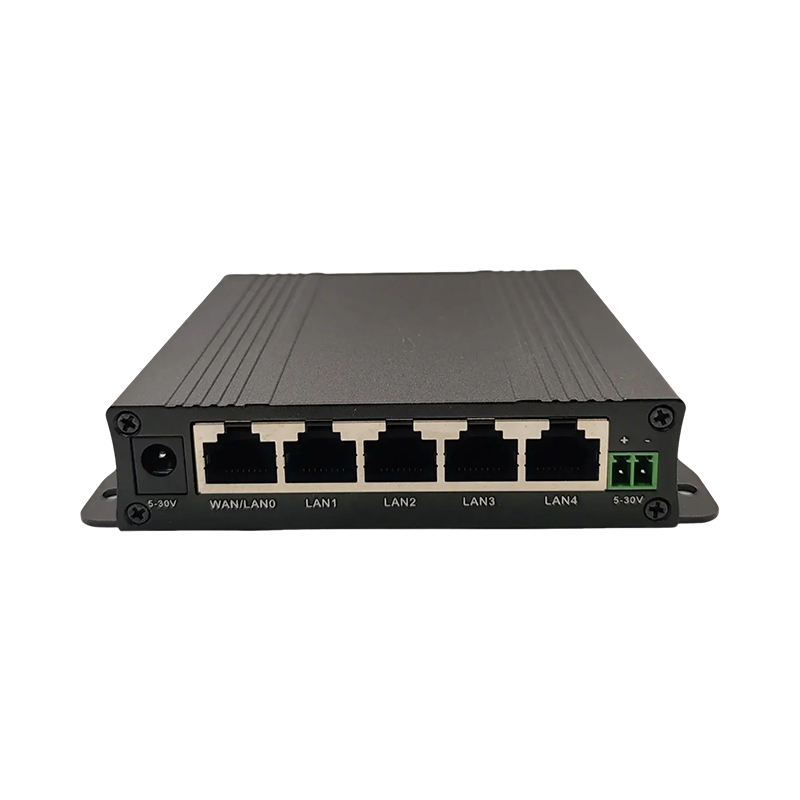

Ethernet interface	5* 10/100Mbps Fast Ethernet interface, WAN/LAN adaptive (5 LANs in 4G mode)
Wi-Fi interface	Optional, IEEE802.11b/g/n
SIM card holder	MICRO SIM x 2
Antenna connector	SMA external rotation inner hole: 3G/4G network: SMA x 2 (1 standard version) WLAN: SMA x 2 (Standard version 1
Reset button	1
Mechanical properties
Installation	Guide rail, wall mount
Dimensions	Length, width and height:118*95*25mm (excluding antenna interface)
shell	Aluminum Alloy
Protection level	IP30
cooling method	Heat conduction cotton shell heat dissipation
Weight(g)	175g (without antenna)
power supply
Power interface	DC2.1 Header 2pin terminal
power input	DC 9-30V, reverse connection protection
Standby power consumption	100mA@12V(LTE+network)
Working power consumption	150mA@12V(LTE+network)
Peak power consumption	200mA@12V(LTE+network)
Reverse polarity protection	support
Wi-Fi Transmit Power
Transmit power	802.11n HT20 MCS7 : +13.5dBm 802.11n HT40 MCS7: +13.5dBm802.11b CCK: +18 dBm802.11g OFDM: +13.5dBm
Data Rate	802.11n: up to 300Mbps802.11b: 1, 2, 5,5, 11Mbps802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Receiving sensitivity	-66dBm at 150Mpbs-73dBm at 54Mpbs-86dBm at 11Mpbs
Ambient temperature and humidity
environment humidity	5 ~ 95% (no condensation)
storage temperature	-40 ~ 85℃
Operating temperature	-20°C ~ +75°C
other

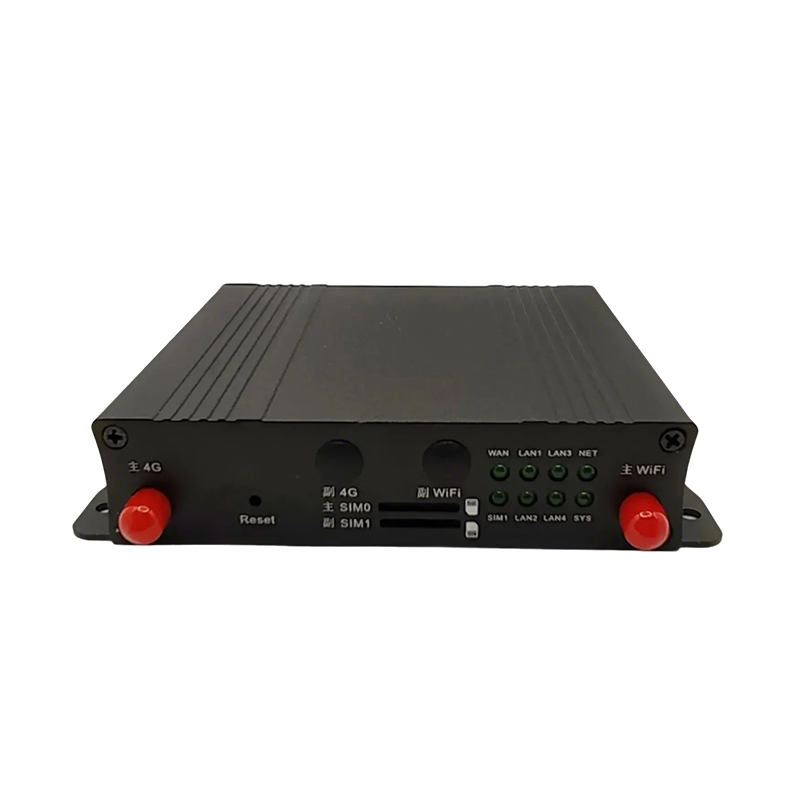

LED Light	SYS system operation indicator: Flashes once per second, indicating that the system is operating normally Flashing quickly means the firmware is being upgraded or the reset button is being pressed. NET external network connection indicator: In 4G mode, fast flashing means 4G is dialing. Long light, indicating that the WAN port is connected to the Internet successfully Slow flashing indicates a SIM card failure (e.g. the SIM card is not properly inserted, the system cannot find the SIM card) Long off, WAN connection failed SIM card switching indicator: The SIM card number currently in use Network port light, connect the corresponding port network cable, the corresponding LED lights up
Physical properties
shockproof	IEC60068-2-27
vibration	IEC60068-2-6
fall	IEC60068-2-32

3. Interface Description

4. Device block diagram (housing and mainboard)
