Software Function

Internet access method

3G/4G dial-up internet access  DHCP/Static IP/PPPoE

Operating system requirements

Windows XP/7/10, Linux 2.6 and above

MAC OS: 10.3.7 and above

LAN

Internal network settings: The gateway address of the router can be changed

DHCP server: Supports up to 253 LAN IP address assignments, and can also manually set fixed IP addresses.

WAN

External network settings: Supports multiple networking types: IPoE (dynamic), IPoE (static), PPPoE, PPTP, L2TP.

IPV6 settings

Port forwarding: Access information can be directed to a fixed port to achieve remote access to the lower computer function.

Isolation Zone (DMZ): When the open port of the virtual server that needs to be set is uncertain, it can be set as a DMZ host

Dynamic Domain Name Resolution (DDNS): allows you to access your internal network through domain names online even without a static IP address.

firewall

General settings: Activate firewall to protect internal network from hacker intrusion

URL filtering: Prohibit access to certain URLs

MAC access control: capable of controlling network access behavior for specific network card addresses (MAC).

Network service filtering: used to filter specific network services.

USB application program

3G/4G modem: Refers to 3G/4G settings, which can specify APN or VPDN, or manually select the network.

WLAN Security Mode

Open System

WPA-PSK

WPA2-PSK

WPAPSK

WPA2PSK (i.e. WPA-PSK and WPA2-PSK mixed mode)

WPA1WPA2 (i.e. WPA and WPA2 mixed mode)

Master Chip

MTK7628N

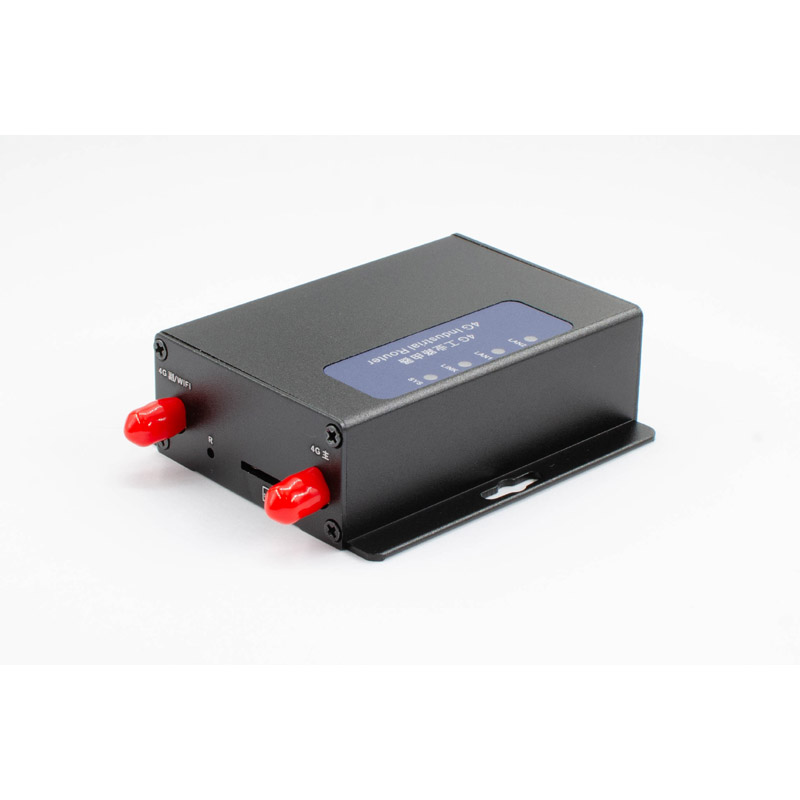

Antenna

SMA external rotation inner hole

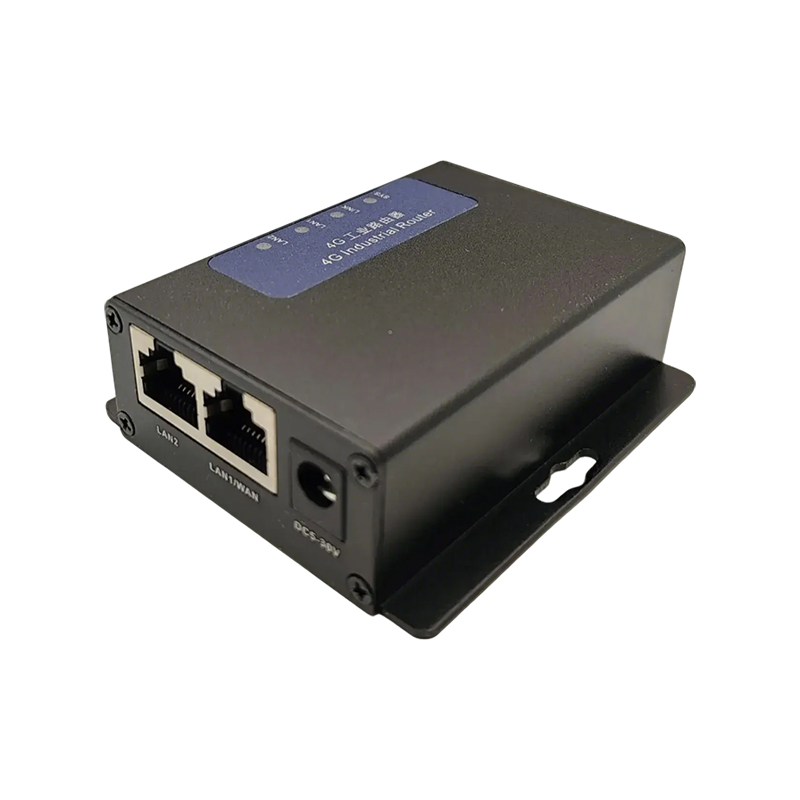

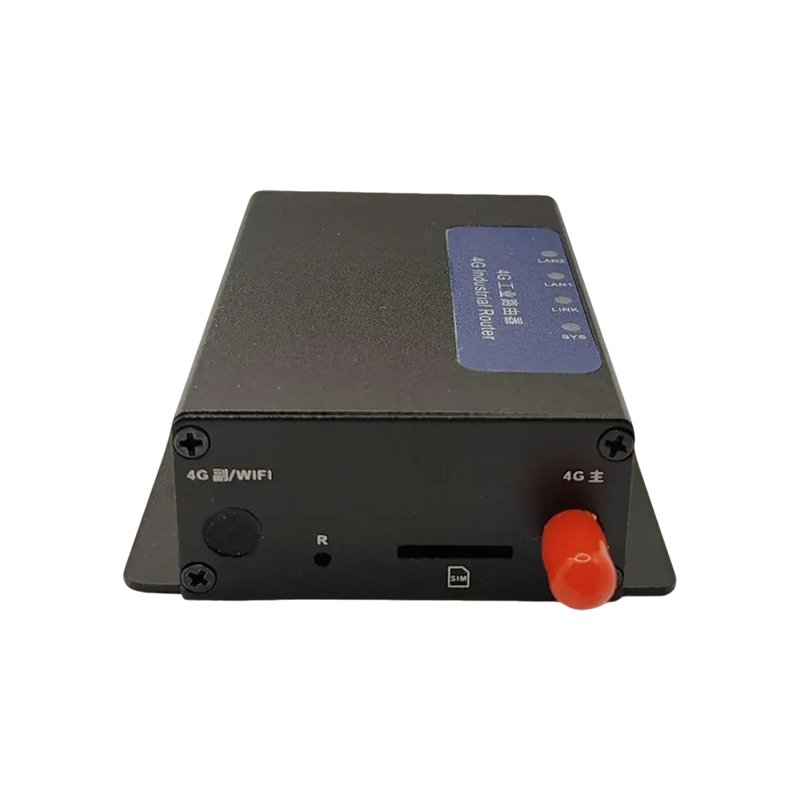

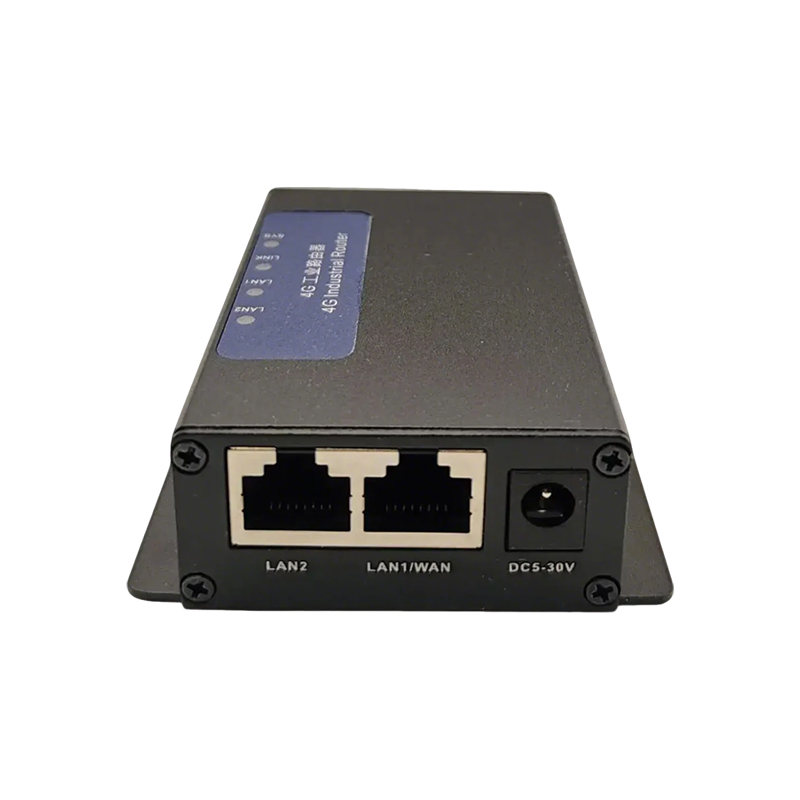

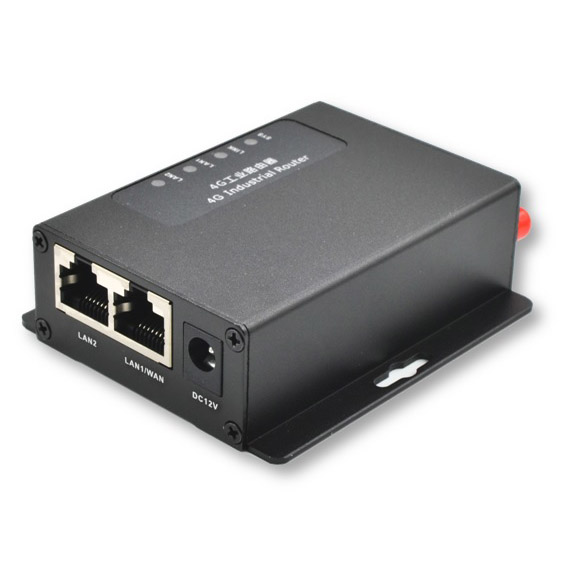

external interface

LAN ports: 2 (LAN1 is WAN/LAN adaptive)

SIM card slot: 1

Antenna interface: 2

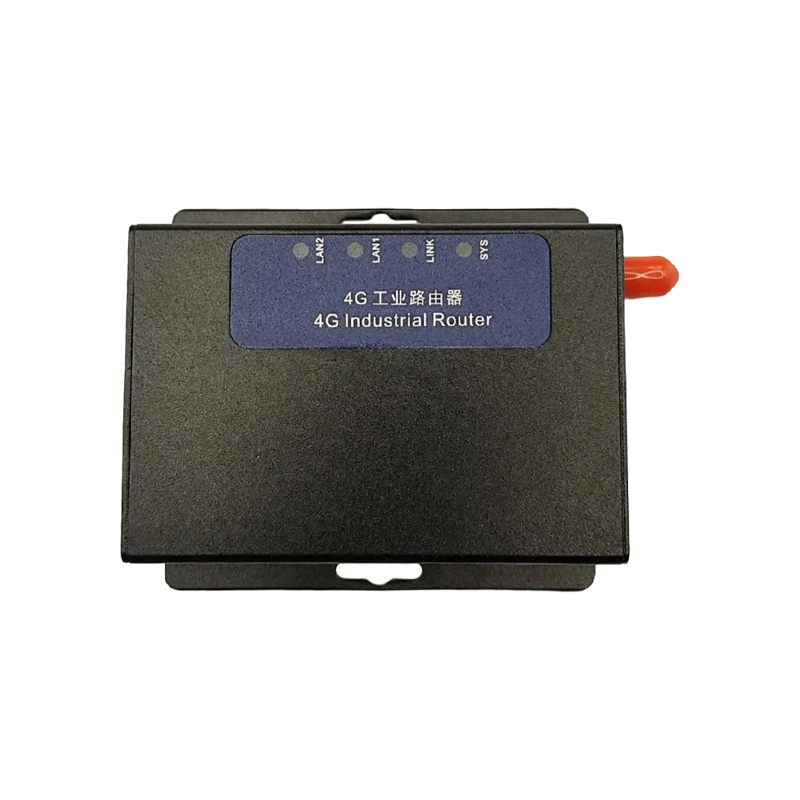

Indicator lights: 4

DC power interface: 1 DC2.1 power interface

Reset button: 1

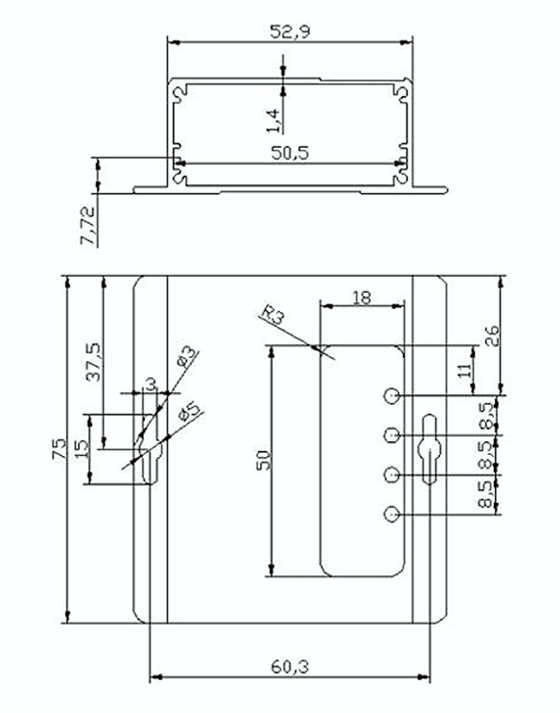

External dimensions

LWH：78*68*25mm (Excluding antenna interface)

Power supply

DC power：12V 1A

Power consumption (current)

Less than 400mA

work environment

Working temperature: -20 ° C~+75 ° C

Storage temperature: -30 ° C~+80 ° C

Humidity: 5%~95%, no condensation
