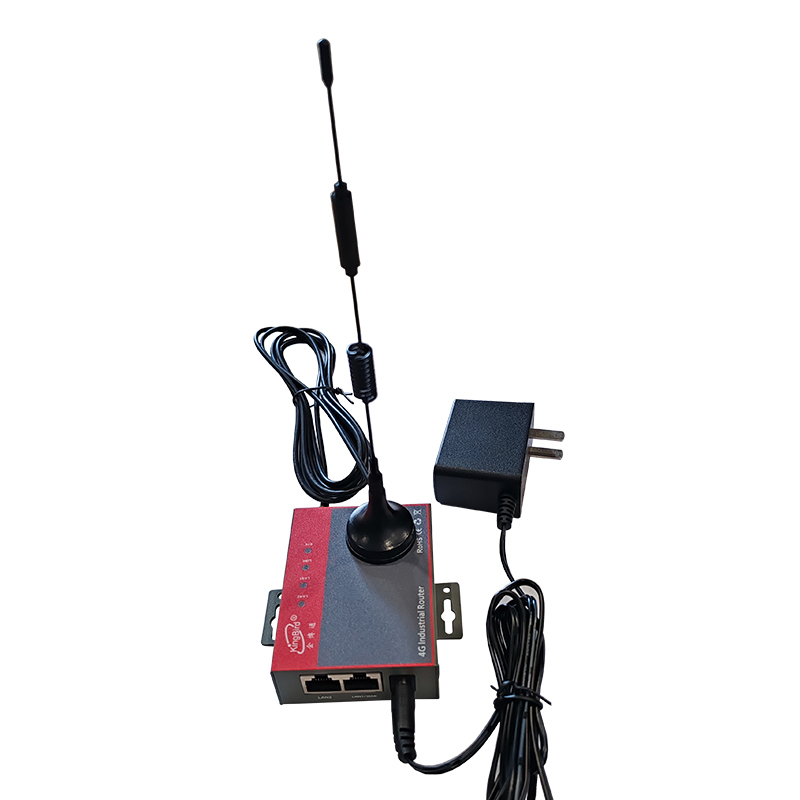

KB4100 4G Industrial Router

Features: 1, Adopt High Performance Industrial Grade 4g Communication Module;
2, Support 3g(Wcdma/Cdma/Td-Scdma), 4g(Fdd-Lte/Tdd-Lte);
3, Hardware And Software Watchdog Anti-Deadline Design, After The Router Is Disconnected From The Network, It Will Automatically Power Off And Restart To Ensure Stable And Reliable Operation Of The Equipment Outdoors;
4, Network Disconnection Automatic Detection, Dialing Failure Automatic Restart, Timed Restart And Other Functions;
5, Support a Variety Of Ddns Dynamic Domain Name Services;
6, Port Mapping, Dmz Hosting And Other Features;
7, Support Vpn Server Pptp Server,l2tp Server; Support Vpn Client Pptp Client, l2tp Client;;

Online consultation

Hotline:
+86-19925398188

Software functionality

Internet access	3g/4g dial-up internet dhcp/static ip/pppoe
Operating system requirements	Windows xp/7/10 , linux 2.6 and above Mac os : 10.3.7 and above
Internal network (lan)	Intranet settings: You can change the gateway address of the router Dhcp server : Supports up to 253 lan ip address assignments, or you can manually set a fixed ip address.

Hardware parameters and interface description

External network (wan)	Extranet settings: Supports multiple connection types: Ipoe (dynamic), ipoe (static), pppoe, pptp, l2tp. Ipv6 settings Port forwarding: Access information can be directed to a fixed port to achieve remote access to the lower computer function. Isolation zone (dmz): When the open port of the virtual server to be set up is uncertain, it can be set up as a dmz host. Dynamic domain name resolution (ddns): Allows you to access your internal network via a domain name on the web even if you don't have a static ip address.
Firewalls	General settings: Activate the firewall to protect the internal network from hackers Web site filtering: Prohibit access to certain web sites Mac access control: The ability to control the network access behavior of a specific network card address (mac). Web service filtering: Used to filter specific web services.
Usb applications	3g/4g modem:I.e. 3g/4g settings, can be set to specify apn or vpdn, or manually select the network.
Wlan security mode	Open system Wpa-psk Wpa2-psk Wpapsk Wpa2psk (i.e. Wpa-psk and wpa2-psk mixed mode) Wpa1wpa2 (i.e. Wpa and wpa2 mixed mode)

Main chip	Mtk7628n
Connection with high-ranking officials	Sma external rotation bore

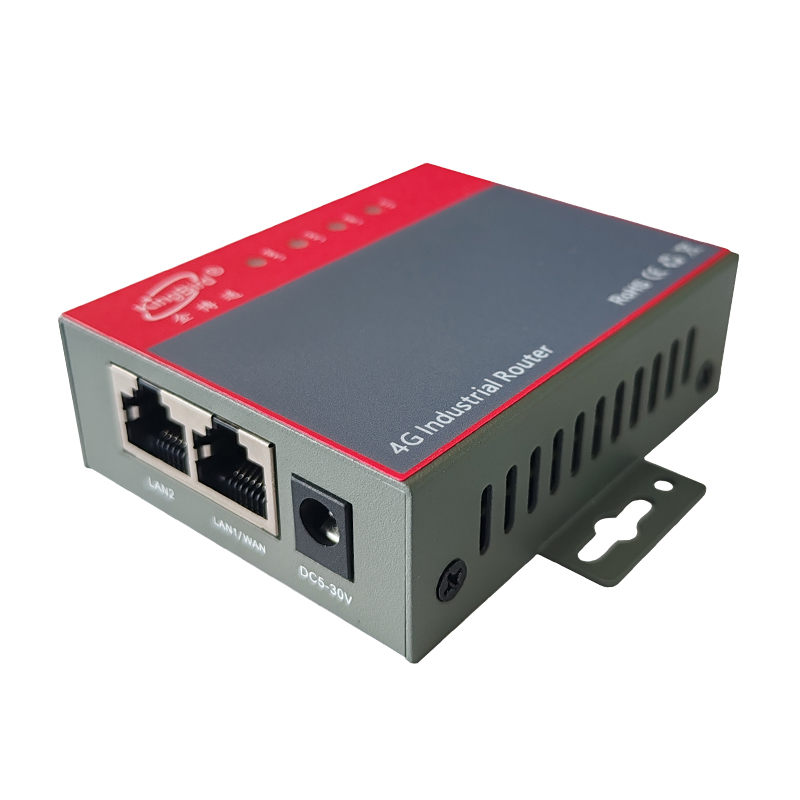

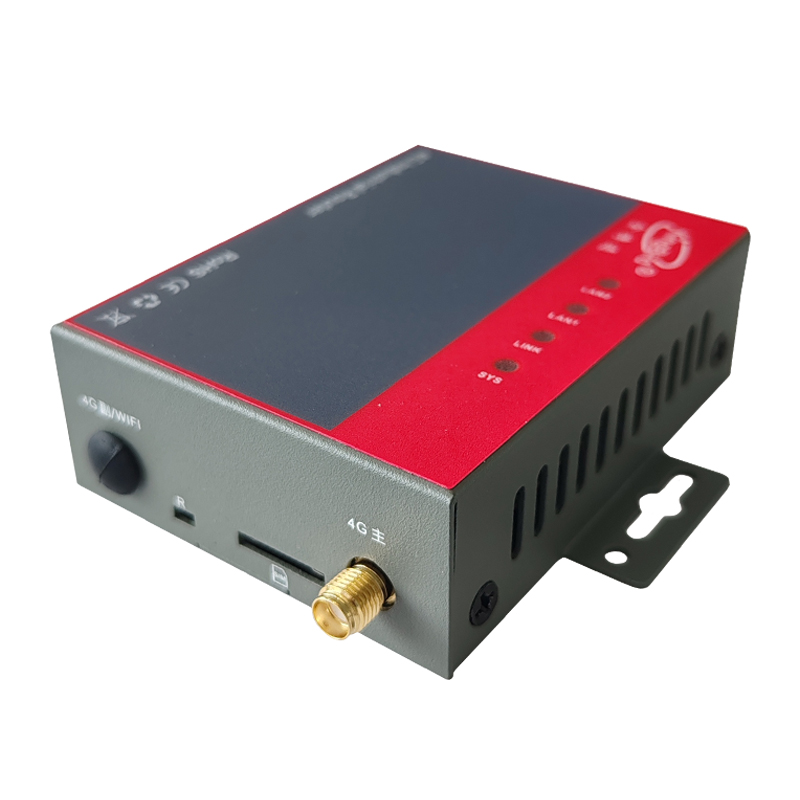

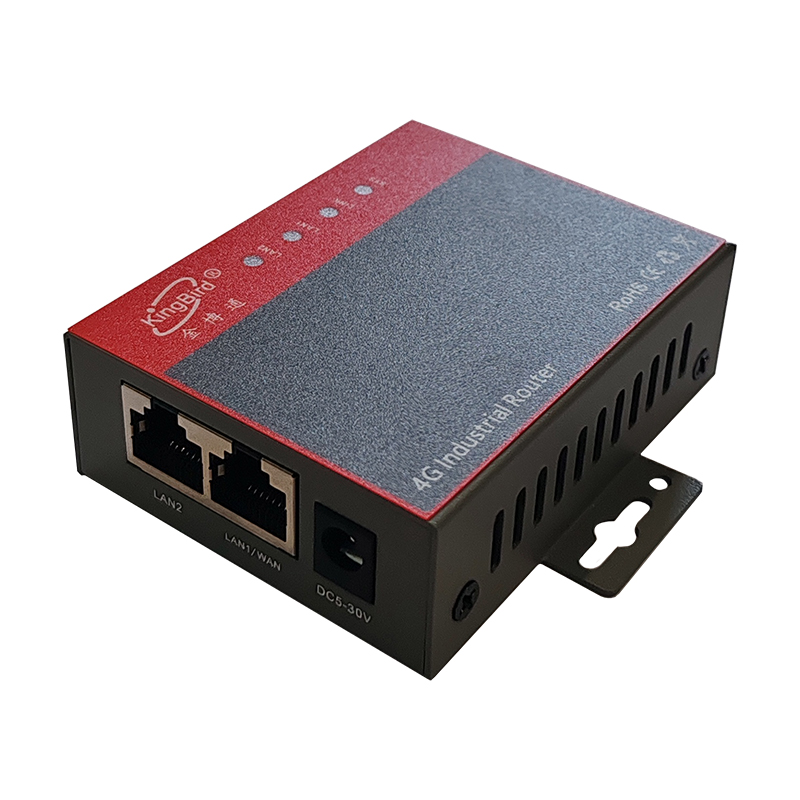

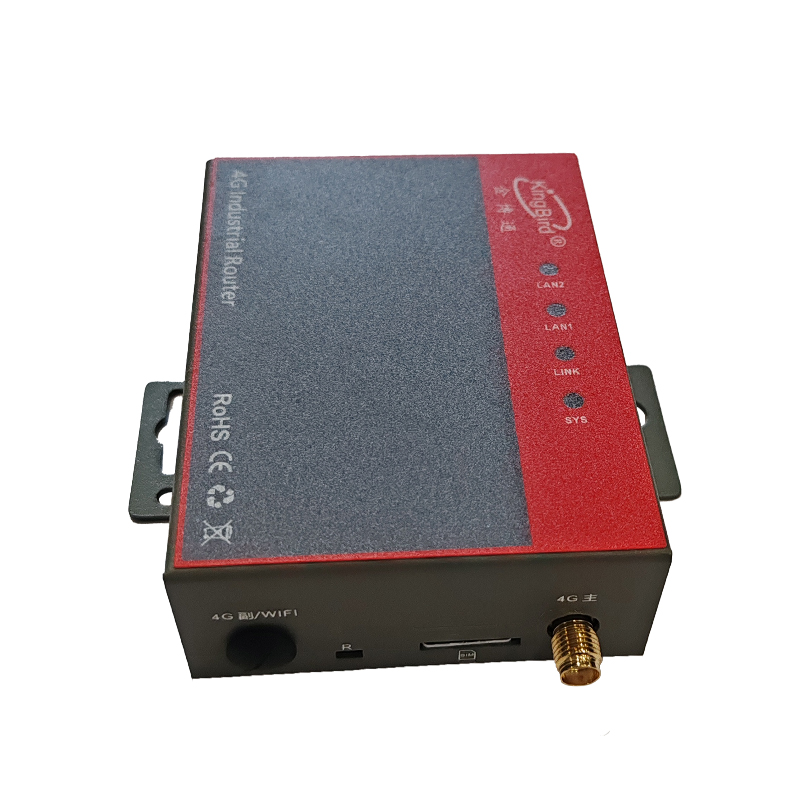

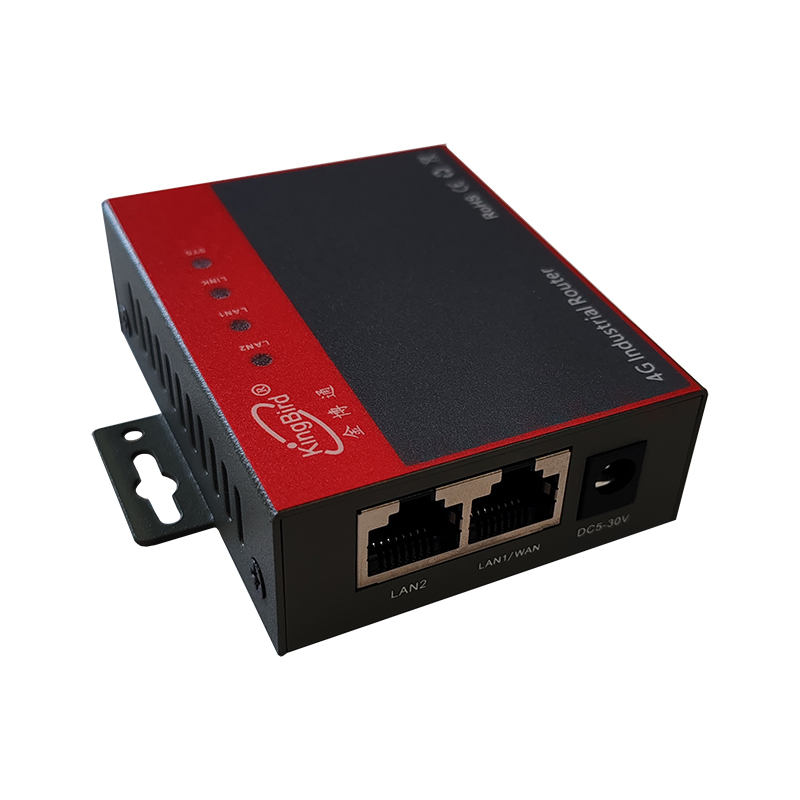

External interface	Lan ports: 2 (lan1 is wan/lan adaptive) sim card slot: 1 Antenna interface: 2 Indicator lights: 4 dc power supply interface: 1 dc2.1 power interface Reset key: 1

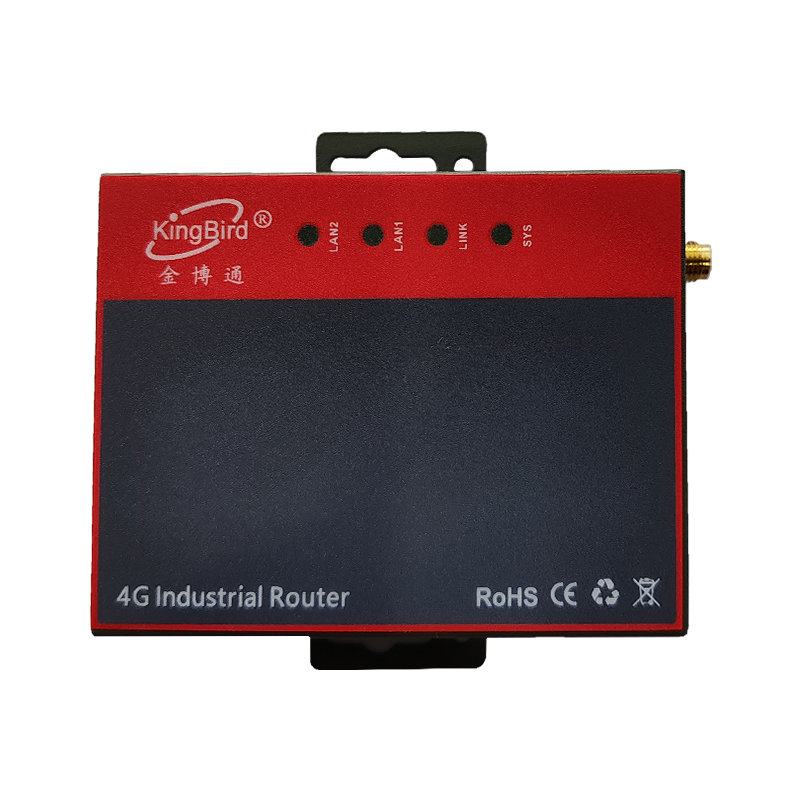

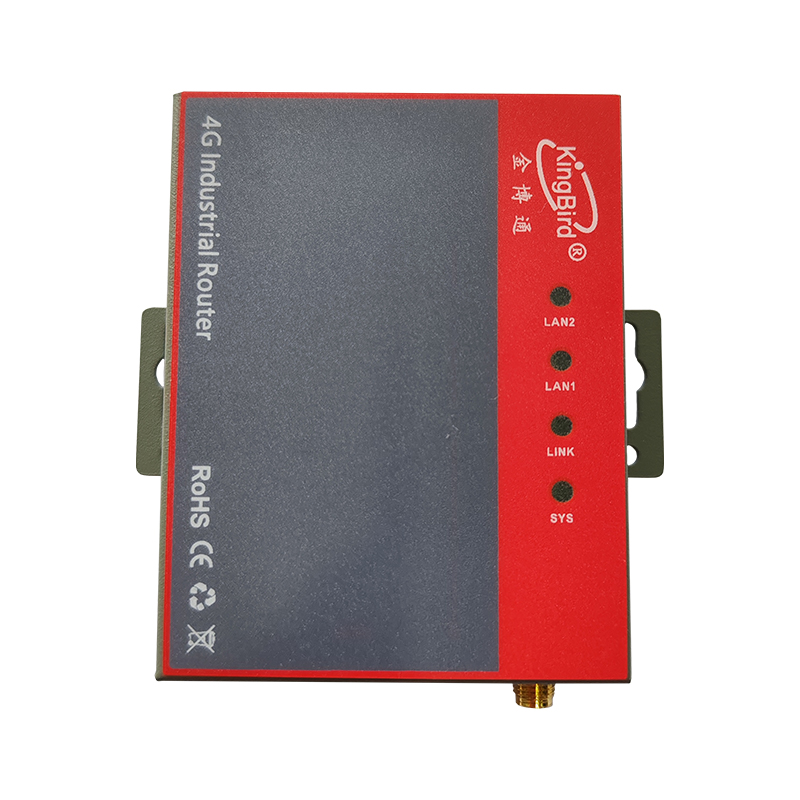

Indicator light description

Overall dimensions	Length, width and height: 786825mm (without antenna connector)
Electric power source	Dc power supply: 12v 1a
Power consumption (current)	Less than 400ma
Working environment	Operating temperature:-20°c ~ +75°c Storage temperature:-30°c ~ +80°c Humidity: 5%~95%, non-condensing

KB4100 4G Industrial Router
